AUO

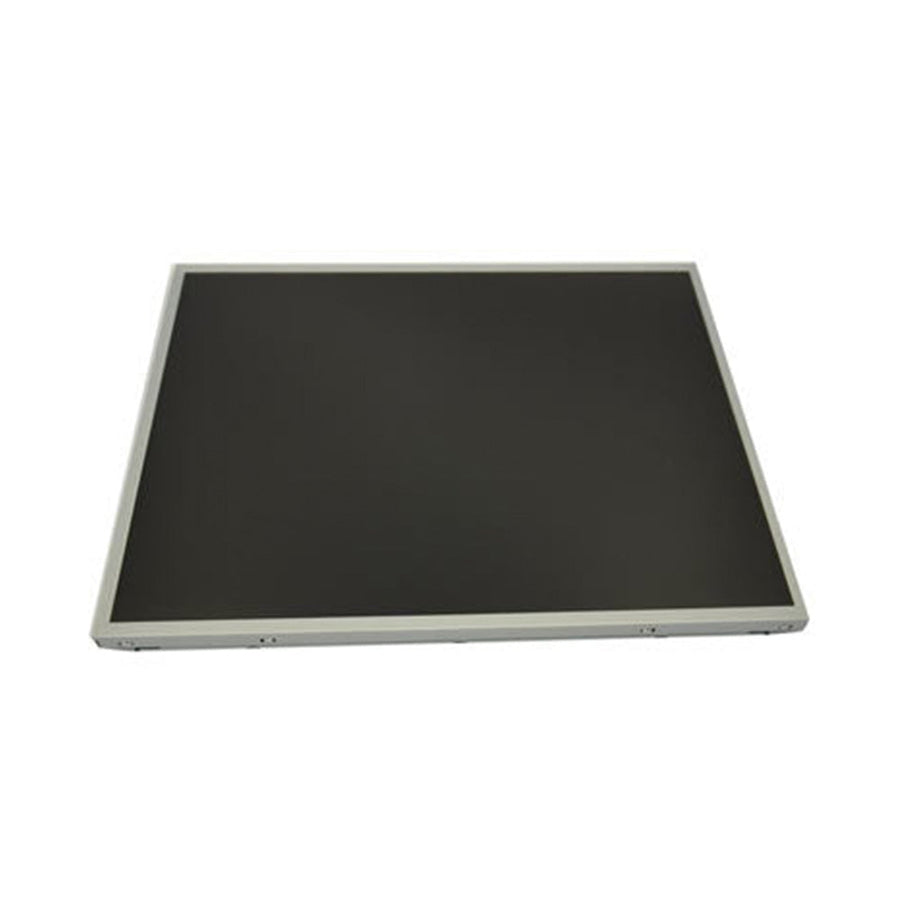

AUO G190EG01 V1

$157.13
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G190EG01 V1
  • Brand:AUO
  • Size:19 inch
  • Resolution:1280*1024
  • Brightness:350 cd/m²
  • Viewing angle:85/85/80/80
  • Interface:LVDS (2 ch, 8-bit)
  • CR:1000 : 1
  • Operating Temp.: 0 ~ 50 °C
  • Parameters
Manufacturer AUO
Model Name G190EG01 V1
Screen Size 19
Pixel Number 1280(RGB)×1024   [SXGA]
Active Area(mm) 376.32×301.056 mm (H×V)
Outline(mm) 396×324×18.3 mm(H×V×D)
Bezel Area(mm) 380.32×305.06 mm (H×V)
Treatment Hard coating (3H)
Luminance 350 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (CR≥10)
Left/Right/UP/Down
Response 3.5/1.5 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white,Transmissive
Color Depth 16.7M , 72% NTSC
Backlight 50K hours,with LED Driver
Net Weight 1.67Kgs (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: 0 ~ 50 °C
Operating Temp.: -20~60°C
Package

9 pcs/ carton


AUO 19 inch LCD screen G190EG01 V1, with 350 luminance and 0-50°C operating temp.

G190EG01 V1 has standard 1280*1024 resolution.

This screen has 50000 hours lifetime of backlight , can support long term operating.
