AUO

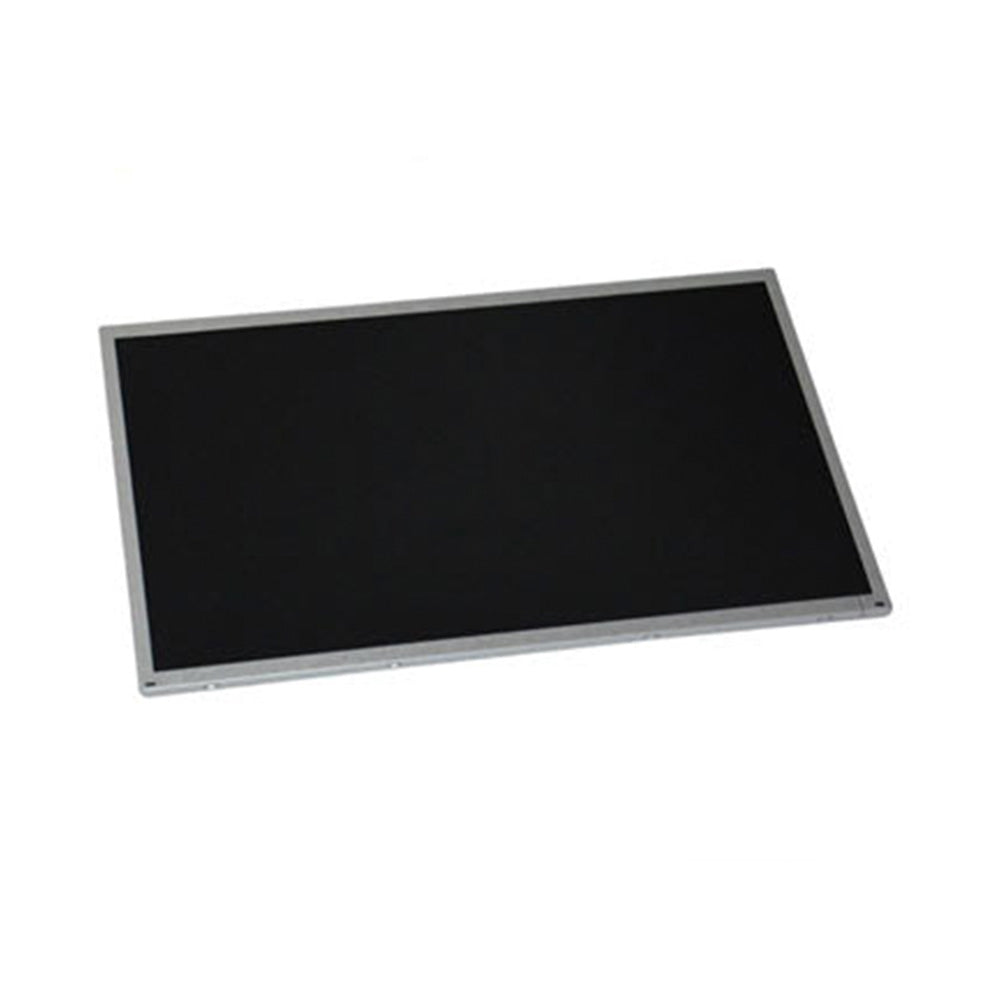

AUO G156XTN01.0

$152.80
  • Module No:G156XTN01.0
  • Brand:AUO
  • Size:15.6 inch
  • Resolution:1366*768
  • Brightness:400 cd/m²
  • Viewing angle:80/80/60/70
  • Interface:LVDS (1 ch, 8-bit) ,30 pins
  • CR:500:1
  • Operating Temp.: -30 ~ 85°C



  • Parameters

Manufacturer

AUO

Model Name

G156XTN01.0

Screen Size

15.6

Pixel Number

1366(RGB)×768 , WXGA

Active Area(mm)

344.232(H)×193.536mm (H×V)

Outline(mm)

363.8×215.9×9.6mm(H×V×D)

Bezel Area(mm)

344.232×193.536 mm (H×V)

Treatment

Hard coating (3H)

Luminance

400 cd/m² (Typ.)

Contrast Ratio

800 : 1 (Typ.) (TM)

Viewing Angle

80/80/60/70(CR≥10)

Left/Right/UP/Down

Response

10 (Typ.)(Tr+Td) ms

Work Mode

TN, Normally white,Transmissive

Color Depth

262K/16.2M , 62% NTSC

Backlight

50K hours,with LED Driver

Net Weight

860g (Typ.)

Touchscreen

without

Signal Type/interface Type

LVDS (1 ch,  8bit) , 30 pins

Voltage Supply

3.3V (Typ./Max.)

Max. Ratings

Storage Temp.: -30 ~ 85 °C

Operating Temp.: -30 ~ 85 °C

Package

16 pcs/ carton


AUO 15.6 inch G156XTN01.0 with 366*768 LCD display.

With -30-85℃ operating temperature for outdoor.

There is CTP/RTP touch panels for this 15.6 inch LCD.

Backlight lifetime 50K hours.
