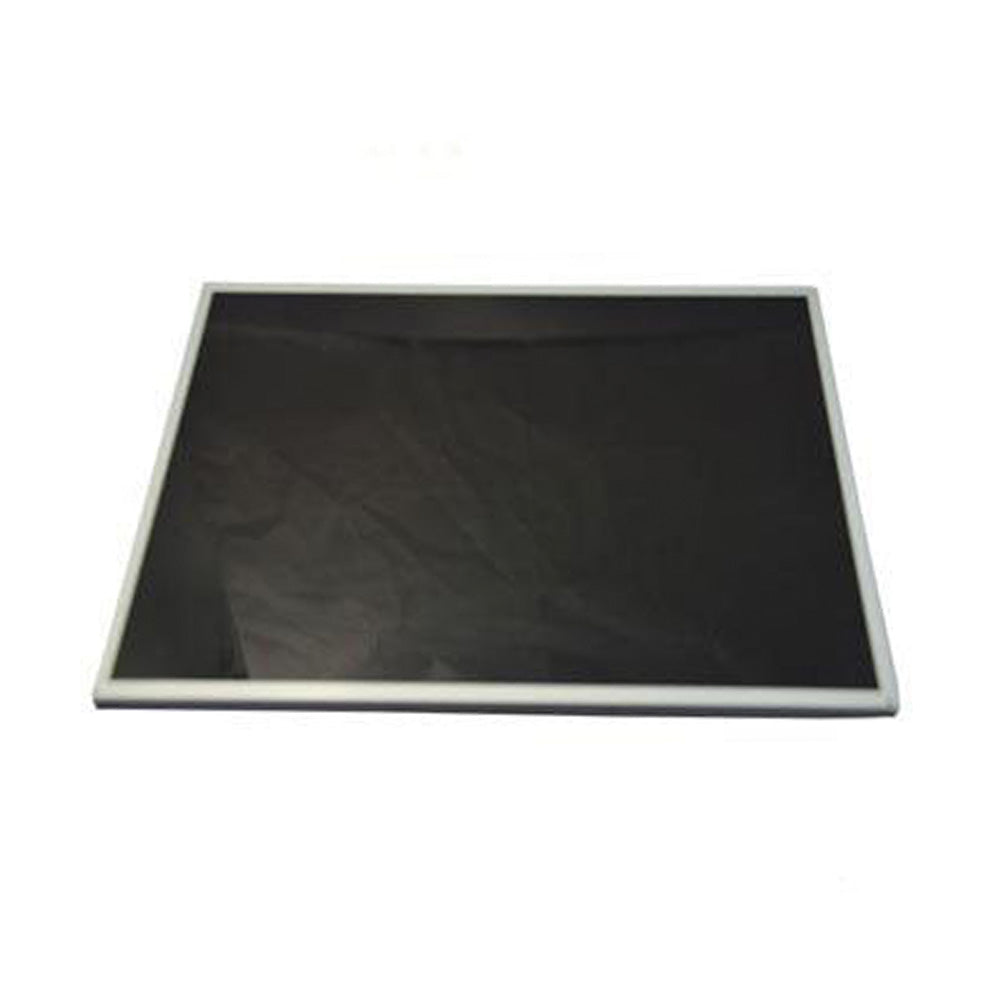

AUO

AUO G150XAN03.0

$258.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G150XAN03.0 
  • Brand:AUO
  • Size:15 inch
  • Resolution:1024*768
  • Brightness:400 nit
  • Viewing angle:89/89/89/89
  • Interface:eDP (1 Lane) , 30 pins
  • CR:1000 : 1
  • Operating Temp.: -20 ~ 70 °C
  • Parameters
Manufacturer AUO
Model Name G150XAN03.0 
Screen Size 15
Pixel Number 1024(RGB)×768  [XGA]
Active Area(mm) 304.128×228.096mm (H×V)
Outline(mm) 314.13 × 245.3 × 6.8 mm(H×V×D)
Bezel Area(mm) 309.9x 236.3 mm(H×V)
Treatment Anti-glare, Hardness 3H
Luminance 400 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode AHVA, Normally black,Transmissive
Color Depth 262K/16.2M , 60% NTSC
Backlight 50K hours,with LED Driver
Net Weight 920g (Typ.)
Touchscreen without
Signal Type/interface Type eDP (1 Lane)  , 30 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~ 70 °C
Operating Temp.: -20 ~70°C
Package

15 pcs/ carton



    AUO 15inch  G150XAN03.0 is a 1024*768 resolution LCD display.

    With high brightness of 400 nits, mainly for outdoor applications.

    IPS 15inch panel, with full viewing angle, 50K hours.

    With LED driver embedded.
