AUO

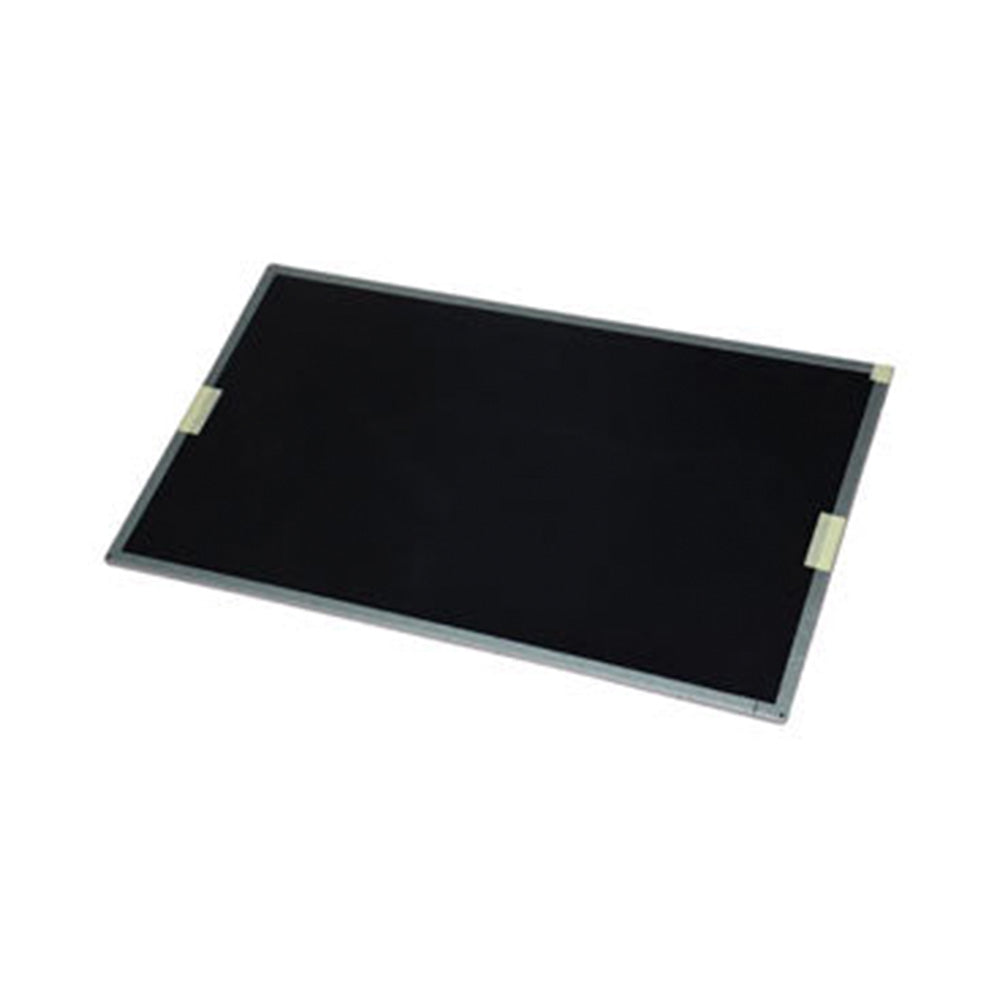

AUO G140XTN01.0

$104.80
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G140XTN01.0
  • Brand:AUO
  • Size:14 inch
  • Resolution:1366*768
  • Brightness:220 cd/m²
  • Viewing angle:45/45/15/35
  • Interface:eDP (1 Lane) , 30 pins
  • CR:400 : 1
  • Operating Temp.: 0-50℃
  • Parameters
Manufacturer AUO
Model Name G140XTN01.0
Screen Size 14
Pixel Number 1366×768 , WXGA
Active Area(mm) 309.399×173.952 mm (H×V)
Outline(mm) 320.4×205.1×3 mm mm (H×V×D)
Bezel Area(mm) 245.76×184.32 mm
Treatment Hard coating
Luminance 220 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (TM)
Viewing Angle 45/45/15/35(CR≥10)
Left/Right/UP/Down
Response 8 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 262K , 45% NTSC
Backlight 10K hours,without LED Driver
Net Weight 270g (Typ.)
Touchscreen without
Signal Type/interface Type eDP (1 Lane) , 30 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~60 °C
Operating Temp.: -0 ~50 °C
Package 40 pcs/ carton

    AUO 14 inch LCD screen G140XTN01.0, with 220 luminance and -0-50°C operating temp.

    G140XTN01.0 has standard 1366*768 resolution.

    This screen has 15000 hrs backlight lifetime.
