AUO

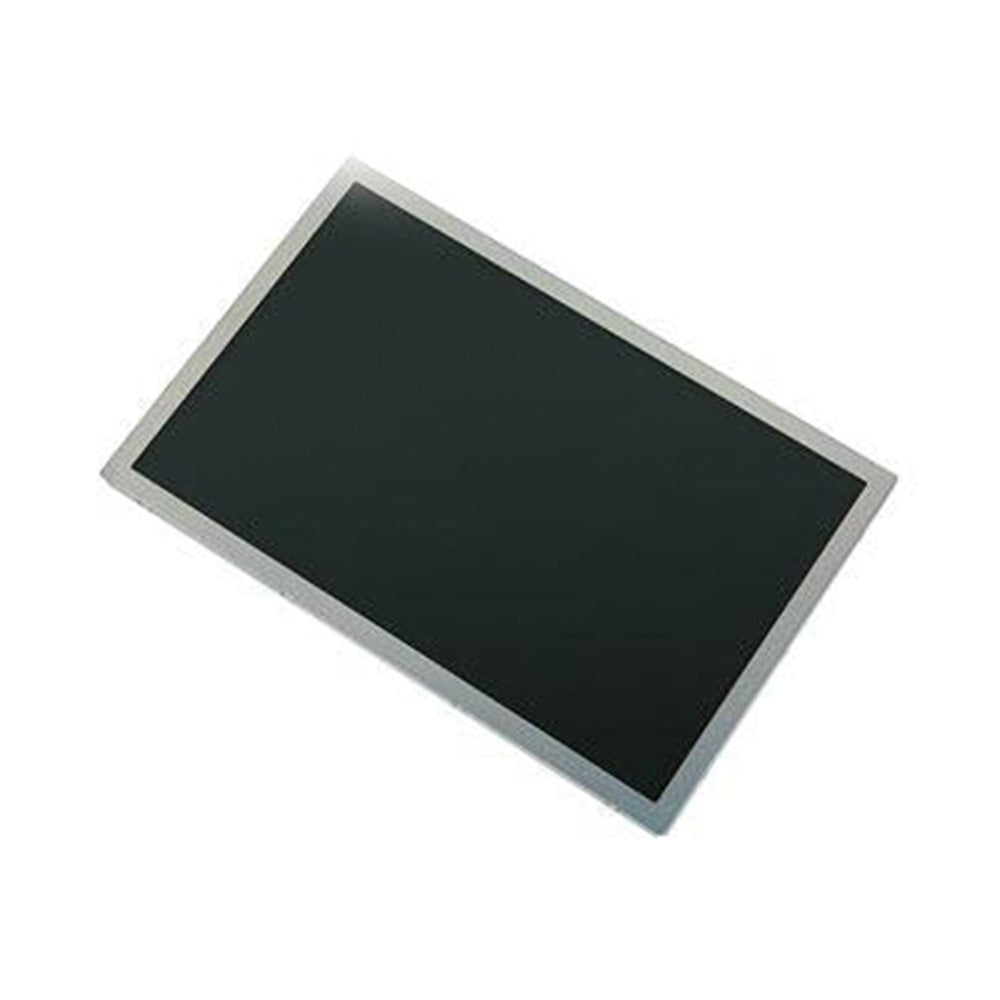

AUO G140HAN01.1

$155.84
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G140HAN01.1
  • Brand:AUO
  • Size:14 inch
  • Resolution:1920*1080
  • Brightness:400 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:eDP (2 Lane) , 30 pins
  • CR:800 : 1
  • Operating Temp.: 0-50℃



  • Parameters
Manufacturer AUO
Model Name G140HAN01.1 
Screen Size 14
Pixel Number 1920(RGB)×1080   [FHD]
Active Area(mm) 309.14×173.89  mm (H×V)
Outline(mm) 319×190.76×8.3 mm (H×V×D)
Bezel Area(mm)
Treatment Hard coating
Luminance 400 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 15/10 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 16.2M , 72% NTSC
Backlight 50K hours,without LED Driver
Net Weight 580g (Typ.)
Touchscreen without
Signal Type/interface Type eDP (2 Lane) , 30 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~60 °C
Operating Temp.: -0 ~50 °C
Package 40 pcs/ carton

    AUO G140HAN01.1  14 inch LCD screen, with 400 luminance and 0-50°C operating temp.

    G140HAN01.1 has standard 1920*1080 resolution with full-view angle.

    Has 50000 hrs backlight lifetime.
