AUO

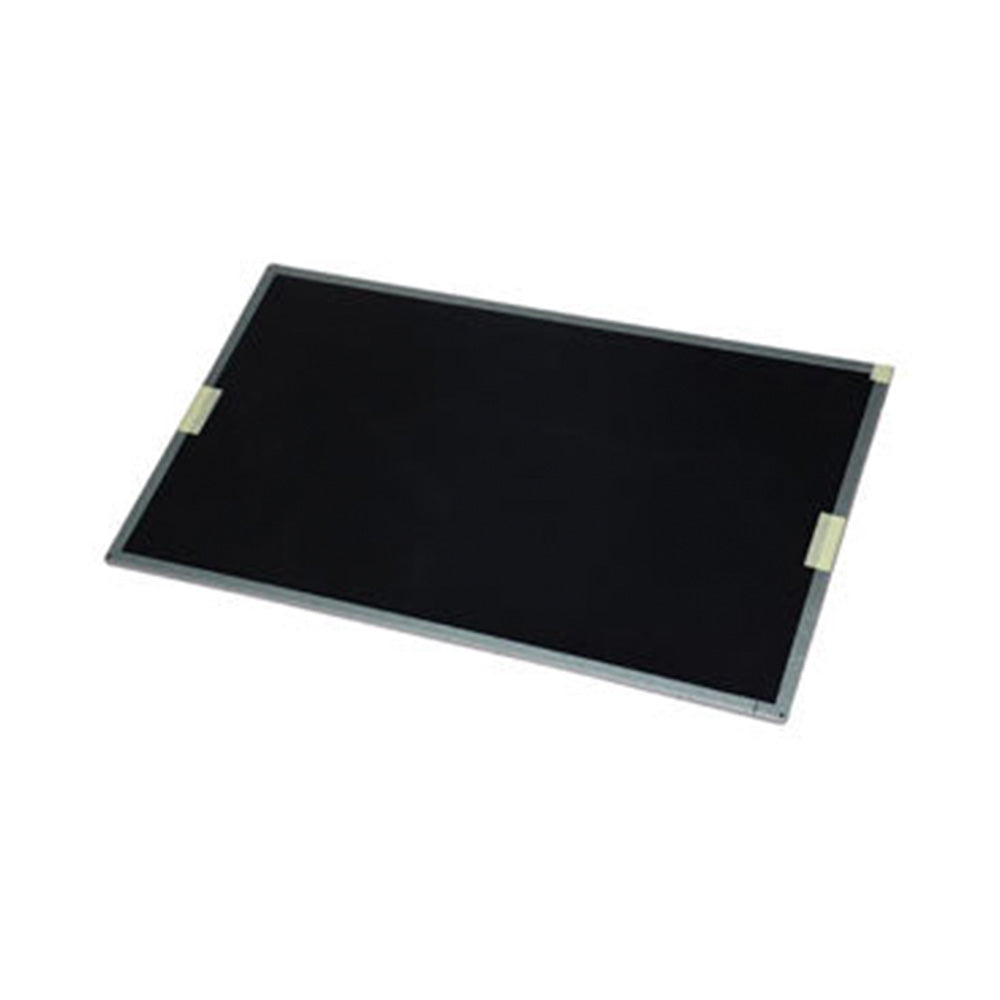

AUO G133XTN01.0

$116.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G133XTN01.0
  • Brand:AUO
  • Size:13.3 inch
  • Resolution:1366*768
  • Brightness:300 cd/m²
  • Viewing angle:70/70/50/60
  • Interface:LVDS
  • CR:400:1
  • Operating Temp.: -20 ~ 60 °C
  • Parameters
Manufacturer AUO
Model Name G133XTN01.0
Screen Size 13.3
Pixel Number 1366(RGB)×768 , WXGA
Active Area(mm) 293.42 x 164.97mm (H×V)
Outline(mm) 306.3 x 197.2 x 3.0mm(H×V×D)
Bezel Area(mm)
Treatment Anti-glare, Hardness 3H
Luminance 300 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (TM)
Viewing Angle 70/70/50/60(CR≥10)
Left/Right/UP/Down
Response 8 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white,Transmissive
Color Depth 262K/16.2M , 60% NTSC
Backlight 20K hours,with LED Driver
Net Weight 255g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8bit) , 20 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~ 60 °C
Operating Temp.: -30 ~70°C
Package

45 pcs/ carton


AUO 13.3inch LCD screen G133XTN01.0, with 300 luminance and -20-60°C operating temp.

G133XTN01.0 has standard 1366*768 resolution.

20000 hours backlight lifetime.

G133XTN01.0 often used in industrial devices.
