AUO

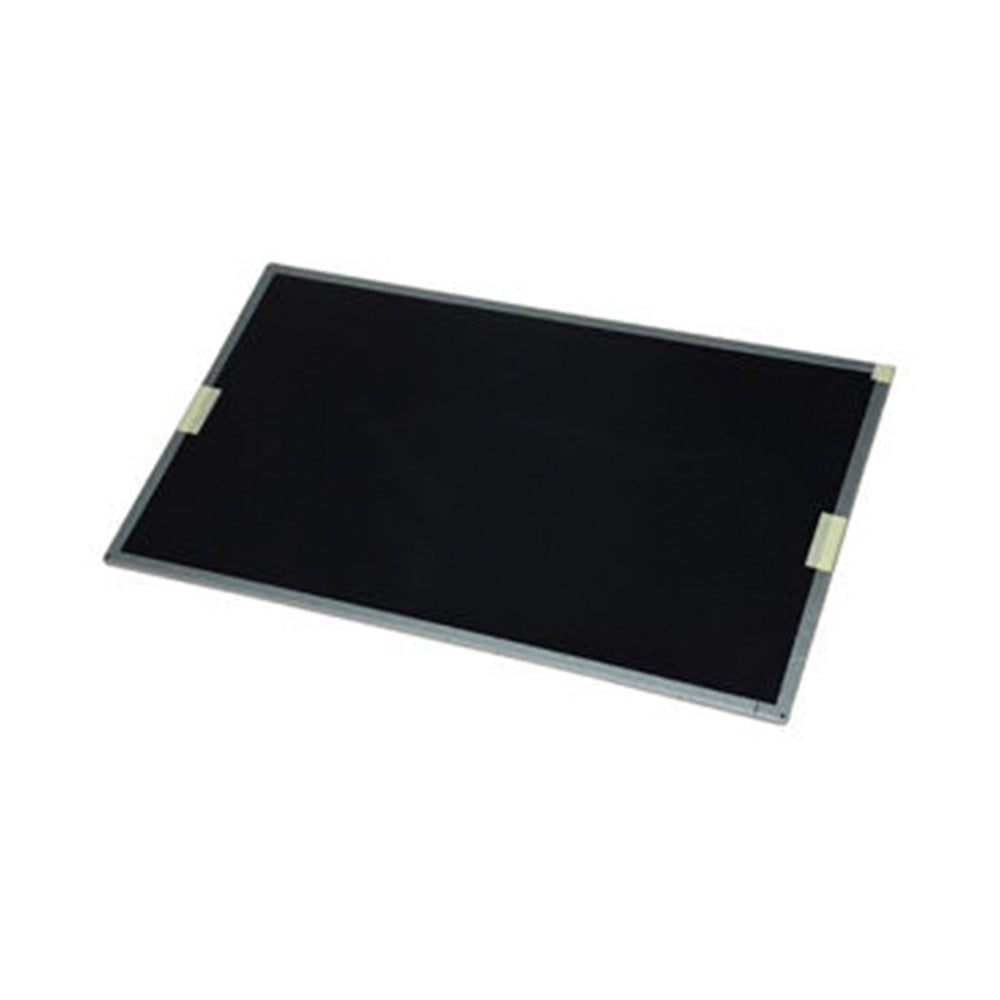

AUO G133HAN01.1

$155.84
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G133HAN01.1
  • Brand:AUO
  • Size:13.3 inch
  • Resolution:1920*1080
  • Brightness:400 cd/m²
  • Viewing angle:85/85/85/85
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:800 : 1
  • Operating Temp.: -20 ~ 70 °C
  • Parameters
Manufacturer AUO
Model Name G133HAN01.1
Screen Size 13.3
Pixel Number 1920(RGB)×1080 , FHD
Active Area(mm) 293.472×165.078mm (H×V)
Outline(mm) 309.7(W)×184.1(H)×10.1mm(H×V×D)
Bezel Area(mm) 295.07(W)×166.68 mm (H×V)
Treatment Hard coating (3H)
Luminance 40cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10)
Left/Right/UP/Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode AHVA, Normally black Transmissive
Color Depth 16.7M , 90% NTSC
Backlight 50K hours,with LED Driver
Net Weight 500g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8bit) , 20 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~ 70 °C
Operating Temp.: -20 ~70 °C
Package 20 pcs/ carton


AUO 13.3 inch LCD screen G133HAN01.1, with 400 luminance and -20-70°C operating temp.

Cheaper solution G133HAN01.1 has standard 1920*1080 resolution,it also has full-view angle.

This screen has 50000 hours lifetime of backlight , can support long term operating.

G133HAN01.1 has good viewing angle ,often be used in monitors.
