AUO

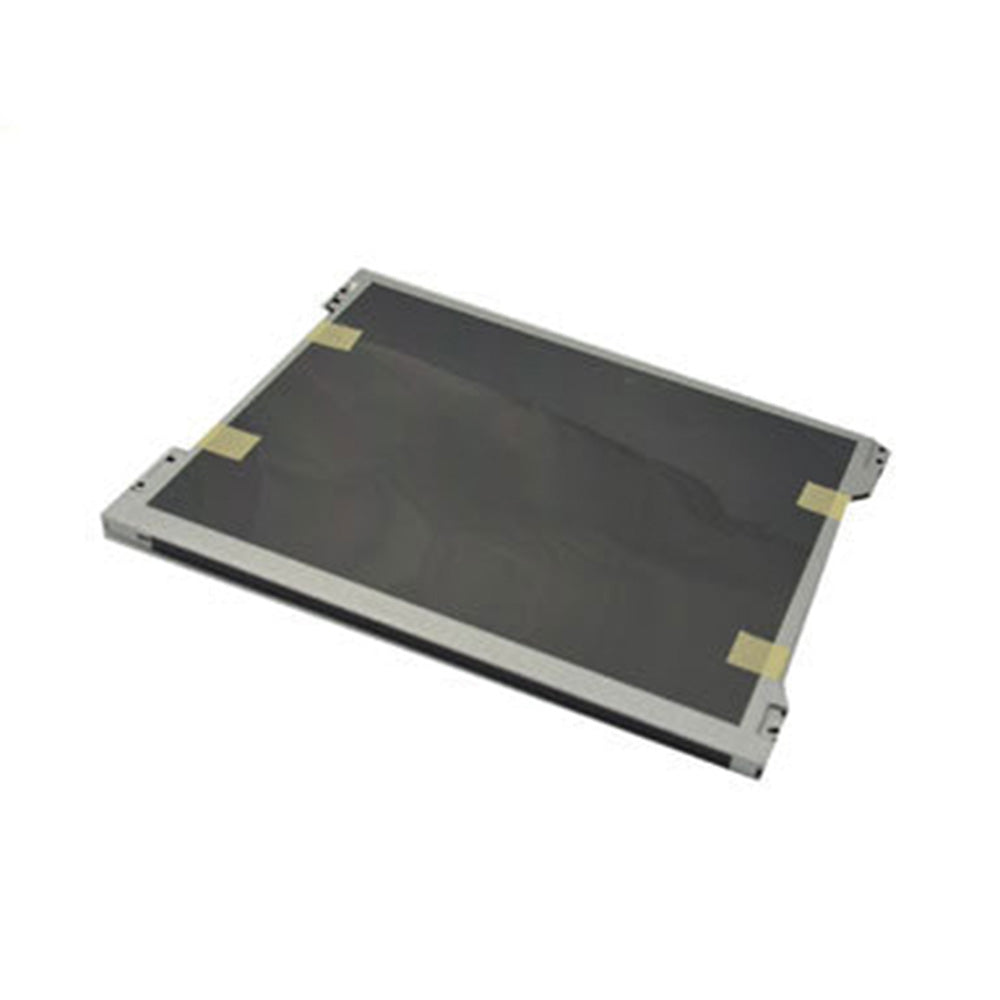

AUO G121XTN01.0

$156.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G121XTN01.0
  • Brand:AUO
  • Size:12.1 inch
  • Resolution:1024*768
  • Brightness:500 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)(CR≥10)
  • Interface:20 pins LVDS (1 ch, 6/8-bit)
  • CR:700:1
  • Operating Temp.: -30 ~ 85°C
  • Parameters

Manufacturer

AUO

Model Name

G121XTN01.0

Screen Size

12.1

Pixel Number

1024×768 , XGA

Active Area(mm)

245.76×184.32 mm (H×V)

Outline(mm)

279×209×9 mm (H×V×D)

Bezel Area(mm)

245.76×184.32 mm

Treatment

Hard coating

Luminance

500 cd/m² (Typ.)

Contrast Ratio

700 : 1 (Typ.) (TM)

Viewing Angle

80/80/80/80(CR≥10)

Left/Right/UP/Down

Response

25 (Typ.)(Tr+Td) ms

Work Mode

MVA, Normally black, Transmissive

Color Depth

262K , 72% NTSC

Backlight

50K hours,without LED Driver

Net Weight

495g (Typ.)

Touchscreen

without

Signal Type/interface Type

LVDS (1 ch, 6/8-bit) , 40 pins

Voltage Supply

3.3V (Typ./Max.)

Max. Ratings

Storage Temp.: -30 ~85 °C

Operating Temp.: -30 ~85 °C

Package

20 pcs/ carton



AUO 12.1 inch LCD screen G121XTN01.0, with 500 luminance and -30-85°C operating temp.

G121XTN01.0 has standard 1024*768 resolution, it also has full-view angle.

50000 hrs backlight lifetime.
