AUO

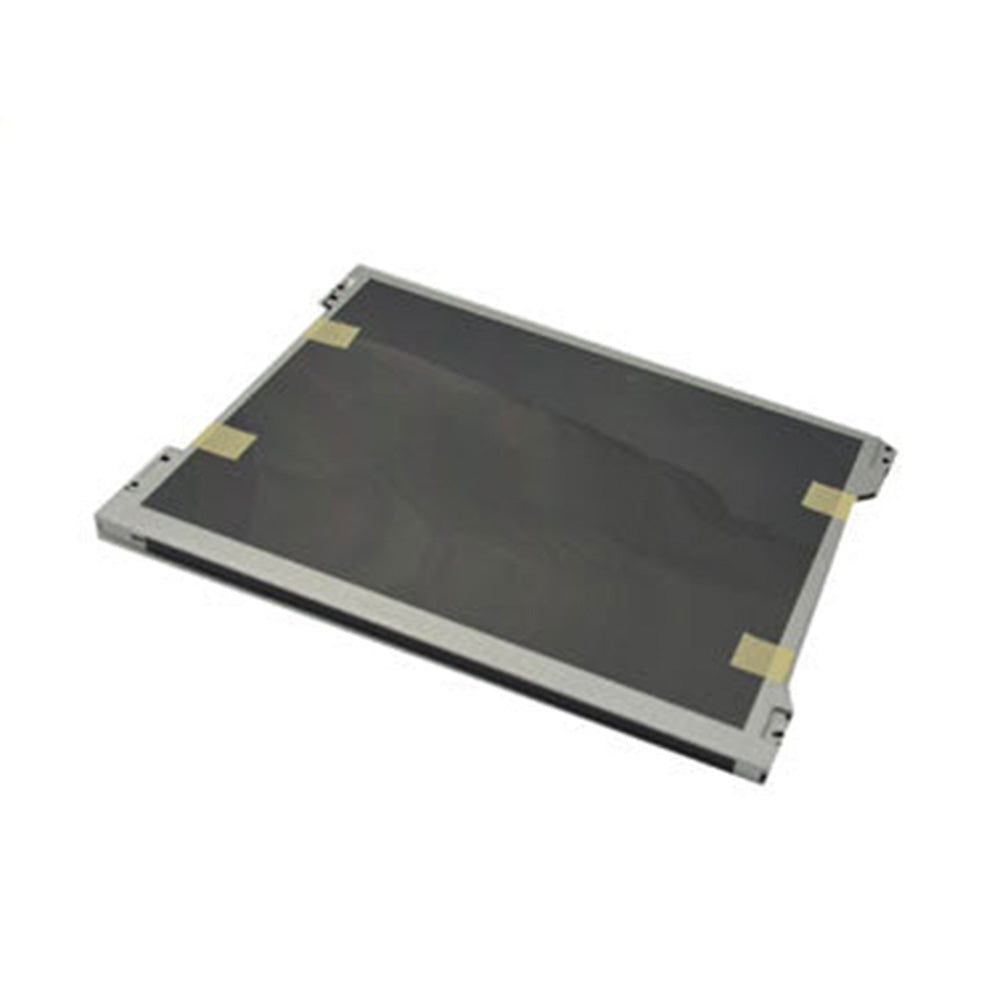

AUO G121XN01 V0

$108.78
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G121XN01 V0
  • Brand:AUO
  • Size:12.1
  • Resolution:1024*768
  • Brightness:500 cd/m²
  • Viewing angle:80/80/80/80
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:700 : 1
  • Operating Temp.: -30 ~ 85 °C
  • Parameters
Manufacturer AUO
Model Name G121XN01 V0
Screen Size 12.1
Pixel Number 1024×768 [XGA]
Active Area(mm) 245.76 × 184.32mm (H×V)
Outline(mm) 279 × 209 × 9 mm (H×V×D)
Bezel Area(mm) 250.8 × 189.4 mm (H×V)
Treatment Hard coating (3H)
Luminance 500 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80(CR≥10)
Left/Right/UP/Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white Transmissive
Color Depth 262K/16.2M , 70% NTSC
Backlight 50K hours,with LED Driver
Net Weight 495g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8bit) , 20 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 85 °C
Operating Temp.: -30 ~85 °C
Package 20 pcs/ carton


AUO 12.1 inch LCD screen G121XVN01 V0, with 500 luminance and -30-85°C operating temp.

G121XVN01 V0 has standard 1024*768 resolution, it also has full-view angle.

This screen has 50000 hours lifetime of backlight, can support long term operating.

G121XN01 V0 has good viewing angle ,often be used in monitors and medical devices.
