AUO

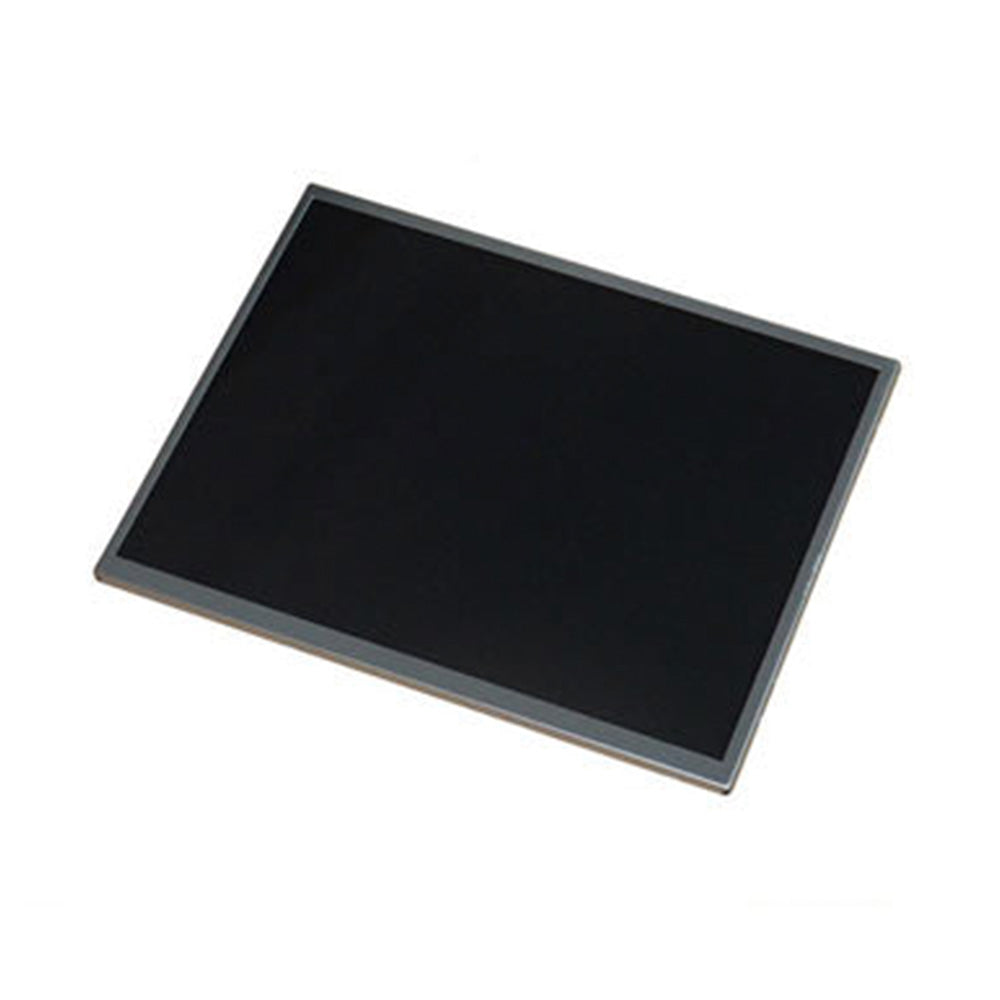

AUO G121STN02.0

$91.96
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G121STN02.0
  • Brand:AUO
  • Size:12.1 inch
  • Resolution:1024*768
  • Brightness:500 nit
  • Viewing angle:80/80/65/75
  • Interface:LVDS
  • CR:800:1
  • Operating Temp.: -30-85℃
  • Parameters
Manufacturer AUO
Model Name G121STN02.
Screen Size 12.1
Pixel Number 800*600 , SVGA
Active Area(mm) 246×184.5 mm (H×V)
Outline(mm) 260.5×203×9 mm (H×V×D)
Bezel Area(mm) 249×187.5 mm (H×V)
Treatment Hard coating
Luminance 500 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 80/80/65/75(CR≥10)
Left/Right/UP/Down
Response 25/10 (Typ.)(Tr/Td) ms
Work Mode TN,Normally white, Transmissive
Color Depth 262K , 53% NTSC
Backlight 50K hours,with LED Driver
Net Weight 600g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~85 °C
Operating Temp.: -30 ~85 °C
Package 20 pcs/ carton


AUO 12.1 inch LCD screen G121STN02.0, with 500 luminance and -30-85°C operating temp.

G121STN02.0 has standard 800*600 resolution.

50000 hours backlight lifetime.
