AUO

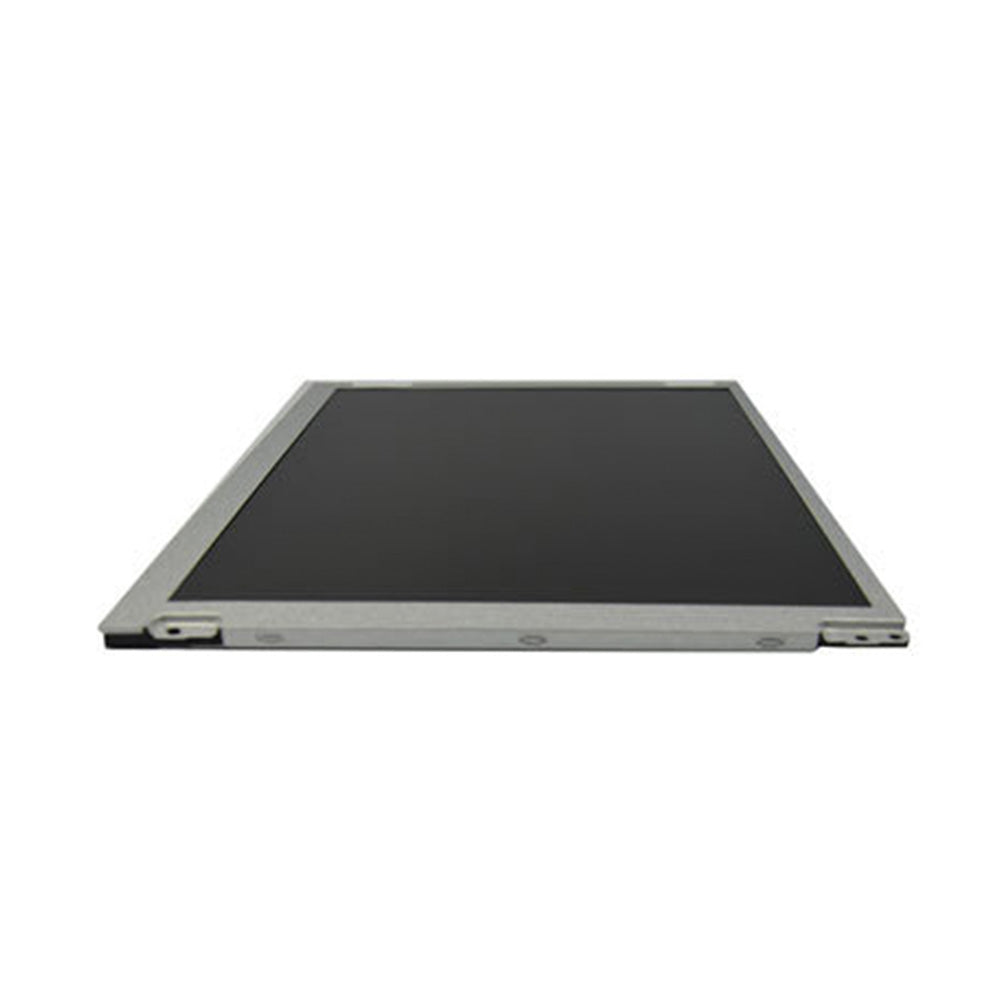

AUO G121SN01 V4

$99.68
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G121SN01 V4
  • Brand:AUO
  • Size:12.1 inch
  • Resolution:800*600
  • Brightness:450 cd/m²
  • Viewing angle:80/80/65/75
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:700 : 1
  • Operating Temp.: -30 ~ 85 °C
  • Parameters
Manufacturer AUO
Model Name G121SN01 V4
Screen Size 12.1
Pixel Number 800(RGB)×600   [SVGA]
Active Area(mm) 246×184.5 mm (H×V)
Outline(mm) 279×209 mm (H×V×D)
Bezel Area(mm) 246×184.5 mm (H×V)
Treatment Hard coating (3H)
Luminance 450 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 80/80/65/75(CR≥10)
Left/Right/UP/Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white Transmissive
Color Depth 262K/16.2M , 55% NTSC
Backlight 50K hours,with LED Driver
Net Weight 295g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8bit) , 20 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 85 °C
Operating Temp.: -30 ~85 °C
Package 20 pcs/ carton


AUO 12.1 inch LCD screen G121SN01 V4, with 450 luminance and -30-85°C operating temp.

G121SN01 V4 has standard 800*600 resolution.

This screen has 50000 hours lifetime of backlight, can support long term operating.

G121SN01 V4 has good working temperature ,often be used in outdoor devices.
