AUO

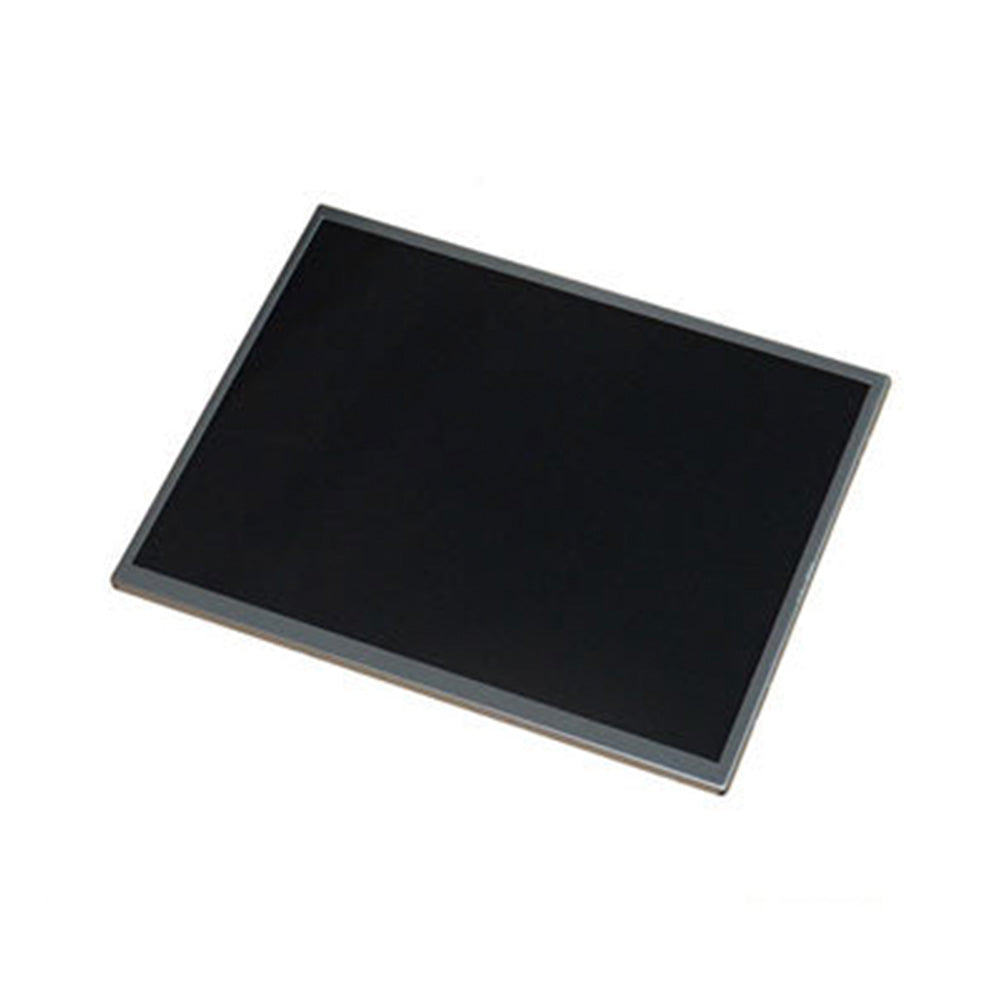

AUO G121EAN01.3

$224.87
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G121EAN01.3
  • Brand:AUO
  • Size:12.1 inch
  • Resolution:1280*800
  • Brightness:1500nit
  • Viewing angle:89/89/89/89
  • Interface:LVDS
  • CR:1000:1
  • Operating Temp.: -30-85℃
  • Parameters
Manufacturer AUO
Model Name G121EAN01.3
Screen Size 12.1
Pixel Number 1280*800  [WXGA]
Active Area(mm) 261.12×163.2 mm (H×V)
Outline(mm) 283×185.1mm (H×V×D)
Bezel Area(mm)
Treatment Hard coating
Luminance 1500 cd/m² (Typ.)
Contrast Ratio 1500 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode AMVA, Normally black, Transmissive
Color Depth 262K , 99% sRGB
Backlight 70K hours,with LED Driver
Net Weight 490g (Typ.)
Touchscreen without
Signal Type/interface Type 20 pins  LVDS (1 ch, 6/8-bit)
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 85 °C
Operating Temp.: -30 ~85 °C
Package 20 pcs/ carton


AUO 12.1 inch IPS Panel
G121EAN01.3 with resolution 1280x800 brightness 1500nits

High contrast 1000:1, long lifetime 70,000 hours and  good color depth 16.7M .

Resistive and Capacitive touch optional.

HDMI driver board and LVDS cables.
