AUO

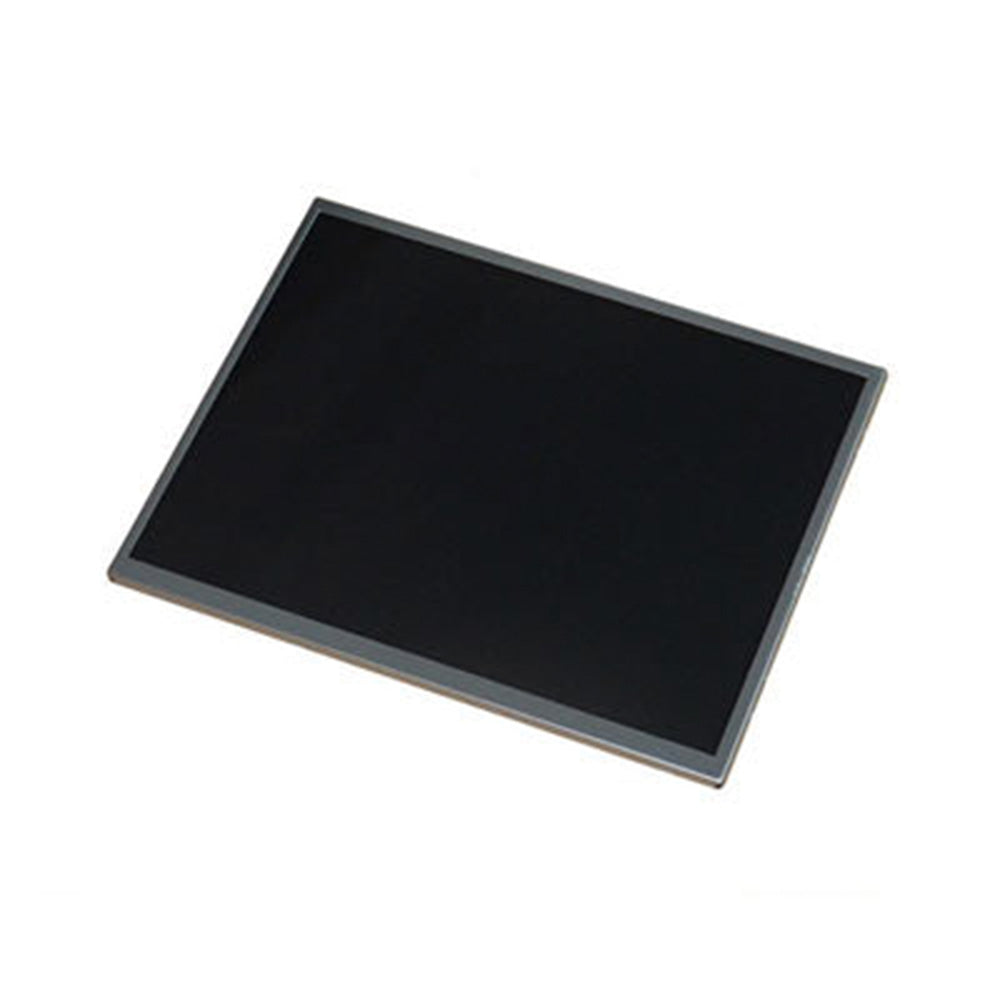

AUO G121EAN01.0

$129.05
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G121EAN01.0
  • Brand:AUO
  • Size:12.1
  • Resolution:1280*800
  • Brightness:500 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:30 pins LVDS (1 ch, 6/8-bit)
  • CR:1000:1
  • Operating Temp.: -30 ~ 85 °C
  • Parameters

Manufacturer

AUO

Model Name

G121EAN01.0

Screen Size

12.1

Pixel Number

1280(RGB)×800  [WXGA]

Active Area(mm)

261.12×163.2mm (H×V)

Outline(mm)

278×184×9.29 mm (H×V×D)

Bezel Area(mm)



Treatment

Hard coating (3H)

Luminance

500 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (TM)

Viewing Angle

89/89/89/89 (CR≥10)

Left/Right/UP/Down

Response

25 (Typ.)(Tr+Td) ms

Work Mode

IPS, Normally black, Transmissive

Color Depth

262K/16.7M , 72% NTSC

Backlight

70K hours,with LED Driver

Net Weight

TBD (Typ.)

Touchscreen

without

Signal Type/interface Type

30 pins   LVDS (1 ch, 6/8-bit)

Voltage Supply

3.3V (Typ./Max.)

Max. Ratings

Storage Temp.: -30 ~ 85 °C

Operating Temp.: -30 ~85 °C

Package

20 pcs/ carton





AUO 12.1 inch IPS Panel G121EAN01.0 with resolution 1280x800 brightness 500nits.

High contrast 1000:1, long lifetime 70,000 hours and good color depth 16.7M

Resistive touch and Capacitive optional.

HDMI driver board and LVDS cables optional.
