AUO

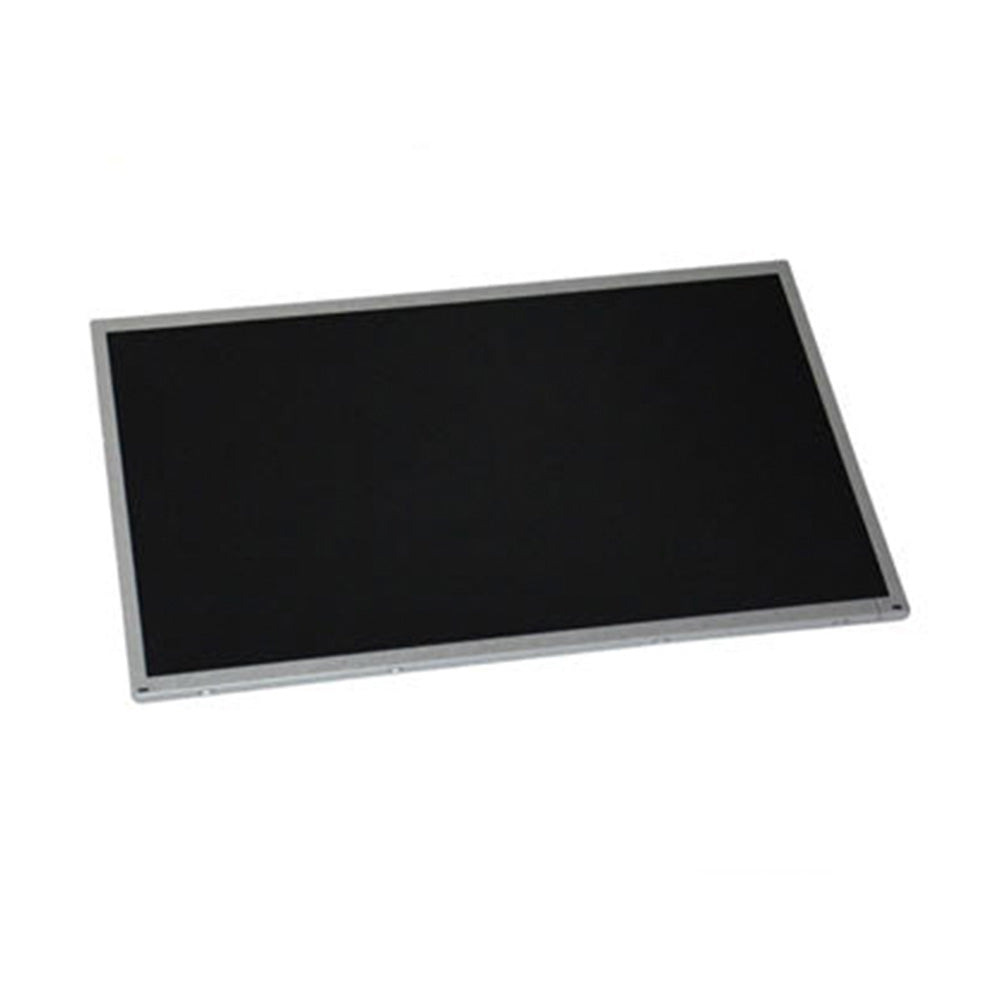

AUO G116HAN01.0

$77.92
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G116HAN01.0
  • Brand:AUO
  • Size:11.6 inch
  • Resolution:1920*1080
  • Brightness:300 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:eDP (2 Lanes) , 30 pins
  • CR:800 : 1
  • Operating Temp.: 0-50℃
  • Parameters
Manufacturer AUO
Model Name G116HAN01.0
Screen Size 11.6
Pixel Number 1920(RGB)×1080, FHD
Active Area(mm) 256.32×144.18 mm (H×V)
Outline(mm) 268×168.5×3 mm mm (H×V×D)
Bezel Area(mm)
Treatment Hard coating
Luminance 300 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode AHVA, Normally white, Transmissive
Color Depth 262K , 52% NTSC
Backlight 15K hours,without LED Driver
Net Weight 200g (Typ.)
Touchscreen without
Signal Type/interface Type eDP (2 Lanes) , 30 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~60 °C
Operating Temp.: -0 ~50 °C
Package 48 pcs/ carton


AUO 11.6 inch G116HAN01.0 is a flat type 1920*1080 LCD display.

For indoor, 0-50℃ operating temperature.
