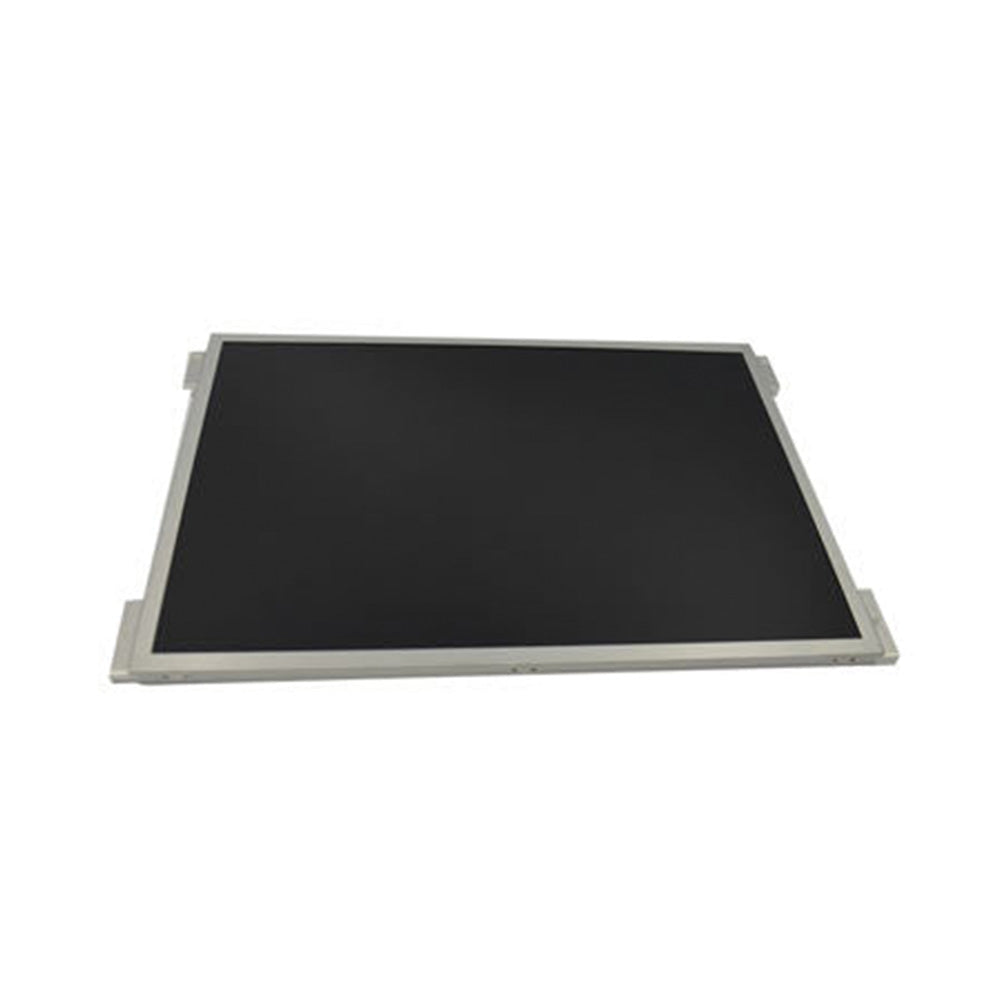

AUO

AUO G104XVN01.0

$112.32
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G104XVN01.0
  • Brand:AUO
  • Size:10.4 inch
  • Resolution:1024*768
  • Brightness:470 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)(CR≥10)
  • Interface:LVDS (1 ch, 6/8-bit) , 30 pins
  • CR:3000:1
  • Operating Temp.: -30 ~ 80 °C
  • Parameters

Manufacturer

AUO

Model Name

G104XVN01.0

Screen Size

10.4

Pixel Number

1024(RGB)×768   [XGA]

Active Area(mm)

210.4×157.8 mm (H×V)

Outline(mm)

238.6×175.8×7 mm (H×V×D)

Bezel Area(mm)

215.4×161.8 mm (H×V)

Treatment

Hard coating

Luminance

470 cd/m² (Typ.)

Contrast Ratio

3000 : 1 (Typ.) (TM)

Viewing Angle

89/89/89/89(CR≥10)

Left/Right/UP/Down

Response

25 (Typ.)(Tr+Td) ms

Work Mode

AMVA, Normally black, Transmissive

Color Depth

262K/16.2M , 60% NTSC

Backlight

50K hours,with LED Driver

Net Weight

295g (Typ.)

Touchscreen

without

Signal Type/interface Type

LVDS (1 ch, 6/8bit) , 30 pins

Voltage Supply

3.3V (Typ./Max.)

Max. Ratings

Storage Temp.: -30 ~ 80 °C

Operating Temp.: -30 ~80 °C

Package

40 pcs/ carton



AUO 10.4 inch LCD screen G104XVN01.0, with 470 luminance and -30-80°C operating temp.

G104XVN01.0 has standard 1024*768 resolution, has full-view angle.

This screen has 50000 hours lifetime of backlight, can support long term operating.

G104XVN01.0 often used in monitors.
