AUO

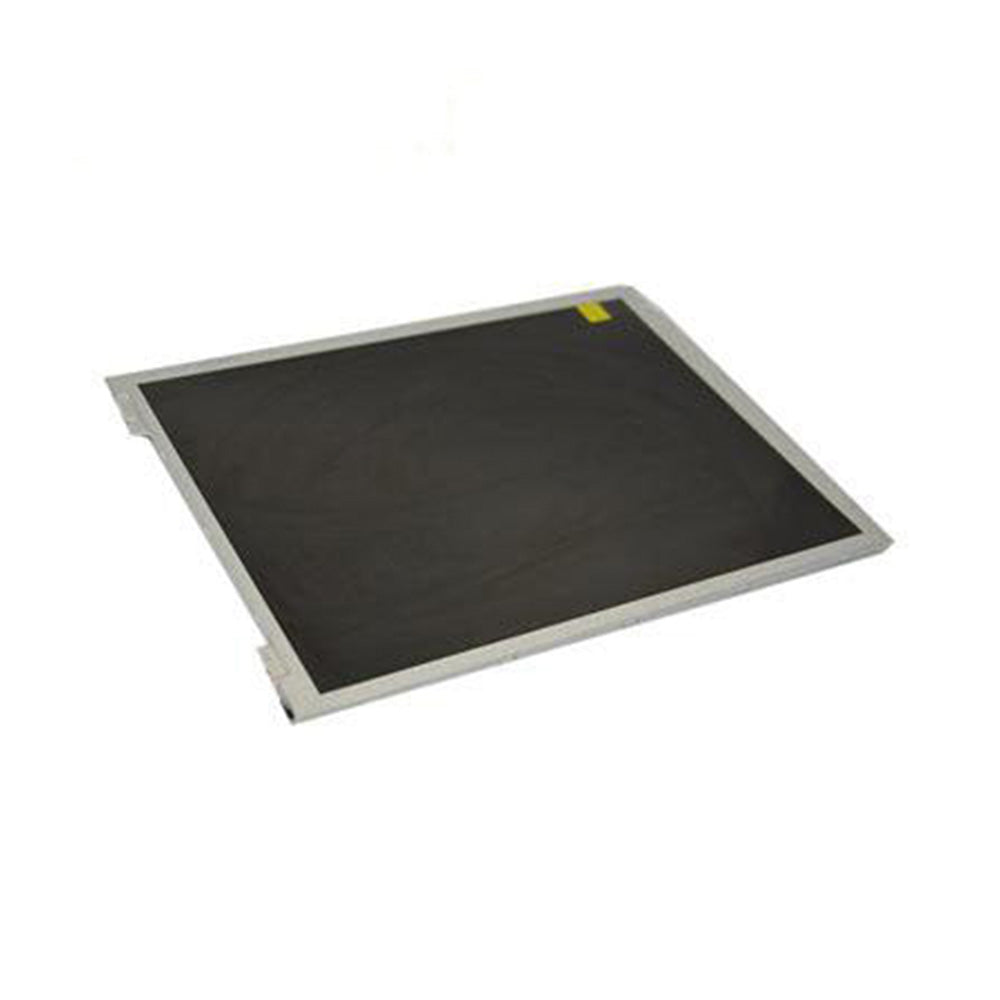

AUO G104VTN01.0

$120.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G104VTN01.0
  • Brand:AUO
  • Size:10.4 inch
  • Resolution:640*480
  • Brightness:370 cd/m²
  • Viewing angle:80/80/60/80
  • Interface:Parallel RGB (1 ch, 6-bit)
  • CR:700:1
  • Operating Temp.: -30 ~ 80 °C
  • Parameters
Manufacturer AUO
Model Name G104VTN01.0
Screen Size 10.4
Pixel Number 640(RGB)×480 , VGA
Active Area(mm) 211.2×158.4 mm (H×V)
Outline(mm)
Bezel Area(mm)
Treatment Hard coating
Luminance 370 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (CR≥10)
Left/Right/UP/Down
Response 20/10 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth
Backlight 70K hours,LED
Net Weight
Touchscreen without
Signal Type/interface Type Parallel RGB (1 ch, 6-bit)
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~80 °C
Operating Temp.: -30 ~80 °C
Package

 pcs/ carton


AUO 10.4 TFT LCD display G104VTN01.0 with 640*480 resolution and brightness 370cd/m2.

With LED driver, resistive and capacitive touch optional.
