AUO

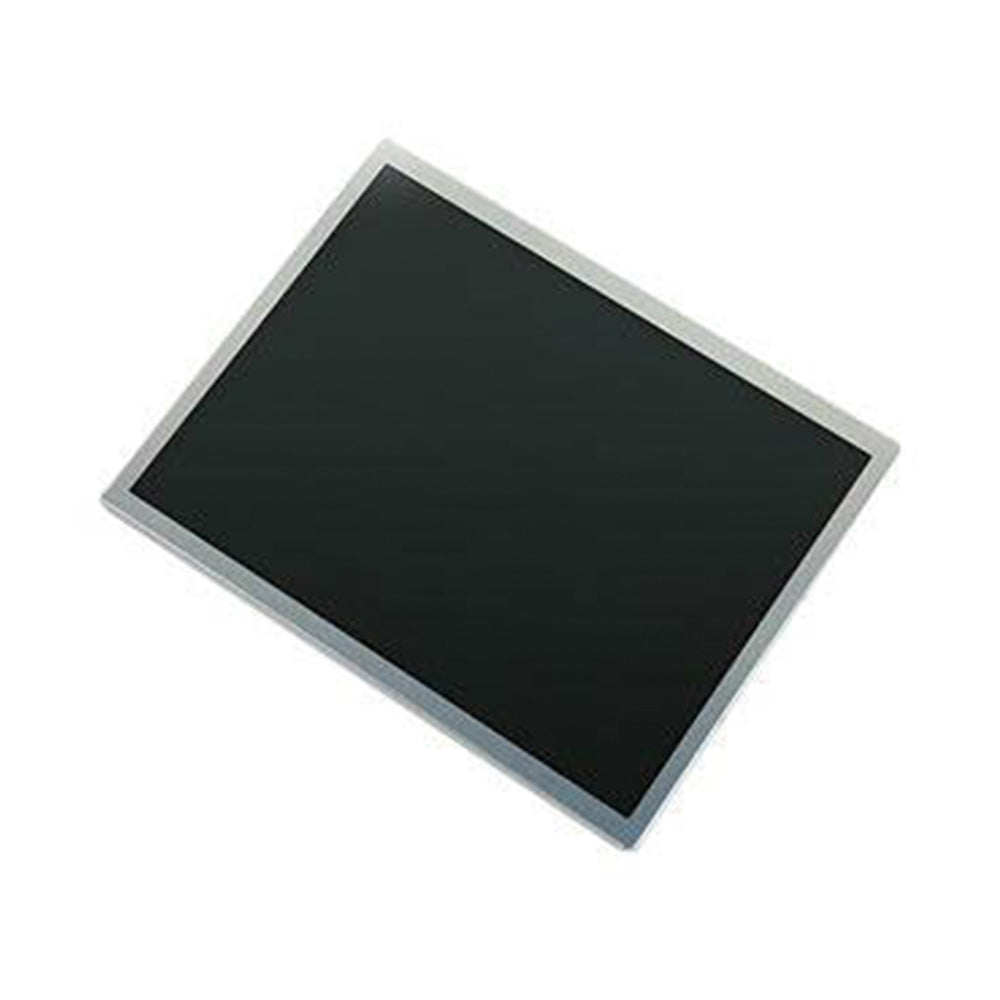

AUO G104STN01.3

$99.68
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G104STN01.3
  • Brand:AUO
  • Size:10.4 inch
  • Resolution:800*600
  • Brightness:450 cd/m²
  • Viewing angle:80/80/60/80
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:700 : 1
  • Operating Temp.: -30-80



  • Parameters
Manufacturer AUO
Model Name G104STN01.3
Screen Size 10.4
Pixel Number 800(RGB)×600, SVGA
Active Area(mm) 211.2(W)×158.4(H) mm (H×V)
Outline(mm) 227.3(W)×177.5 mm
Bezel Area(mm) 215.4(W)×161.9(H) mm
Treatment Hard coating
Luminance 450 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (CR≥10)
Left/Right/UP/Down
Response 10/5 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 262K/16.2M
Backlight 50K hours,LED
Net Weight 294g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit) 20pin
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~80 °C
Operating Temp.: -30 ~80 °C
Package 20pcs/ carton



AUO 10.4inch
G104STN01.3 is a standard brightness TFT panel with 450nits.

For outdoor, good viewing angle, super long lifetime of 50K hours for industrial applications.

VGA/HDMI/AV/DP controller board and touch panels with optical bonding.

Technical specifications are loading…
