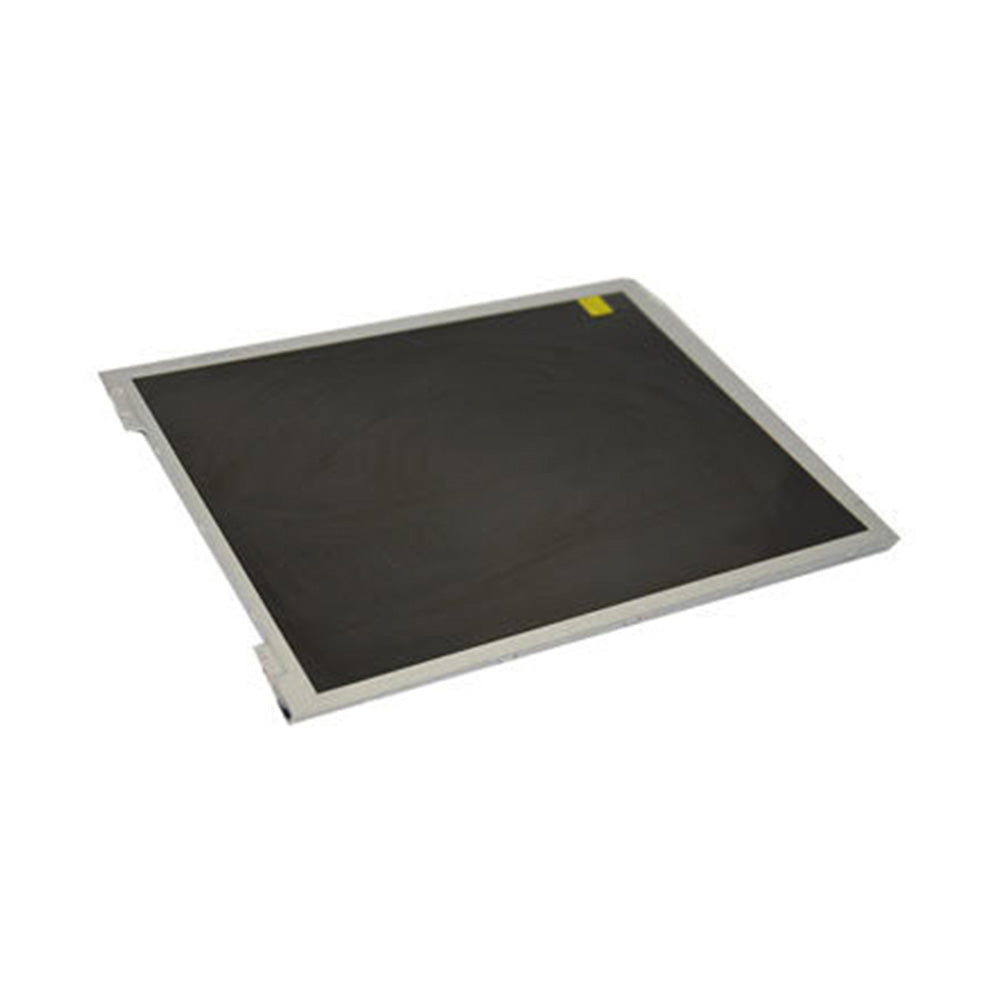

AUO

AUO G104STN01.0

$110.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G104STNO1.0
  • Brand:AUO
  • Size:10.4 inch
  • Resolution:800*600
  • Brightness:400 cd/m²
  • Viewing angle:80/80/60/70
  • Interface:20 pins LVDS (1 ch, 6/8-bit)
  • CR:700:1
  • Operating Temp.: -30 ~ 80 °C
  • Parameters
Manufacturer AUO
Model Name G104STN01.0
Screen Size 10.4
Pixel Number 800(RGB)×600   [SVGA]
Active Area(mm) 211.2×158.4 mm (H×V)
Outline(mm) 243×184×7 mm (H×V×D)
Bezel Area(mm) 214.8×162.7 mm (H×V)
Treatment Hard coating
Luminance 400 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 80/80/60/70  (CR≥10)
Left/Right/UP/Down
Response 10/5 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 262K/16.2M , 50% NTSC
Backlight 50K hours,with LED Driver
Net Weight 365g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 80 °C
Operating Temp.: -30 ~80 °C
Package 30 pcs/ carton

AUO 10.4 TFT LCD display G104STN01.0 with 800x600 resolution and brightness 400cd/m2.

With LED driver, resistive and capacitive touch optional.
