AUO

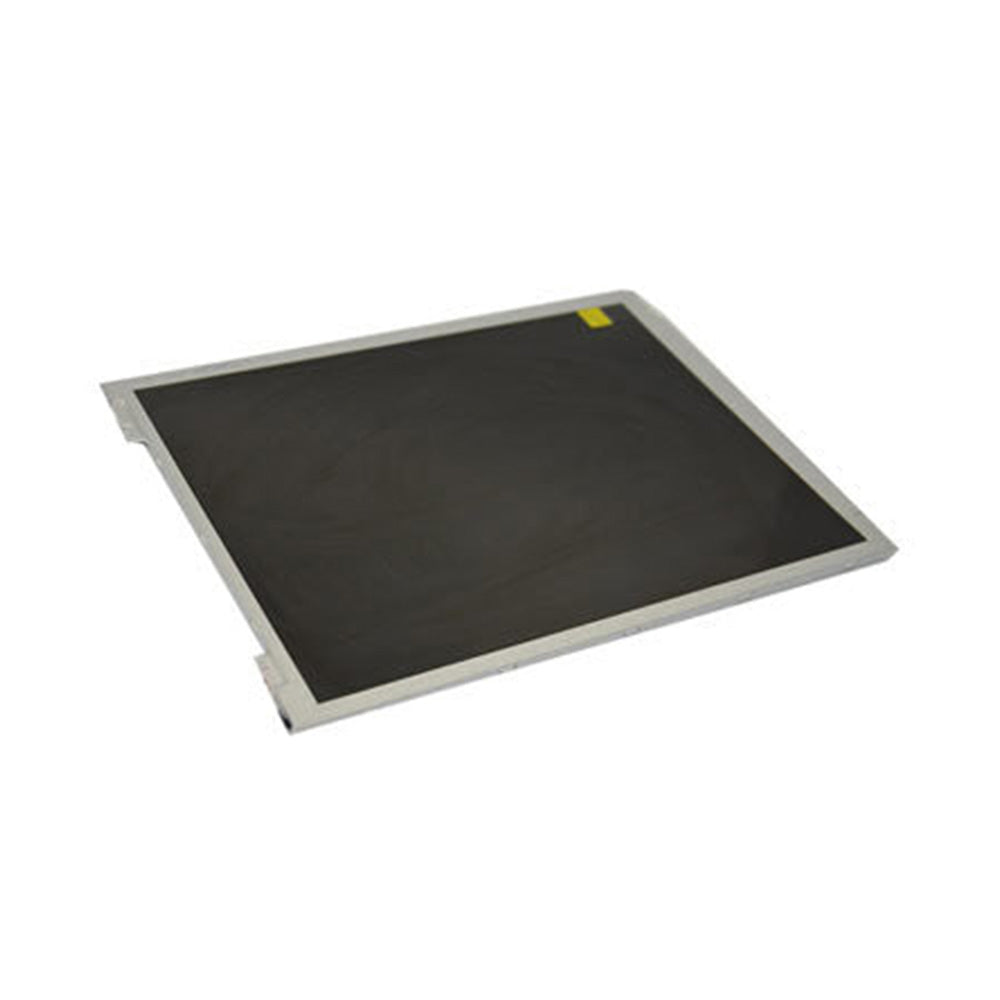

AUO G104SN03 V5

$81.90
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G104SN03 V5
  • Brand:AUO
  • Size:10.4 inch
  • Resolution:800*600
  • Brightness:230 cd/m²
  • Viewing angle:80/80/60/70
  • Interface:20 pins LVDS (1 ch, 6/8-bit)
  • CR:500:1
  • Operating Temp.: -20 ~ 70 °C
  • Parameters

Manufacturer

AUO

Model Name

G104SN03 V5

Screen Size

10.4

Pixel Number

800(RGB)×600   [SVGA]

Active Area(mm)

211.2×158.4 mm (H×V)

Outline(mm)

236×176.9×6 mm (H×V×D)

Bezel Area(mm)

214.8×162.0 mm (H×V)

Treatment

Hard coating

Luminance

230 cd/m² (Typ.)

Contrast Ratio

500 : 1 (Typ.) (TM)

Viewing Angle

80/80/60/70 (CR≥10)

Left/Right/UP/Down

Response

10/5(Typ.)(Tr+Td) ms

Work Mode

TN, Normally white, Transmissive

Color Depth

262K/16.2M , 50% NTSC

Backlight

30K hours,with LED Driver

Net Weight

280g (Typ.)

Touchscreen

without

Signal Type/interface Type

20 pins  LVDS (1 ch, 6/8-bit)

Voltage Supply

3.3V (Typ./Max.)

Max. Ratings

Storage Temp.: -20 ~ 70 °C

Operating Temp.: -20 ~70 °C

Package

30 pcs/ carton


    AUO 10.4 inch LCD screen G104SN03 V5, with 230 luminance and -20-70°C operating temp.

    G104SN03 V5  has standard 800*600 resolution.

    This screen has 30000 hours lifetime of backlight , can support long term operating.

    G104SN03 V5 often used in monitors and medical devices.
