AUO

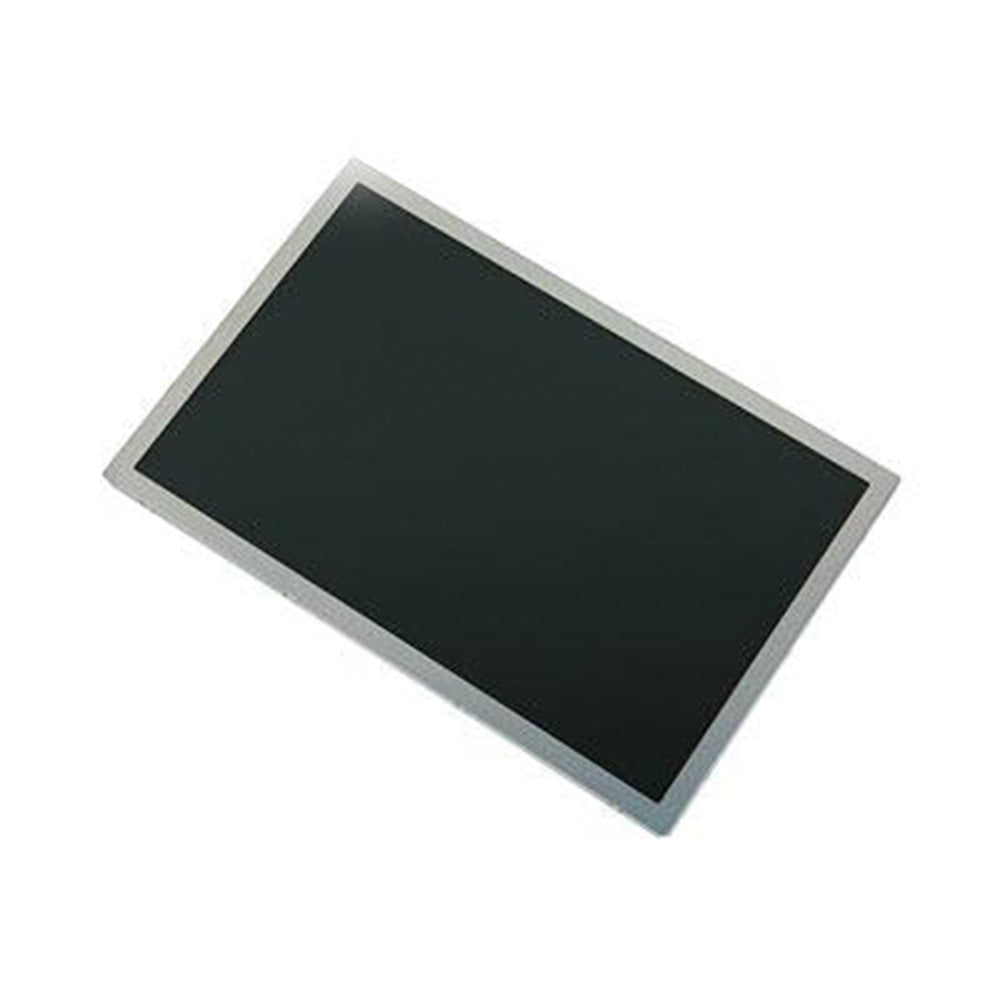

AUO G101UAN02.0

$120.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G101UAN02.0
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1920*1200
  • Brightness:800 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:MIPI (4 data lanes) 34 pins
  • CR:800 : 1
  • Operating Temp.: -10 ~60 °C
  • Parameters
Manufacturer AUO
Model Name G101UAN02.0
Screen Size 10.1
Pixel Number 1920(RGB)×1200 , WUXGA
Active Area(mm) 216.81 × 135.5 mm
Outline(mm) 229.4 × 150.5 × 5.05 mm
Bezel Area(mm)
Treatment Hard coating
Luminance 800 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode AHVA, Normally black, Transmissive
Color Depth 16.7M , 50% NTSC
Backlight 20K hours,with LED Driver
Net Weight 170g (Typ.)
Touchscreen without
Signal Type/interface Type MIPI (4 data lanes) 34 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~ 60 °C
Operating Temp.: -10 ~60 °C
Package  50 pcs/ carton


AUO 10.1 inch TFT LCD panel G101UAN02.0 with 1920x1200 resolution, brightness 800cd/m2;

Resistive and capacitive touch optional.
