AUO

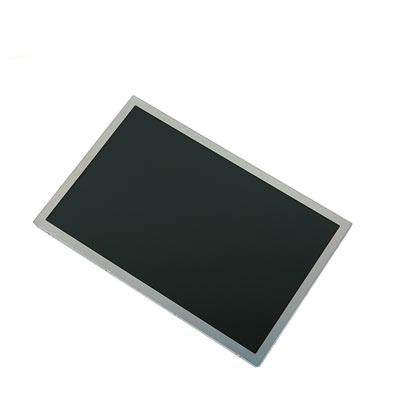

AUO G101STN01.C

$85.20
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G101STN01.C
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1024*600
  • Brightness:500
  • Viewing angle:70/70/60/60
  • Interface:LVDS (1 ch, 6/8bit) , 40 pins
  • CR:500:1
  • Operating Temp.: -30-80sheshid
  • Parameters
Manufacturer AUO
Model Name G101STN01.C
Screen Size 10.1
Pixel Number 1024(RGB)×600 (WSVGA)
Active Area(mm) 222.72 × 125.28 mm (H×V)
Outline(mm) 235 × 143 × 5.2 mm (H×V×D)
Bezel Area(mm) 226.43 × 128.1 mm
Treatment Hard coating,Reflectivity 1.5% (Max.)
Luminance 500 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 70/70/60/60(CR≥10)
Left/Right/UP/Down
Response 20 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 262K , 45% NTSC
Backlight 50K hours,without LED Driver
Net Weight 180g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 40 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 80 °C
Operating Temp.: -30 ~80 °C
Package 35 pcs/ carton



AUO 10.1 TFT LCD display G101STN01.C with 1024*600 resolution and brightness 500cd/m2.

Resistive and capacitive touch optional.
