AUO

AUO G101STN01.2

$80.80
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G101STN01.2
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1024*600
  • Brightness:350 cd/m²
  • Viewing angle:70/70/60/60
  • Interface:LVDS (1 ch, 6/8-bit) , FPC , 50 pins
  • CR:500:1
  • Operating Temp.: -10 ~ 60 °C
  • Parameters
  • Manufacturer AUO
    Model Name G101STN01.2
    Screen Size 10.1
    Pixel Number 1024(RGB)×600 , WSVGA
    Active Area(mm) 222.72×125.28 mm (H×V)
    Outline(mm) 235×143×5.5 mm (H×V×D)
    Bezel Area(mm) 226.34×128.1 mm (H×V)
    Treatment Hard coating
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 70/70/60/60 (CR≥10)
    Left/Right/UP/Down
    Response 7/9  (Typ.)(Tr+Td) ms
    Work Mode TN, Normally white, Transmissive
    Color Depth 262K/16.2M , 45% NTSC
    Backlight 30K hours,withOUT LED Driver
    Net Weight 340g (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , FPC , 50 pins
    Voltage Supply 3.3V (Typ./Max.)
    Max. Ratings Storage Temp.: -10 ~60 °C
    Operating Temp.: -30 ~70 °C
    Package 35 pcs/ carton

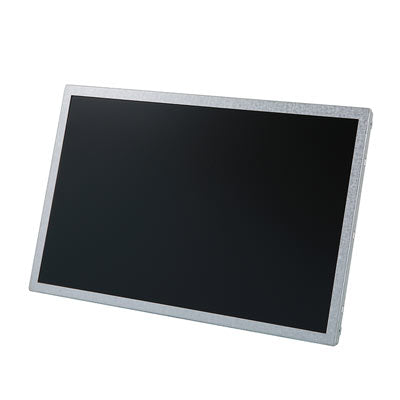

AUO 10.1 TFT LCD display G101STN01.2 with 1024*600 resolution.

Brightness 350cd/m2.

Resistive and capacitive touch optional.

Technical specifications are loading…
