AUO

AUO G101EVN03.1

$107.00
  • Module No:G101EVN03.1
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1280*800
  • Brightness:1000 cd/m²
  • Viewing angle:85/85/85/85
  • Interface:LVDS (1 ch, 6/8-bit) , 40 pins
  • CR:1300:1
  • Operating Temp.: -20 ~ 60 °C
  • Parameters
Manufacturer AUO
Model Name G101EVN03.1
Screen Size 10.1
Pixel Number 1280(RGB)×800 , WXGA
Active Area(mm) 216.96×135.6mm (H×V)
Outline(mm) 227.69×148.31×7.75mm (H×V×D)
Bezel Area(mm)
Treatment Hard coating,Reflectivity 1.5% (Max.)
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 1300 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10)
Left/Right/UP/Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode MVA, Normally black, Transmissive
Color Depth 262K , 45% NTSC
Backlight 50K hours,without LED Driver
Net Weight 350g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 40 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~ 60 °C
Operating Temp.: -30 ~70 °C
Package 44 pcs/ carton

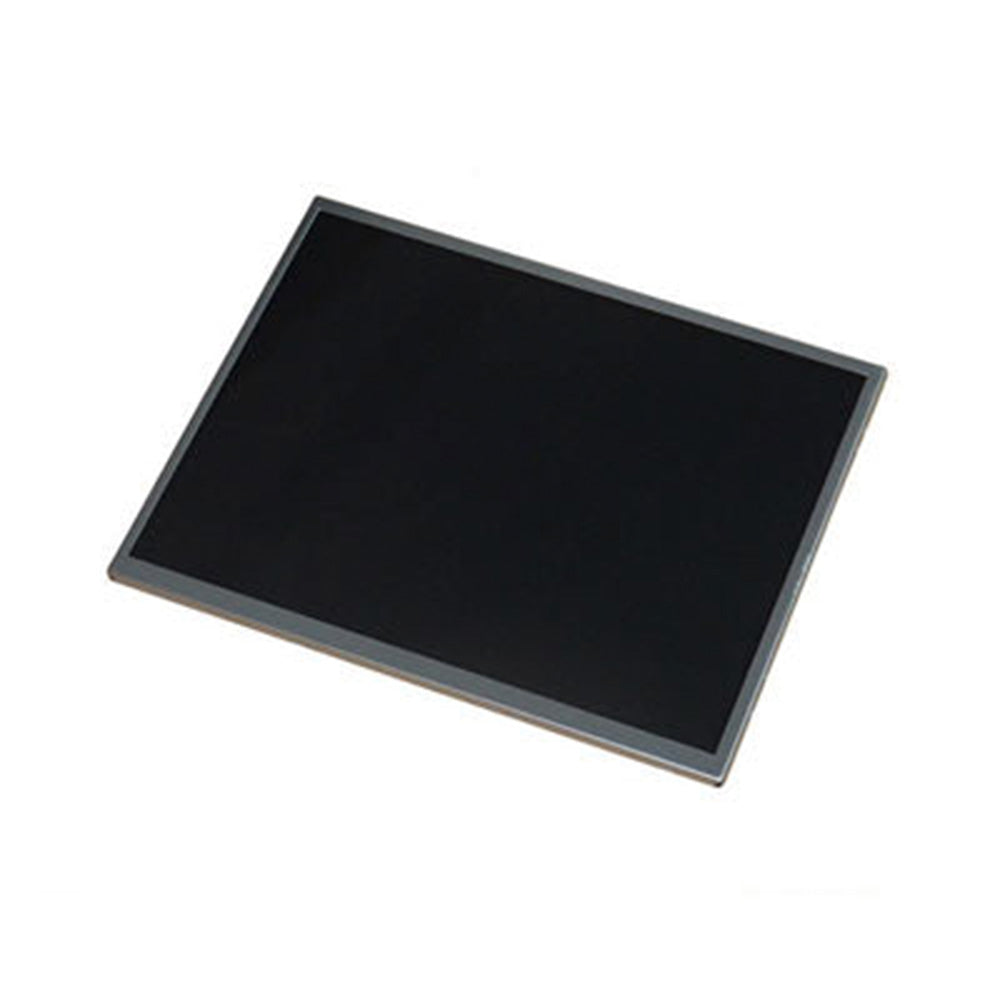

AUO 10.1 inch TFT LCD panel G101EVN03.1 with 1280x800 resolution, brightness 1000cd/m2.

Resistive and capacitive touch optional.
