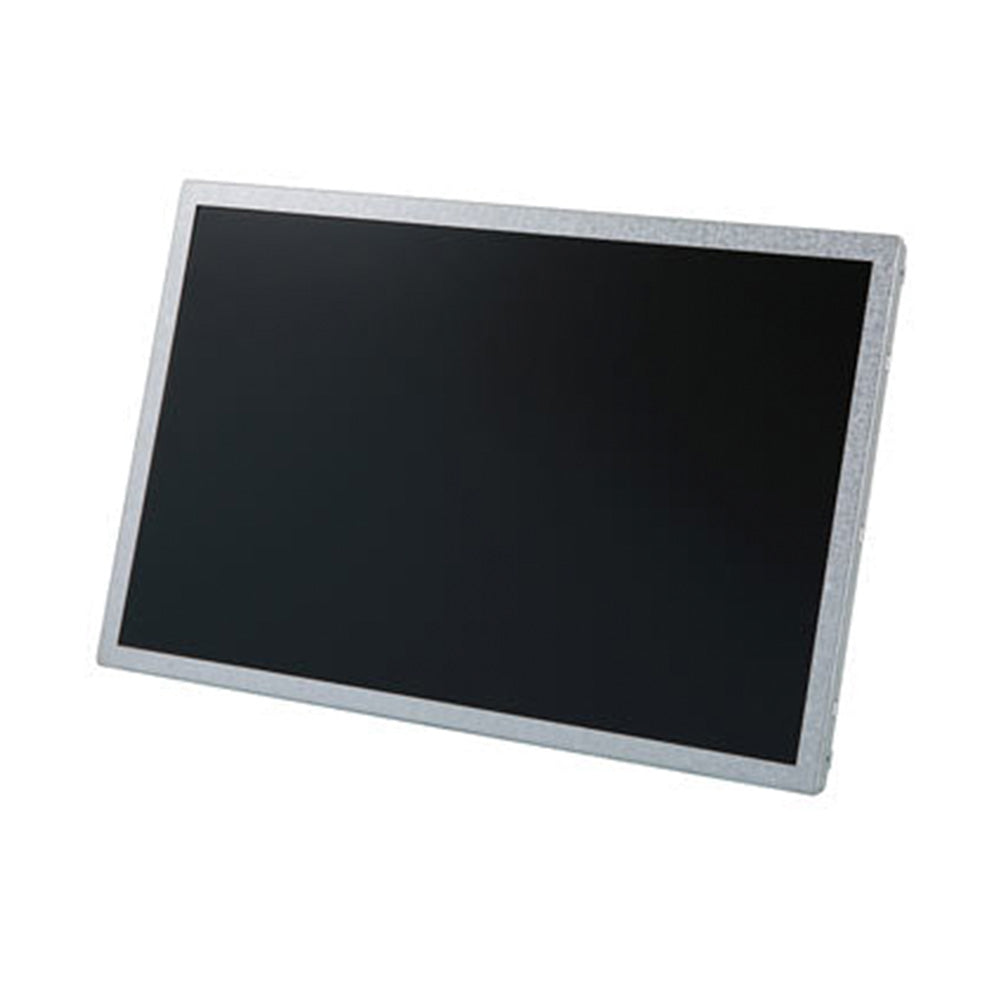

AUO

AUO G101EVN01.3

$76.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G101EVN01.3
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1280*800
  • Brightness:500 cd/m²
  • Viewing angle:85/85/85/85
  • Interface:LVDS (1 ch, 6/8-bit) , 40 pins
  • CR:1300:1
  • Operating Temp.: -20 ~ 70 °C
  • Parameters

Manufacturer

AUO

Model Name

G101EVN01.3

Screen Size

10.1

Pixel Number

1280(RGB)×800   [WXGA]

Active Area(mm)

216.96×135.6 mm (H×V)

Outline(mm)

227.91× 148× 8.34 mm(H×V×D)

Bezel Area(mm)

220.36×139.1mm (H×V)

Treatment

Hard coating,Reflectivity 1.5% (Max.)

Luminance

500 cd/m² (Typ.)

Contrast Ratio

1300 : 1 (Typ.) (TM)

Viewing Angle

85/85/85/85(CR≥10)

Left/Right/UP/Down

Response

25 (Typ.)(Tr+Td) ms

Work Mode

MVA, Normally black, Transmissive

Color Depth

262K , 45% NTSC

Backlight

50K hours,with LED Driver

Net Weight

350g (Typ.)

Touchscreen

without

Signal Type/interface Type

LVDS (1 ch, 6/8-bit) , 40 pins

Voltage Supply

3.3V (Typ./Max.)

Max. Ratings

Storage Temp.: -20 ~ 70 °C

Operating Temp.: -30 ~80 °C

Package

44 pcs/ carton


AUO 10.1 inch LCD screen G101EVN01.3, with 500 luminance and -20-70°C operating temp.

G101EVN01.3 has standard 1280*800 resolution, it also has full-view angle.

This screen has 50000 hours lifetime of backlight, can support long term operating.

G101EVN01.3 often used in handheld devices and PADs.
