AUO

AUO G101EVN01.0

$63.40
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G101EVN01.0
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1280*800
  • Brightness:400 cd/m²
  • Viewing angle:85/85/85/85(CR≥10)
  • Interface:LVDS (1 ch, 6bit) , 40 pins
  • CR:1300 : 1
  • Operating Temp.: -20 ~60 °C
  • Parameters
Manufacturer AUO
Model Name G101EVN01.0
Screen Size 10.1
Pixel Number 1280(RGB)×800   [WXGA]
Active Area(mm) 216.96 × 135.6 mm (H×V)
Outline(mm) 229.46×149.2×4.96 mm(H×V×D)
Bezel Area(mm) 220.36 × 139.1mm (H×V)
Treatment Hard coating,Reflectivity 1.5% (Max.)
Luminance 40cd/m² (Typ.)
Contrast Ratio 1300 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10)
Left/Right/UP/Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode MVA, Normally black, Transmissive
Color Depth 262K , 45% NTSC
Backlight 25K hours,with LED Driver
Net Weight 187g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6bit) , 40 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 70 °C
Operating Temp.: -20 ~60 °C
Package 40 pcs/ carton

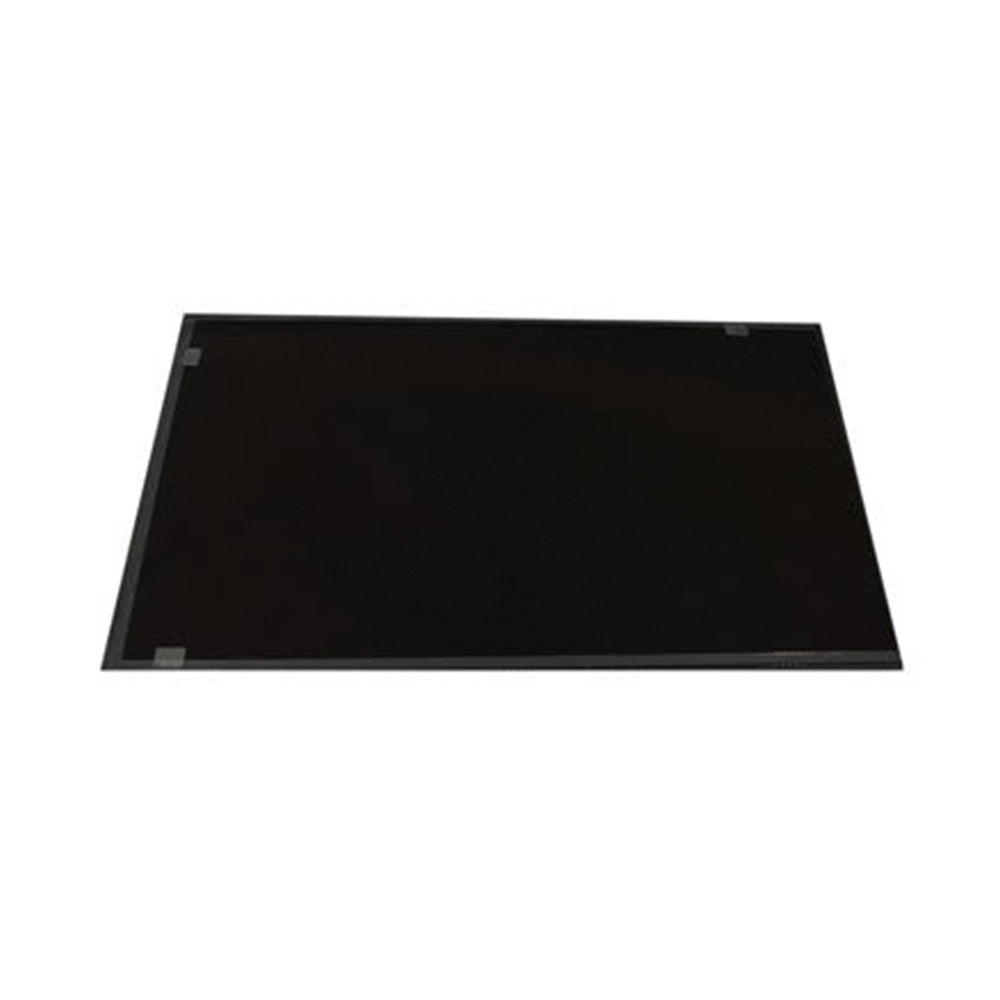

AUO 10.1 inch LCD screen G101EVN01.0, with 400 luminance and -20 60°C operating temp.

G101EVN01.0 has standard 1280*800 resolution, it also has full-view angle.

Has 25000 hours lifetime of backlight, can support long term operating.

G101EVN01.0 often used in handheld devices and PADs.
