AUO

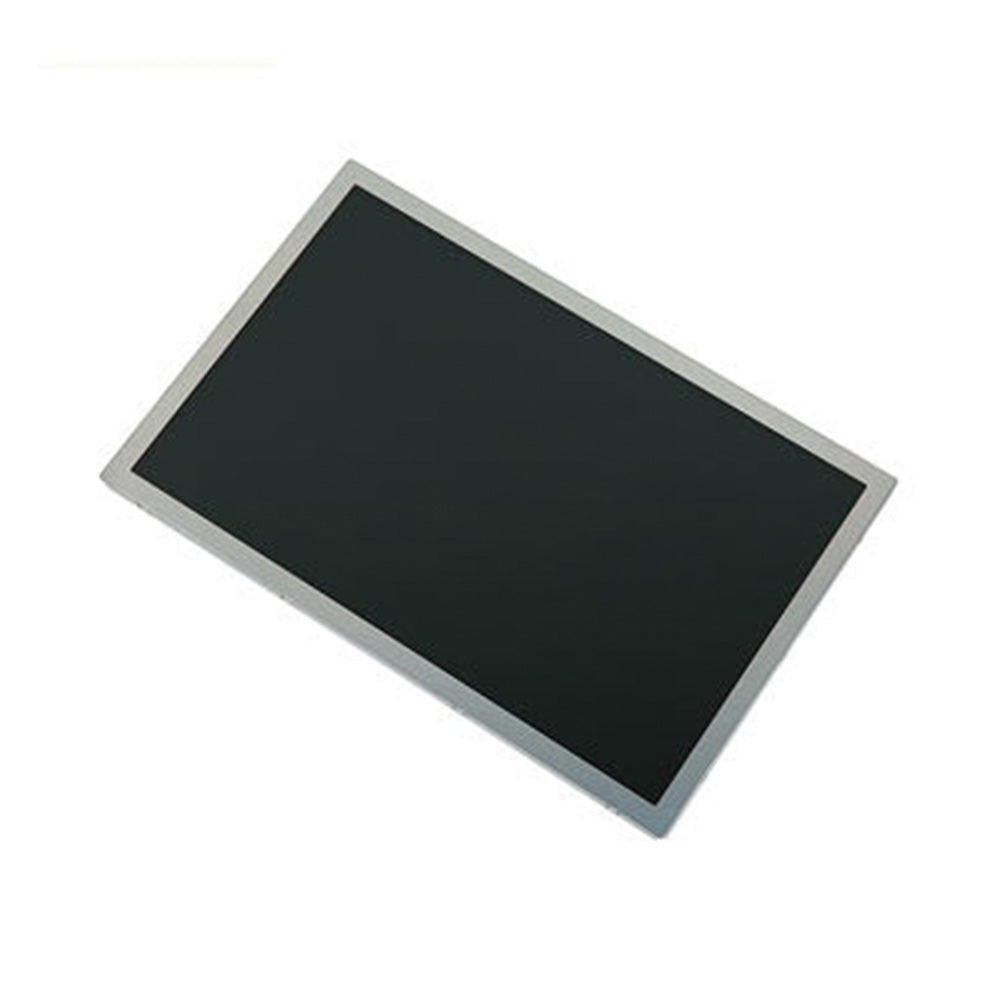

AUO G101EAN02.4

$61.50
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G101EAN02.4
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1280*800
  • Brightness:400 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:eDP (1 Lane)
  • CR:800 : 1
  • Operating Temp.: -20 ~60 °C


  • Parameters
Manufacturer AUO
Model Name G101EAN02.4 
Screen Size 10.1
Pixel Number 1280(RGB)×800   [WXGA]  149PPI
Active Area(mm) 216.96 × 135.6 mm (H×V)
Outline(mm)
Bezel Area(mm)
Treatment
Luminance 400 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 29(Typ.)(Tr+Td) ms
Work Mode AHVA, Normally black, Transmissive
Color Depth
Backlight 20K hours,with LED Driver
Net Weight
Touchscreen without
Signal Type/interface Type eDP (1 Lane)
Voltage Supply
Max. Ratings Storage Temp.: --20 ~60 °C
Operating Temp.: -20 ~60 °C
Package


AUO 10.1 inch G101EAN02.4  with working temperature -20 ~ 60 °C, mainly for military applications.

It is an IPS panel with 1280*800 resolutions.

Has long lifetime of 20K hours, with LED driver.

This LCD has VGA/HDMI/AV/DP/USB controller board.

Capacitive and resistive touch optional.
