AUO

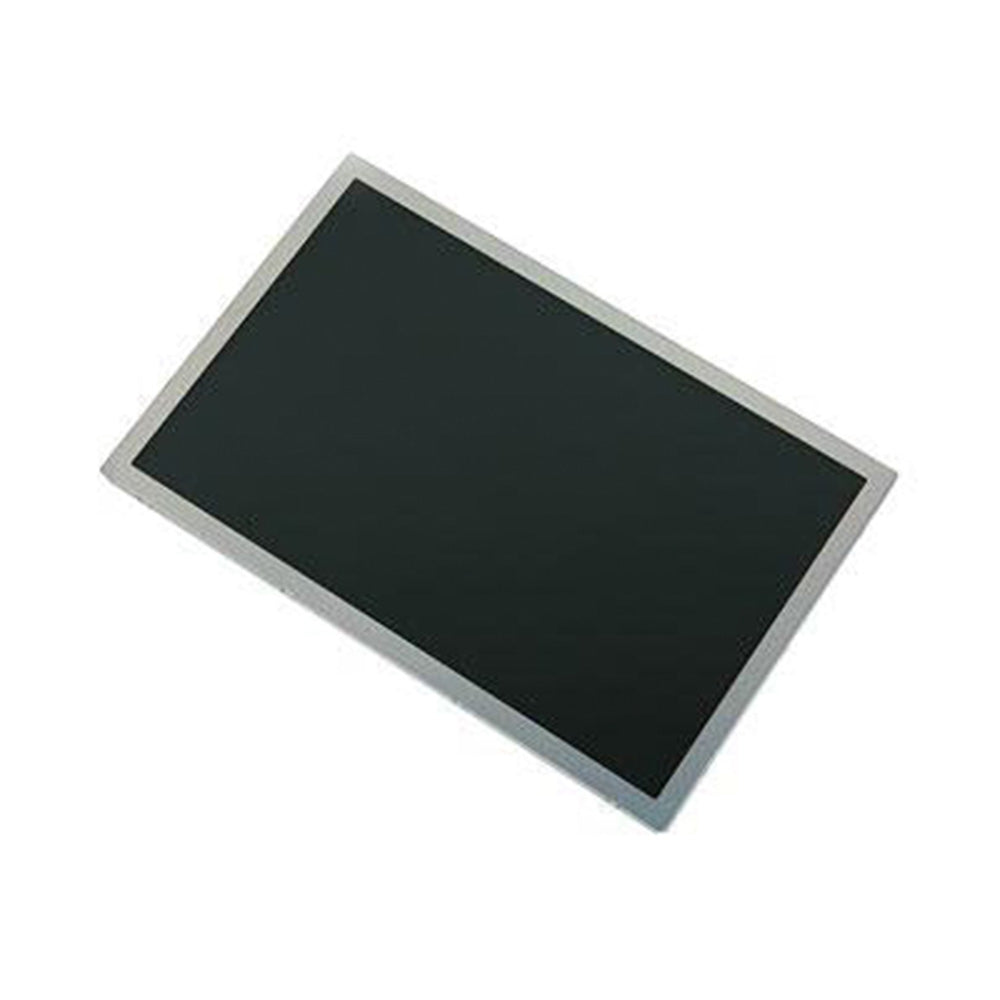

AUO G101EAN02.2

$86.50
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G101EAN02.2
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1280*800
  • Brightness:500 nit
  • Viewing angle:89/89/89/89
  • Interface:LVDS (1 ch, 8-bit) , 40 pins
  • CR:800 : 1
  • Operating Temp.: -20 ~ 70 °C
  • Parameters
Manufacturer AUO
Model Name G101EAN02.2
Screen Size 10.1
Pixel Number 1280(RGB)×800   WXGA
Active Area(mm) 216.96×135.6mm (H×V)
Outline(mm) 227.72×148 ×7.75mm (H×V×D)
Bezel Area(mm)
Treatment Hard coating,Reflectivity 1.5% (Max.)
Luminance 500 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 29 (Typ.)(Tr+Td) ms
Work Mode AHVA, Normally black, Transmissive
Color Depth 16.7M , 50% NTSC
Backlight 30K hours,without LED Driver
Net Weight
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 8-bit) , 40 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~70 °C
Operating Temp.: -20 ~70 °C
Package 44pcs/ carton



AUO 10.1 inch G101EAN02.2  is a -20 ~ 70 °C LCD, mainly for military applications.

It is an IPS panel with 1280*800 resolution.

Has long lifetime of 50K hours, with LED driver.

Has VGA/HDMI/AV/DP/USB controller board.

Capacitive and resistive touch optional.

Technical specifications are loading…
