AUO

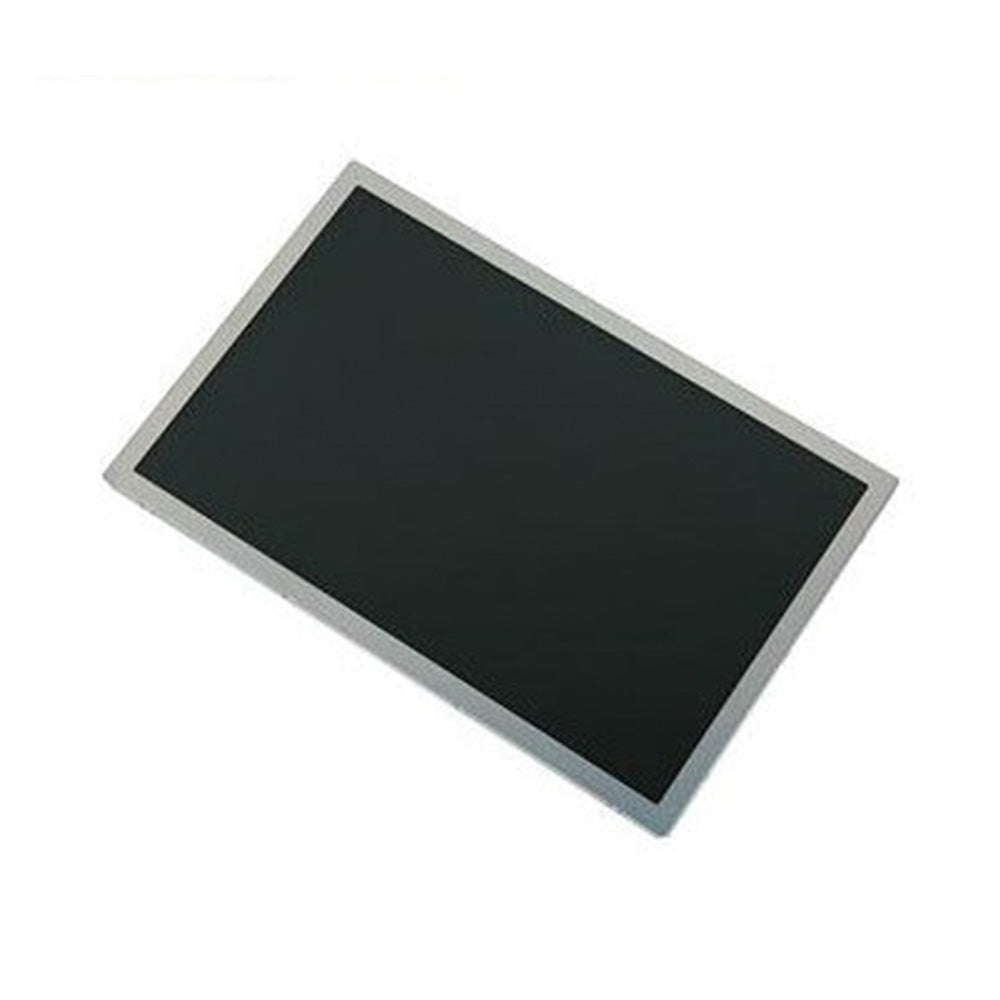

AUO G101EAN02.1

$52.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G101EAN02.1
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1280*800
  • Brightness:400 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:LVDS (1 ch, 8-bit) , 40 pins
  • CR:800 : 1
  • Operating Temp.: -20 ~60 °C
  • Parameters
Manufacturer AUO
Model Name G101EAN02.1 
Screen Size 10.1
Pixel Number 1280(RGB)×800   WXGA
Active Area(mm) 216.96×135.6mm (H×V)
Outline(mm) 227.72×147.8 ×4.8mm (H×V×D)
Bezel Area(mm)
Treatment Hard coating
Luminance 400 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 29 (Typ.)(Tr+Td) ms
Work Mode AHVA, Normally black, Transmissive
Color Depth 16.7M , 50% NTSC
Backlight 30K hours,without LED Driver
Net Weight
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 8-bit) , 40 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~60 °C
Operating Temp.: -20 ~60 °C
Package 40pcs/ carton


AUO 10.1 inch LCD screen G101EAN02.1 with 400 luminance and -20-60°C operating temp.

G101EAN02.1 has standard 1280*800 resolution, has full-view angle.

This screen has 30000 hours lifetime of backlight, can support long term operating.

G101EAN02.1 has good viewing angle, often used in handheld devices and PADs.
