AUO

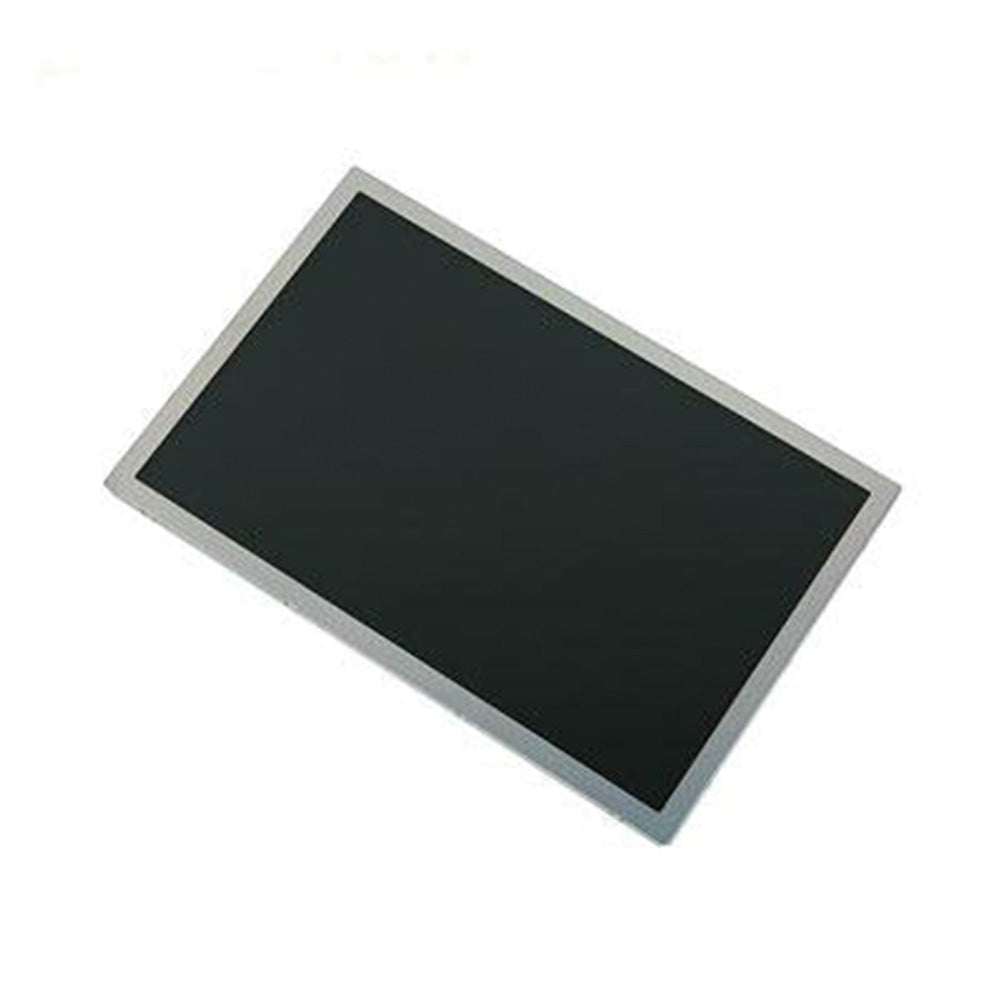

AUO G101EAN01.0

$49.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G101EAN01.0
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:800*1280
  • Brightness:350
  • Viewing angle:89/89/89/89
  • Interface:39 pins MIPI (4 data lanes)
  • CR:1000 : 1
  • Operating Temp.: 0-50℃
  • Parameters
Manufacturer AUO
Model Name G101EAN01.0
Screen Size 10.1
Pixel Number 800(RGB)×1280   WXGA
Active Area(mm) 135.36×216.576mm (H×V)
Outline(mm) 150.3×232.43×4.8mm (H×V×D)
Bezel Area(mm)
Treatment Hard coating,Reflectivity 1.5% (Max.)
Luminance 350 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10)
Left/Right/UP/Down
Response 30(Typ.)(Tr+Td) ms
Work Mode AHVA, Normally black, Transmissive
Color Depth 262K , 60% NTSC
Backlight 15K hours,without LED Driver
Net Weight 161 g (Typ.)
Touchscreen without
Signal Type/interface Type 39 pins   MIPI (4 data lanes)
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: 0 ~50 °C
Operating Temp.: -20 ~60 °C
Package

40pcs/ carton


AUO 10.1 inch LCD screen G101EAN01.0, with 350 luminance and 0-50°C operating temp.

G101EAN01.0 has standard 800*1280 resolution, it also has full-view angle.

Has 15000 hours lifetime of backlight, can support long term operating.

G101EAN01.0 often used in handheld devices and PADs.

Technical specifications are loading…
