AUO

AUO G084SN05 V9

$104.80
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G084SN05 V9
  • Brand:AUO
  • Size:8.4 inch
  • Resolution:800*600
  • Brightness:450 cd/m²
  • Viewing angle:80/80/80/60(CR≥10)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:600:1
  • Operating Temp.: -30 ~ 85 °C
  • Parameters
Manufacturer AUO
Model Name G084SN05 V9
Screen Size 8.4
Pixel Number 800(RGB)×600 , SVGA
Active Area(mm) 170.4 ×127.8 mm (H×V)
Outline(mm) 203×142.5 ×8 mm(H×V×D)
Bezel Area(mm) 174.15×131.2mm (H×V)
Treatment Anti-glare, Hard coating (3H)
Luminance 450 cd/m² (Typ.)
Contrast Ratio 600: 1 (Typ.) (TM)
Viewing Angle 80/80/80/60(CR≥10) Left / Right/UP /Down
Response 20/10 (Typ.)(Tr/Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 262K , 45% NTSC
Backlight 50K hours,with LED Driver
Net Weight 250g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 85 °C
Operating Temp.: -30 ~85 °C
Package

30 pcs/ carton

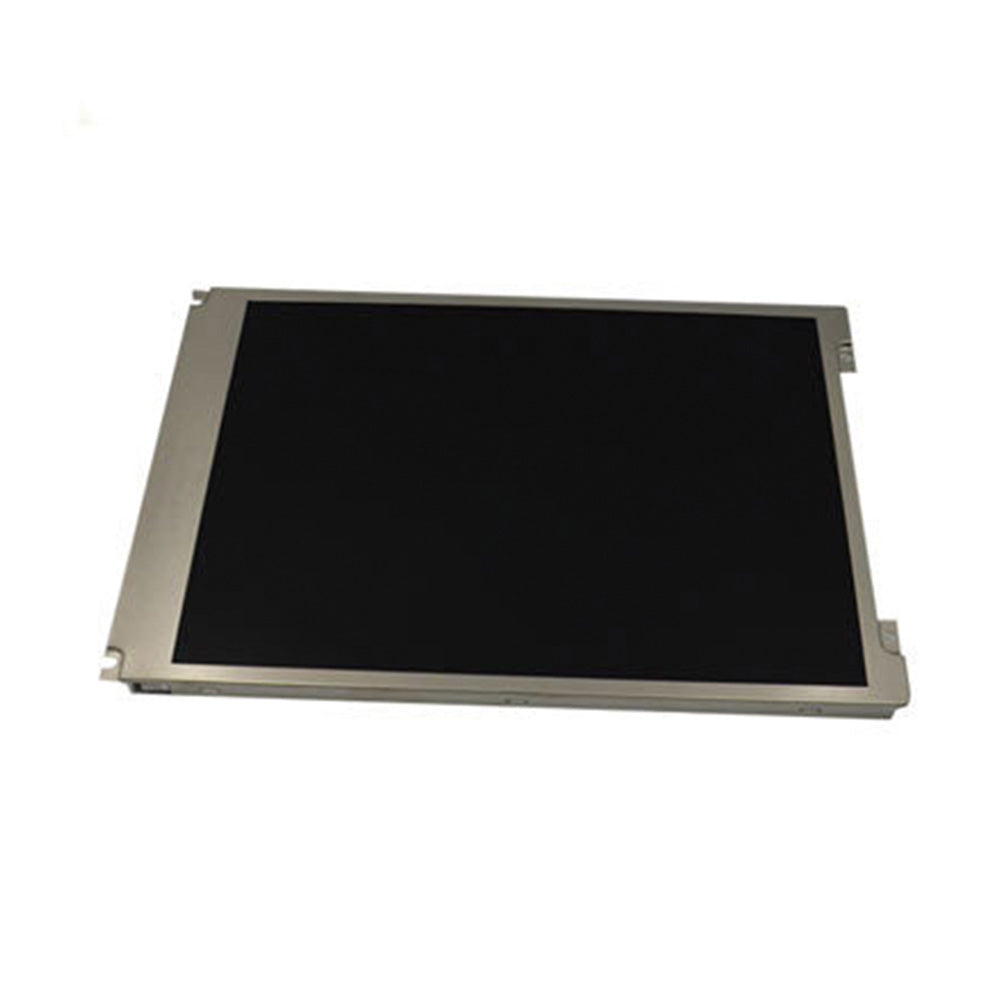

AUO 8.4inch LCD screen G084SN05 V9, with 450 luminance and -30-85°C operating temp.

G084SN05 V9,has standard 800*600 resolution.

This screen has 50000 hours lifetime of backlight, can support long term operating.

G084SN05 V9 has good reliability, often be used in industrial devices.

Technical specifications are loading…
