AUO

AUO G080UAN01.0

$60.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G080UAN01.0
  • Brand:AUO
  • Size:8 inch
  • Resolution:1200*1920
  • Brightness:500 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)(CR≥10)
  • Interface:mipi
  • CR:1000:1
  • Operating Temp.: -10 ~ 60 °C
  • Parameters

Manufacturer

AUO

Model Name

G080UAN01.0

Screen Size

8

Pixel Number

1200(RGB)×1920   [WUXGA]

Active Area(mm)

107.64 × 172.224 mm (H×V)

Outline(mm)

114.6 × 184.13 × 3.95 mm (H×V×D)

Bezel Area(mm)



Treatment

Mirror surface

Luminance

500 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (TM)

Viewing Angle

89/89/89/89(CR≥10)

Left/Right/UP/Down

Response

27(Typ.)(Tr+Td) ms

Work Mode

AHVA, Normally black Transmissive

Color Depth

262K/16.2M , 60% NTSC

Backlight

20K hours,without LED Driver

Net Weight

80g (Typ.)

Touchscreen

without

Signal Type/interface Type

MIPI (8bit) , 45 pins

Voltage Supply

3.3V (Typ./Max.)

Max. Ratings

Storage Temp.: -20 ~ 70 °C

Operating Temp.: -10 ~60 °C

Package

20 pcs/ carton

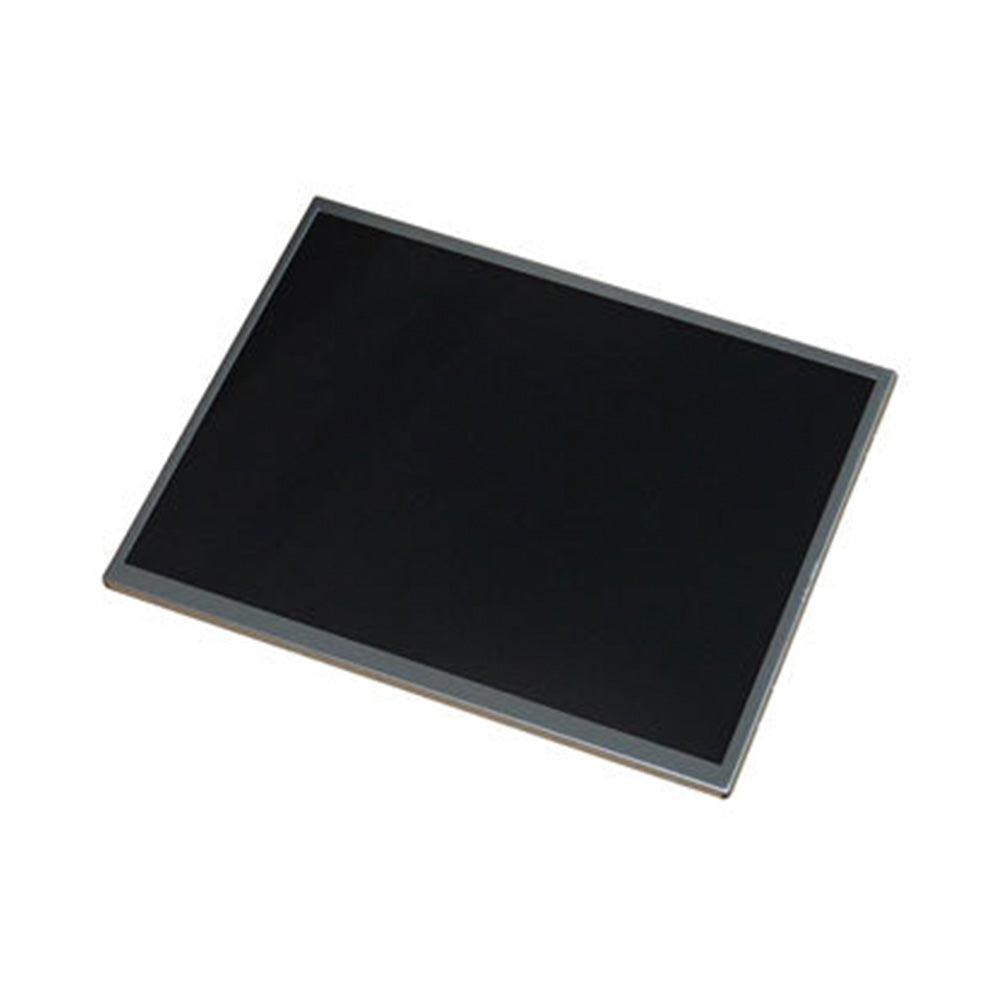

AUO 8 inch IPS LCD panel G080UAN01.0 with resolution 1200x1920 and 500nit brightness.

MIPI interface, easy connection. Thin structure and good view angel.
