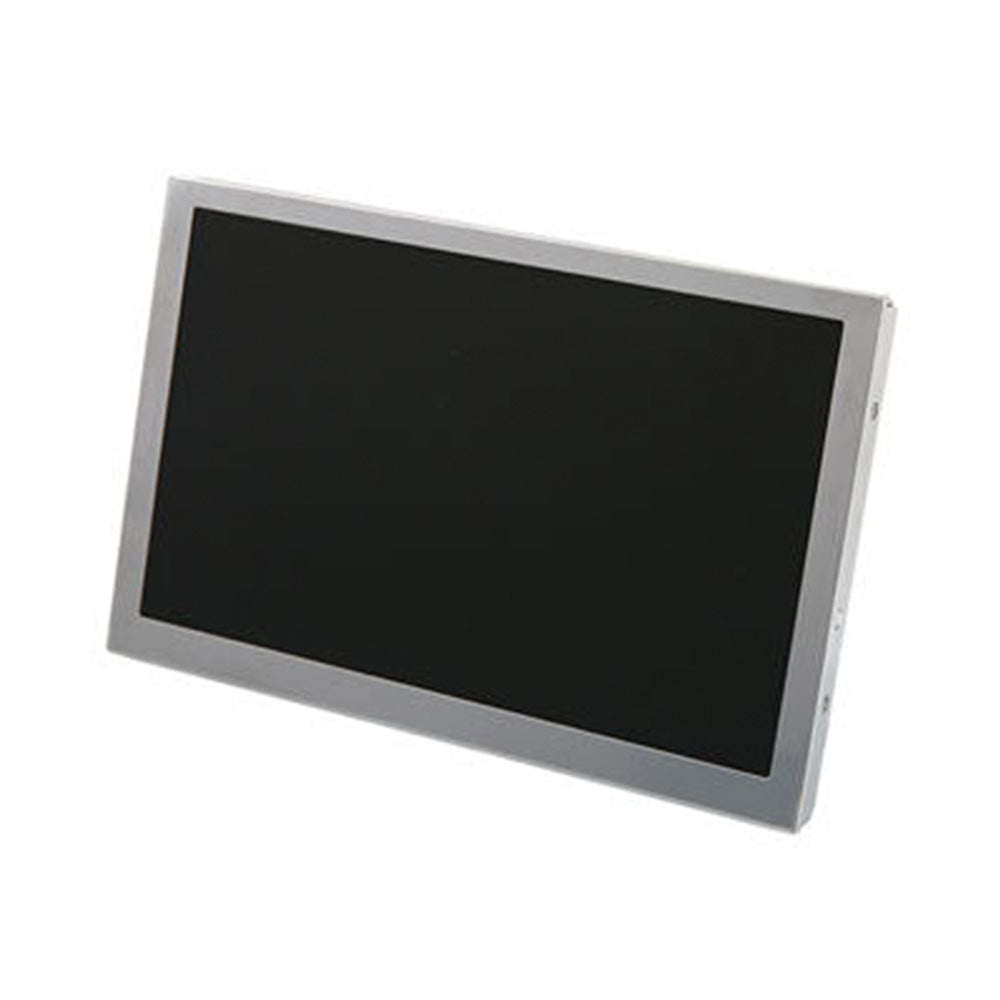

AUO G070VAN01.1

$66.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G070VAN01.1
  • Brand:AUO
  • Size:7 inch
  • Resolution:800*480
  • Brightness:200 cd/m²
  • Viewing angle:85/85/85/85
  • Interface:LVDS (1 ch, 6/8-bit) ,30 pins
  • CR:1300 : 1
  • Operating Temp.: -20-70
  • Parameters
Manufacturer AUO
Model Name G070VAN01.1 
Screen Size 7
Pixel Number 800(RGB)×480 , WVGA
Active Area(mm) 152.4 × 91.44 mm (H×V)
Outline(mm) 166.6 × 107 × 10mm (H×V×D)
Bezel Area(mm) 154.2 × 93.24 mm (H×V)
Treatment Anti-glare, Hard coating (3H)
Luminance 200 cd/m² (Typ.)
Contrast Ratio 1300 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10) Left / Right/UP /Down
Response 11/19 (Typ.)(Tr/Td) ms
Work Mode AHVA, Normally Black, Transmissive
Color Depth 262K/16.2M , 60% NTSC
Backlight 30K hours,withOUT LED Driver
Net Weight
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit) ,30 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~80 °C
Operating Temp.: -20 ~70 °C
Package 40 pcs/ carton



AUO 7inch LCD screen G070VAN01.1 with 200 luminance and -20-70 operating temp.

G070VAN01.1 has standard 800*480 resolution

Has 30000 hours lifetime of backlight, can support long term operating.

G070VAN01.1 often used in industrial and commercial facilities.
