AUO

AUO G057VN01 V2

$56.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G057VN01 V2
  • Brand:AUO
  • Size:5.7 inch
  • Resolution:640*480
  • Brightness:700 cd/m²
  • Viewing angle:80/80/70/70
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:CMOS (1 ch, 6-bit) , 33 pins
  • Operating Temp.: -30-85℃
  • Parameters
Manufacturer AUO
Model Name G057VN01 V2
Screen Size 5.7
Pixel Number 640(RGB)×480  [VGA]
Active Area(mm) 115.2 × 86.4mm (H×V)
Outline(mm) 144 × 104.6 × 12.8mm (H×V×D)
Bezel Area(mm) 118.2 × 89.4 mm (H×V)
Treatment Anti-glare, Hard coating (3H)
Luminance 700 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 80/80/70/70(CR≥10) Left / Right/UP /Down
Response 15/10 (Typ.)(Tr/Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 262K , 50% (CIE1931)
Backlight  50K hours,with LED Driver
Net Weight 150/165g (Typ.)
Touchscreen without
Signal Type/interface Type CMOS (1 ch, 6-bit) , 33 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 85 °C
Operating Temp.: -30 ~85 °C
Package 60 pcs/ carton

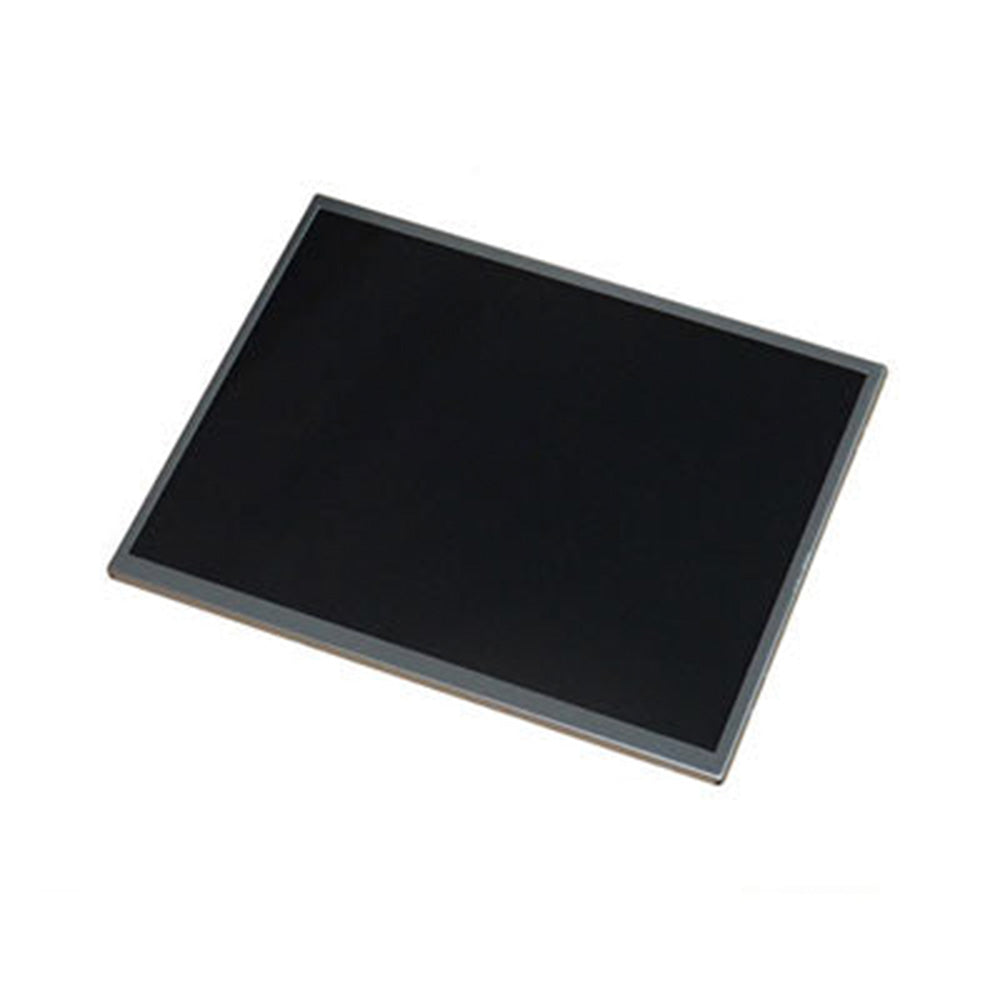

AUO 5.7inch LCD screen G057VN01 V2, with 700 luminance and -30-85°C operating temp.

G057VN01 V2,has standard 640*480 resolution,View angle at 12 o’clock.

Has 50000 hours lifetime of backlight, can support long term operating.
G057VN01 V2 often be used in handheld devices.

Technical specifications are loading…
