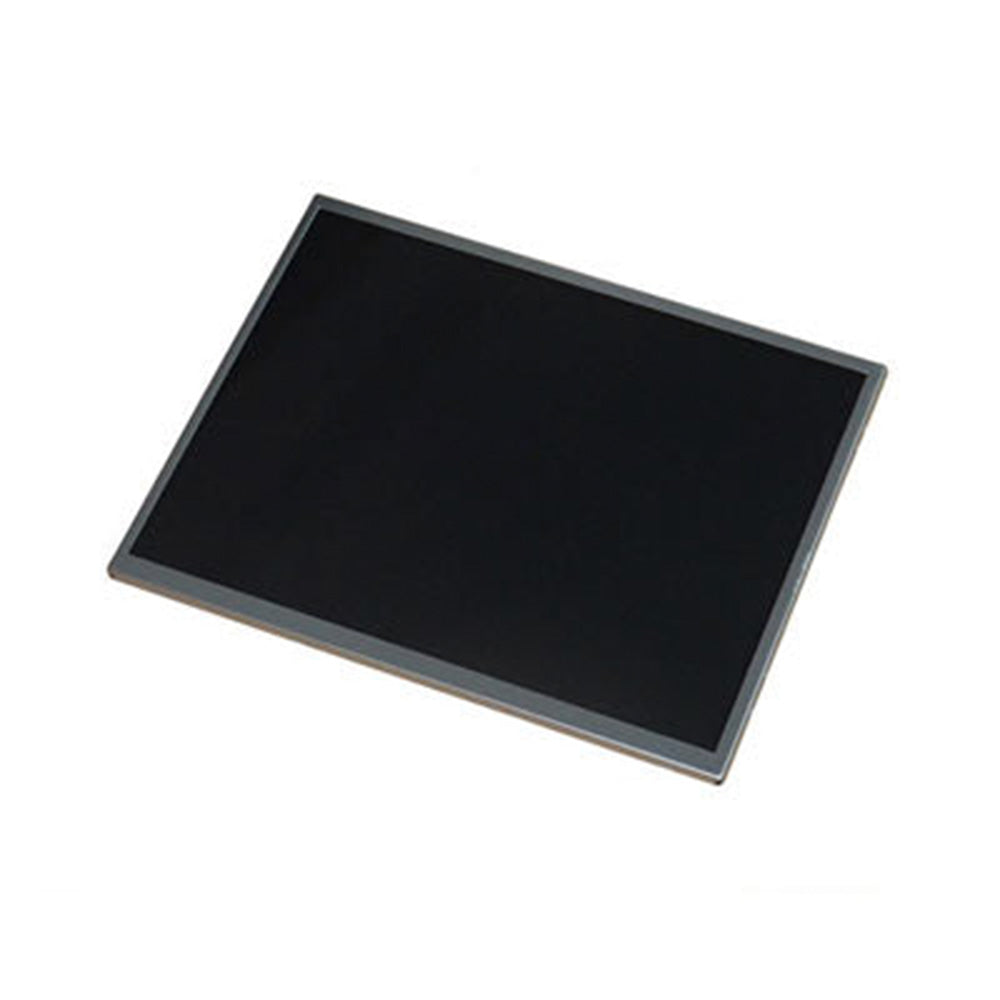

AUO

AUO G055HAN01.0

$48.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G055HAN01.0
  • Brand:AUO
  • Size:5.5 inch
  • Resolution:1080*1920
  • Brightness:500 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:MIPI (4 data lanes) , FPC , 30 pins
  • CR:1000 : 1
  • Operating Temp.: -20-70℃
  • Parameters
Manufacturer AUO
Model Name G055HAN01.0
Screen Size 5.5
Pixel Number 1080(RGB)×1920   [FHD]
Active Area(mm)
Outline(mm) 70.5 × 128.7 mm (H×V)
Bezel Area(mm) 68.04 × 120.96mm (H×V)
Treatment Hard coating
Luminance 500 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10) Left / Right/UP /Down
Response 25 (Typ.)(Tr/Td) ms
Work Mode AHVA, Normally BLACK, Transmissive
Color Depth 16.7M , 70% NTSC
Backlight 15K hours,NO Driver
Net Weight
Touchscreen without
Signal Type/interface Type MIPI (4 data lanes) , FPC , 30 pins
Voltage Supply 5.0V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~70 °C
Package 144 pcs/ carton


AUO 5.5 inch LCD Panel  G055HAN01.0 has 1080*1920 resolution and brightness 500nit

High contrast 1000:1 with  good color depth 16.7M.
