AUO

AUO G050VTN01.0

$41.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G050VTN01.1
  • Brand:AUO
  • Size:5 inch
  • Resolution:800*480
  • Brightness:1000 cd/m²
  • Viewing angle:75/75/65/75
  • Interface:40 pins TTL (1 ch, 8-bit) , FPC
  • CR:600:1
  • Operating Temp.: -20 ~ 70 °C



  • Parameters
Manufacturer AUO
Model Name G050VTN01.1
Screen Size 5.0
Pixel Number 800(RGB)×480 (WVGA)
Active Area(mm) 108×64.8 mm (H×V)
Outline(mm) 119.33×79.18 ×8 mm (H×V×D)
Bezel Area(mm) 111.25×68.7mm (H×V)
Treatment Anti-glare, Hard coating (3H)
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 600 : 1 (Typ.) (TM)
Viewing Angle 75/75/65/75(CR≥10) Left / Right/UP /Down
Response 20 (Typ.)(Tr/Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 16.2M , 50% (CIE1931)
Backlight  40K hours,NO Driver
Net Weight 79.0±5.0g  (Typ.)
Touchscreen without
Signal Type/interface Type 40 pins   TTL (1 ch, 8-bit) , FPC
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~70 °C
Package 90 pcs/ carton

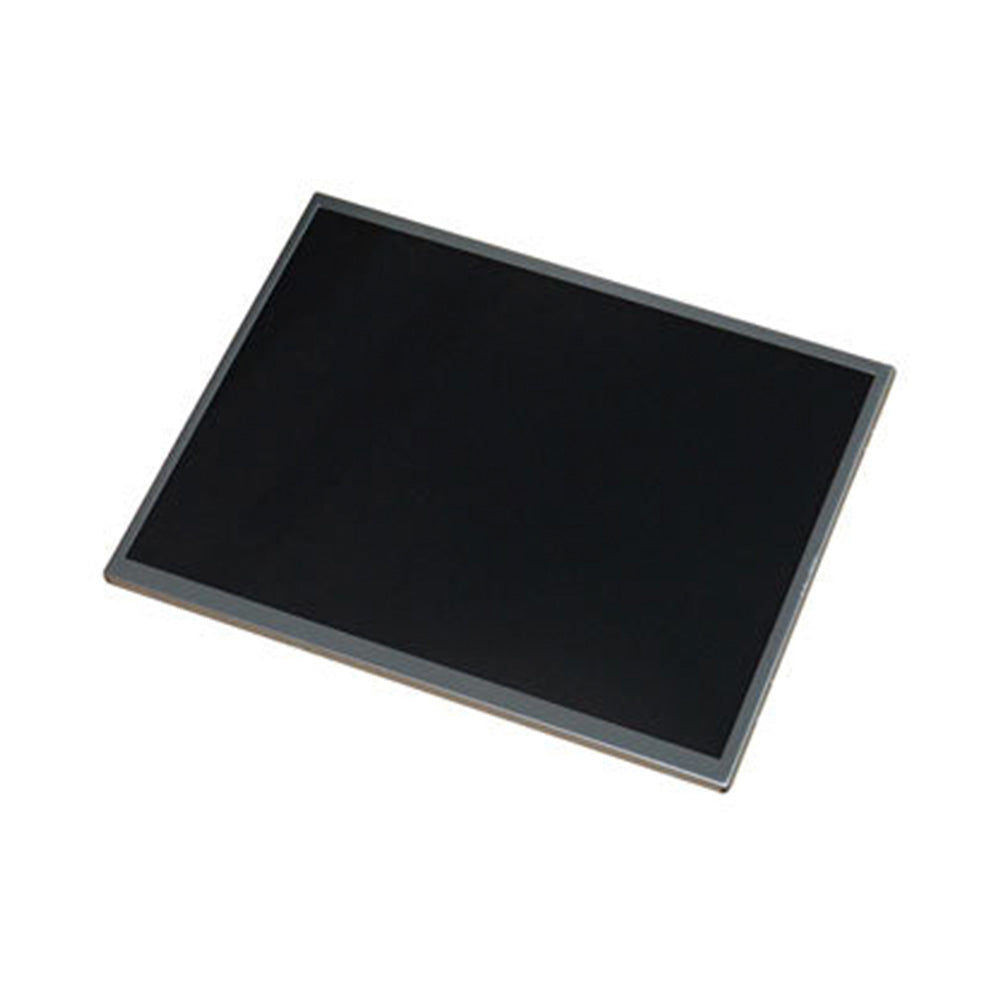

AUO 5 inch LCD Panel  G050VTN01.1
with resolution 800*480, brightness 1000nits.

High contrast 600:1, long lifetime 40,000 hr, color depth 16.2M
Resistive and Capacitive touch optional.
HDMI driver board and LVDS cables.
