AUO

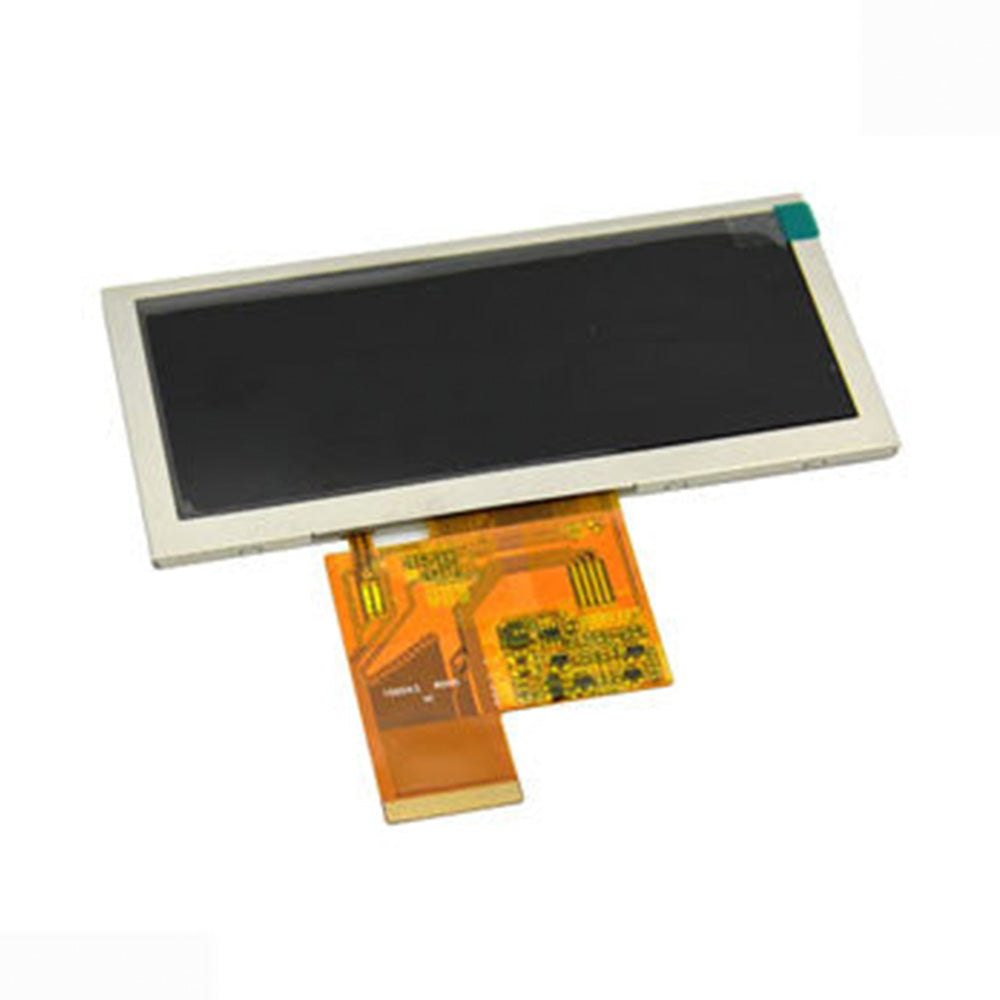

AUO G043FTN01.0

$41.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G043FTN01.0
  • Brand:AUO
  • Size:4.3 inch
  • Resolution:480*272
  • Brightness:550 cd/m²
  • Viewing angle:80/80/55/65
  • Interface: Parallel RGB (1 ch, 8-bit) , FPC , 40 pins
  • CR:400 : 1
  • Operating Temp.: -20-70℃
  • Parameters
Manufacturer AUO
Model Name G043FTN01.0
Screen Size 4.3
Pixel Number 480(RGB)×272   [WQVGA]
Active Area(mm) 95.04 × 53.856  mm (H×V)
Outline(mm) 105.5 × 67.2 mm (H×V)
Bezel Area(mm) 100.8 × 58.76 mm (H×V)
Treatment Hard coating
Luminance 550 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (TM)
Viewing Angle 80/80/55/65(CR≥10)
Left/Right/UP/Down
Response 15/20 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 262K , 52% NTSC
Backlight 20K hours,without LED Driver
Net Weight 44 g (Typ.)
Touchscreen without
Signal Type/interface Type Parallel RGB (1 ch, 8-bit) , FPC , 40 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~80 °C
Operating Temp.: -20 ~70 °C
Package 50 pcs/ carton


AUO 4.3 inch LCD screen G043FTN01.0, with 550 luminance and -20-70°C operating temp.

G043FTN01.0 has standard 480*272 resolution, full-view angle.

20000 hours lifetime of backlight.
G043FTN01.0 used in  handheld devices.
