FriendlyElec Smart6818 CPU Board | Octa-Core ARM Cortex-A53 | 2GB RAM | 16GB eMMC | Industrial Module

$70.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

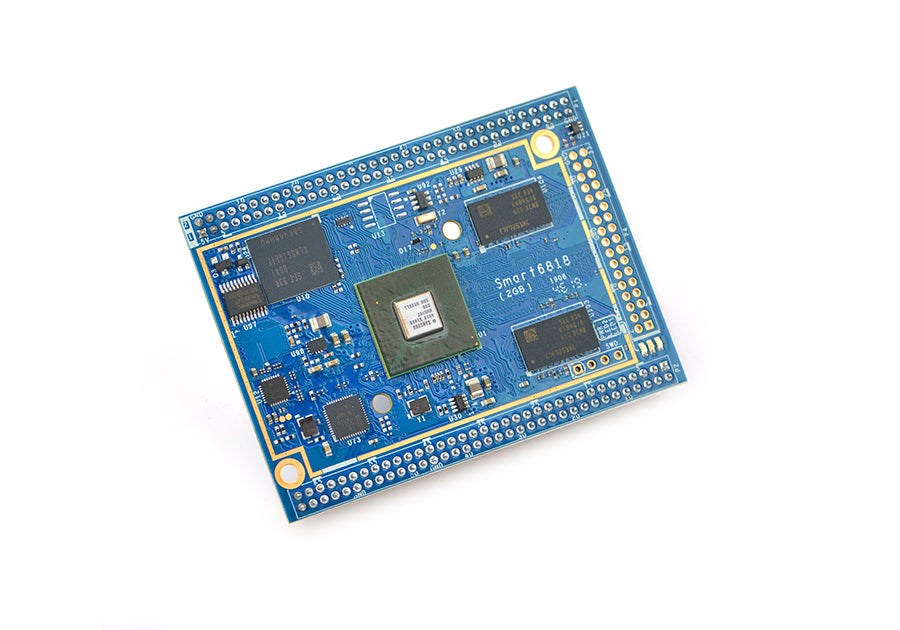

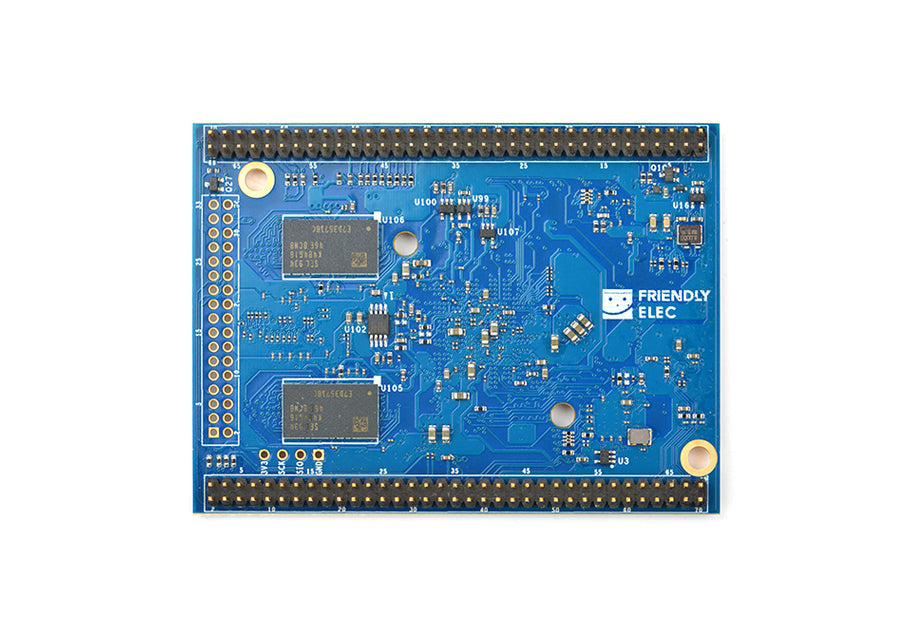

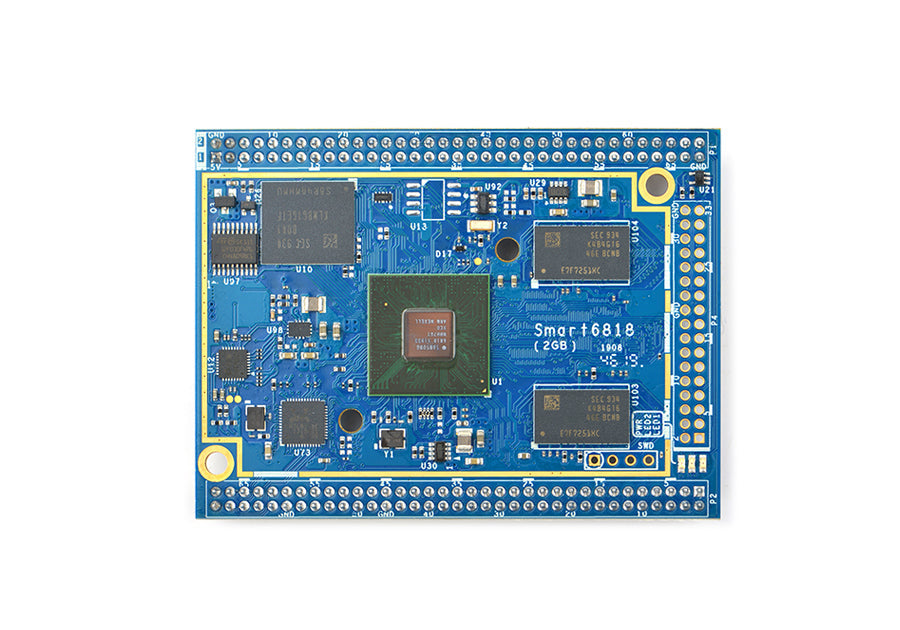

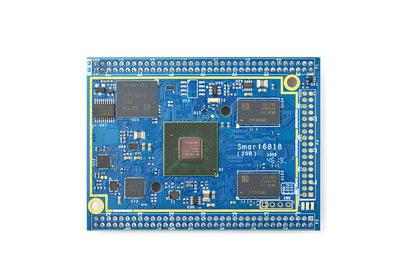

The FriendlyElec Smart6818 CPU Board is a high-performance industrial ARM module designed for embedded systems, industrial controllers, and custom carrier-board based solutions.

Powered by the Samsung S5P6818 octa-core Cortex-A53 SoC, the Smart6818 delivers reliable multi-core performance with dynamic frequency scaling up to 1.4 GHz.

✔ Octa-Core ARM Cortex-A53 Industrial CPU Board
✔ 2GB DDR3 RAM • 16GB eMMC Storage
✔ Compact • Low Power • Long-Term Availability

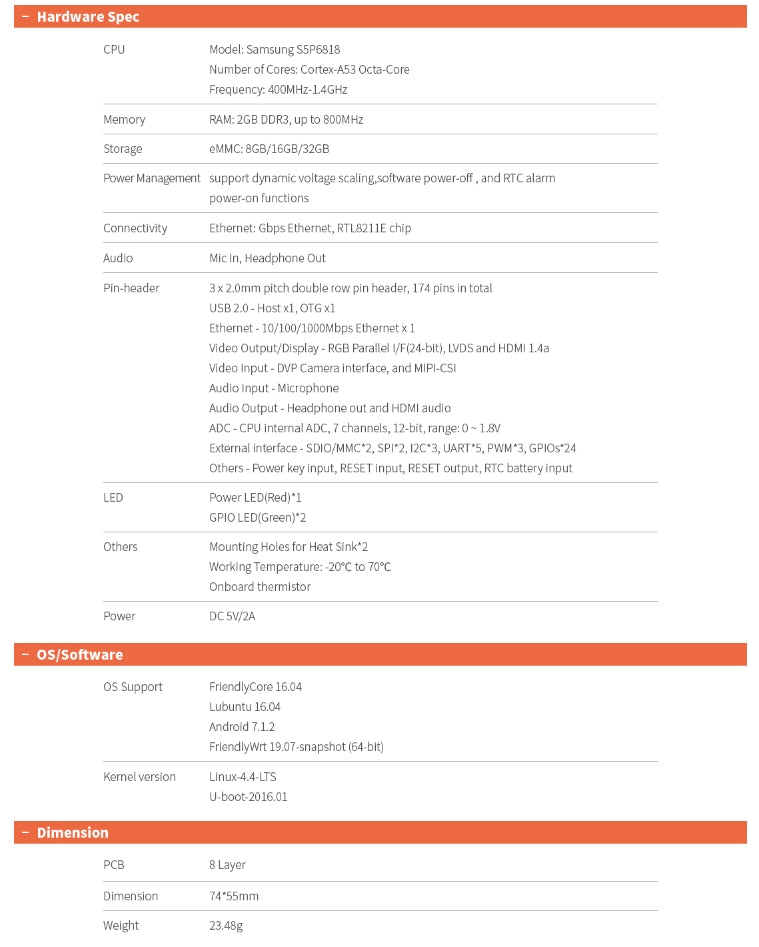

Processor & Memory

Samsung S5P6818 SoC
Octa-core ARM Cortex-A53
Up to 1.4 GHz dynamic scaling
2GB DDR3 RAM
16GB onboard eMMC

Interfaces & Expansion

174-pin dual-row pin headers (P1, P2, P4)
GPIO, I2C, SPI, UART, PWM support
Gigabit Ethernet interface
Audio output support

Display & Carrier Support

Compatible with FriendlyElec LCDs
3.5″ / 4.3″ / 5″ / 7″ / 10.1″ displays
Works with Smart4418/6818 SDK carrier board
Supports SATA & mini-PCIe via carrier

Power Management: Software power on/off & wake-up support
Use Case: Industrial control, HMI, custom embedded platforms

Smart6818 CPU Board is intended for integration into custom carrier boards and industrial systems.
