NanoPi Zero2 - Compact and Versatile Development Board

SKU Zero2

NanoPi Zero2 - Compact and Versatile Development Board

The NanoPi Zero2 is a small yet powerful development board designed for various applications. It features a robust RK3566 SoC, making it suitable for IoT projects, media centers, and more.

Resources
Official documentation (Wiki):
FriendlyElec product page:

Specifications may vary by configuration. Contact us for project-specific options.

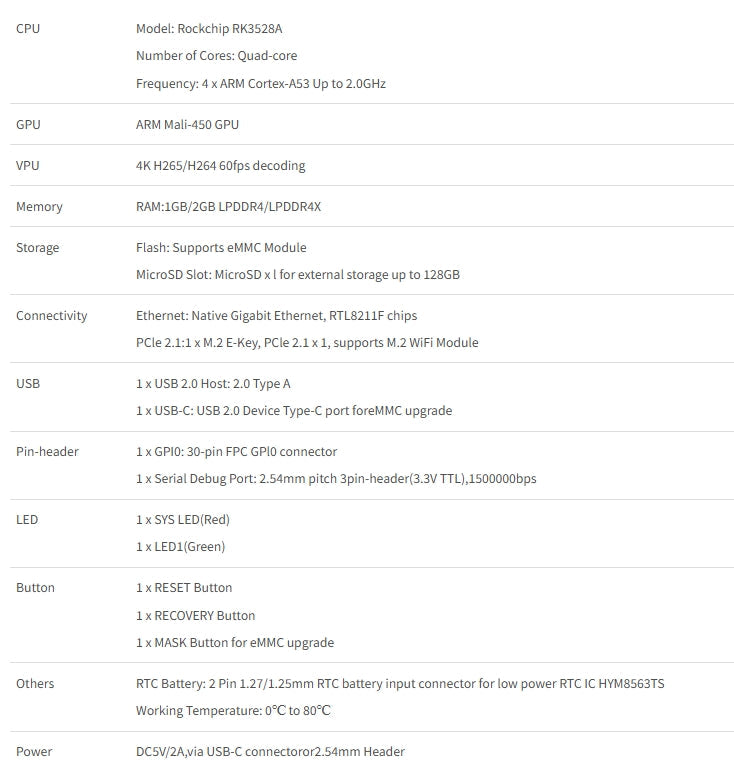

Specification Details
SoC Rockchip RK3528A
RAM 1GB/2GB LPDDR4/LPDDR4X
Flash Supports eMMC Module
Ethernet one Native Gigabit Ethernet
Debug Debug UART, 3.3V level, 1500000bps
LEDs 2 x GPIO Controlled LEDs (SYS & LED1)
Power supply DC 5V/2A, via USB-C connector or 2.54mm Header
PCB Size 45*45*1.2mm
Temperature measuring range 0℃ to 80℃
CPU / SoC RK3528
