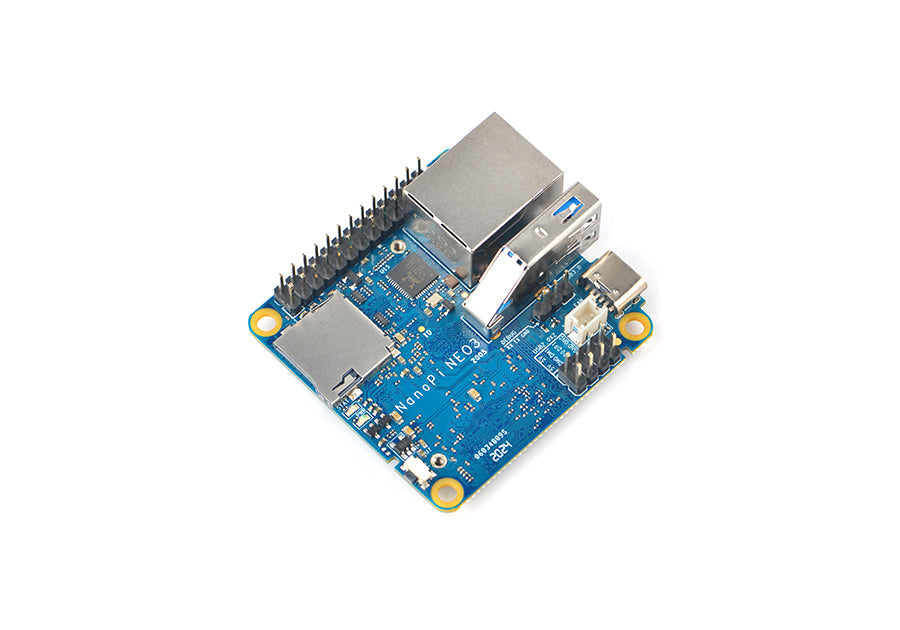

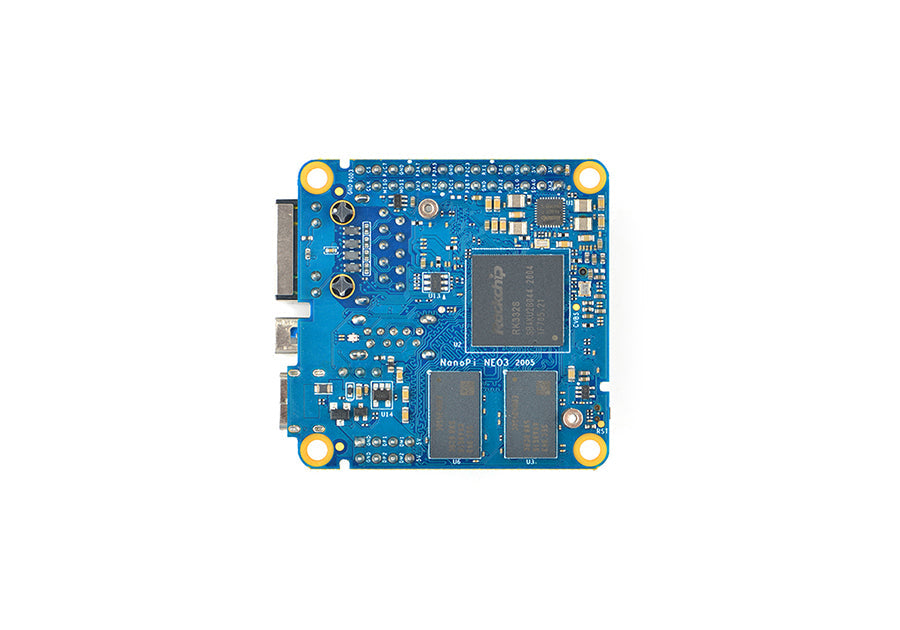

NanoPi NEO3 Plus- High-Performance Single Board Computer

$25.50


NanoPi NEO3 Plus - High-Performance Single Board Computer

SKU Neo3LTS-1G-B

NanoPi NEO3 Plus - High-Performance Single Board Computer

Prepare the following items before using your NanoPi NEO3. This guide will help you set up your device efficiently.

Technical specifications
RAM 1GB/2GB DDR4
LAN 10/100/1000M Ethernet with unique MAC
USB Host 1x USB3.0 Type A and 2x USB2.0 on 2.54mm pin header
MicroSD Slot MicroSD x 1 for system boot and storage
LED Power LED x 1, System LED x 1
Key User Button x 1
Fan 2Pin JST ZH 1.5mm Connector for 5V Fan
GPIO 2.54mm pitch 26 pin-header, include I2C, UART, SPI, I2S, GPIO
Serial Debug Port 2.54mm pitch 3 pin-header, 1500000bps
Power 5V/1A, via Type-C or GPIO
PCB Dimension 48 x 48mm
Working Temperature -20℃ to 70℃
Weight 22g

Specifications may vary by configuration. Contact us for project-specific options.

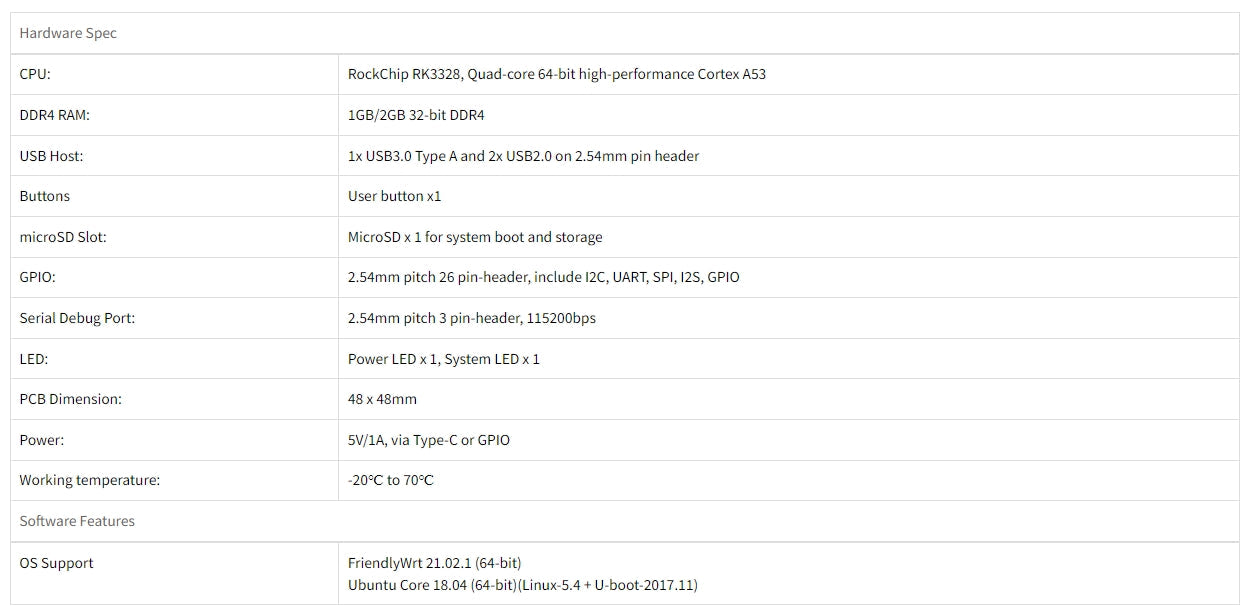

Specification Details
Soc RockChip RK3328, Quad-core 64-bit high-performance Cortex A53
RAM 1GB/2GB DDR4
LAN 10/100/1000M Ethernet with unique MAC
USB Host 1x USB3.0 Type A and 2x USB2.0 on 2.54mm pin header
MicroSD Slot MicroSD x 1 for system boot and storage
LED Power LED x 1, System LED x 1
Key User Button x 1
Fan 2Pin JST ZH 1.5mm Connector for 5V Fan
GPIO 2.54mm pitch 26 pin-header, include I2C, UART, SPI, I2S, GPIO
Serial Debug Port 2.54mm pitch 3 pin-header, 1500000bps
Power 5V/1A, via Type-C or GPIO
PCB Dimension 48 x 48mm
Working Temperature -20℃ to 70℃
Weight 22g
CPU / SoC RK3328
