Friendly Elec NanoPC-T3 Plus Single Board Computer

$108.67

Friendly Elec NanoPC-T3 Plus Single Board Computer

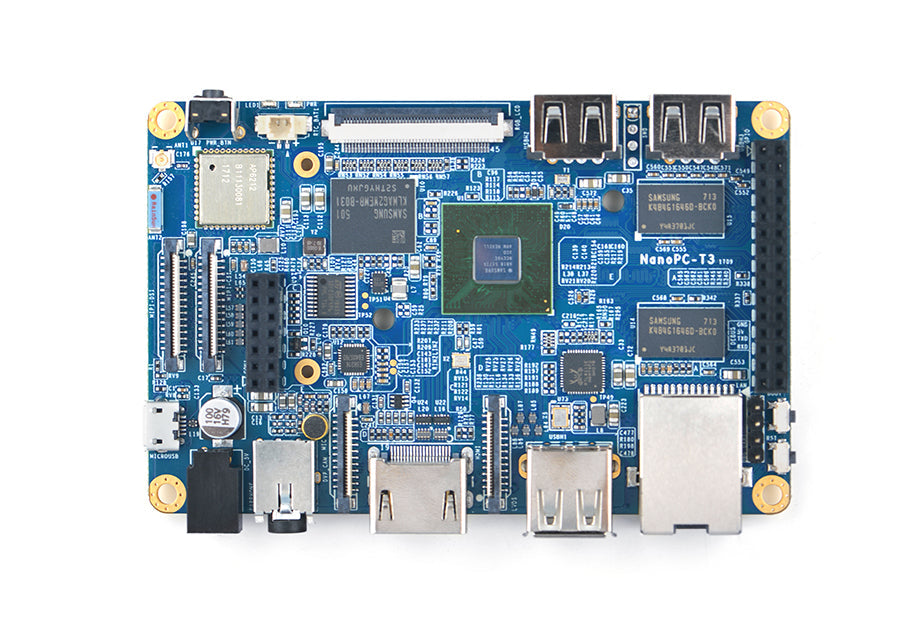

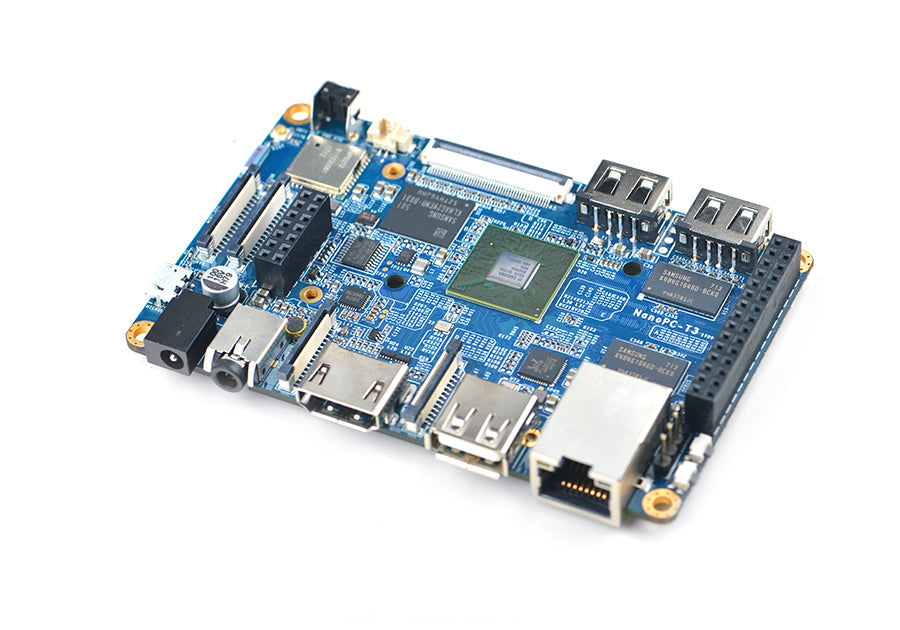

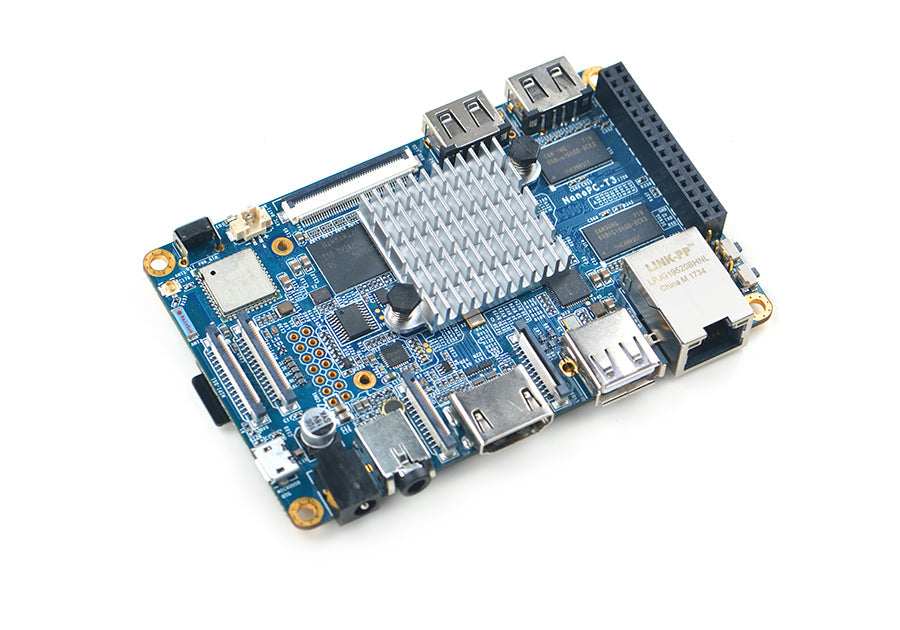

The Nano PC-T3 Plus is a super tiny Octa-Core Cortex-A53 ARM board, designed for professional and enterprise users. It uses Samsung's S5P6818 SoC, and has onboard 2G DDR3 RAM and 8G/32GB eMMC Flash.

Compared to the FriendlyELEC NanoPC-T2 the NanoPC-T3 Plus not only has all the T2’s interfaces and ports but also has a more powerful SoC.

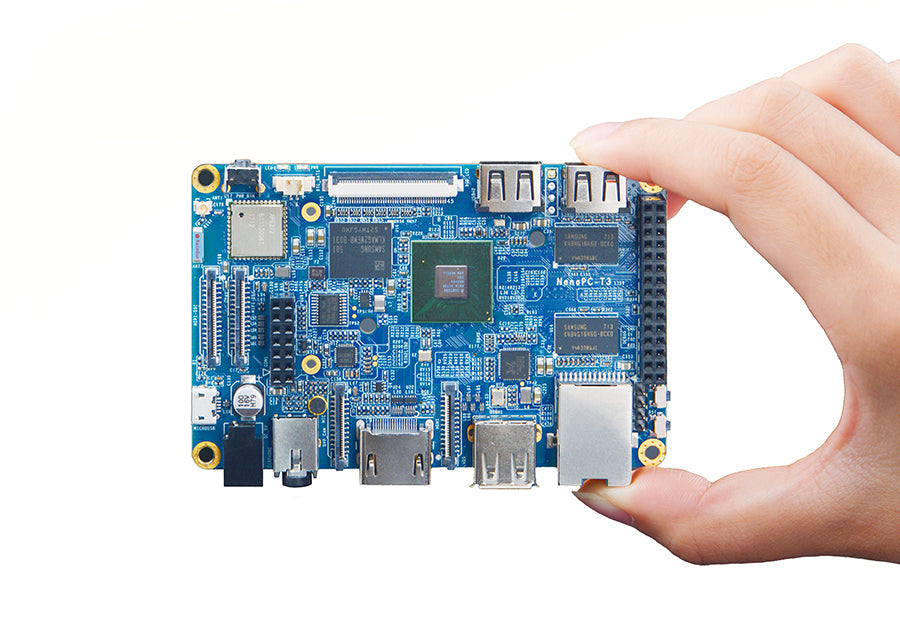

Its dynamic frequency scales from 400M up to 1.4GHz. It has 16G eMMC onboard, a Gbps Ethernet, HDMI port, USB2.0 ports, 3.5 mm audio jack and onboard WiFi. It has two camera interfaces and two independent LCD interfaces. Its GPIOs are compatible with RPi's GPIO. Its size is only 100 x 64 mm.

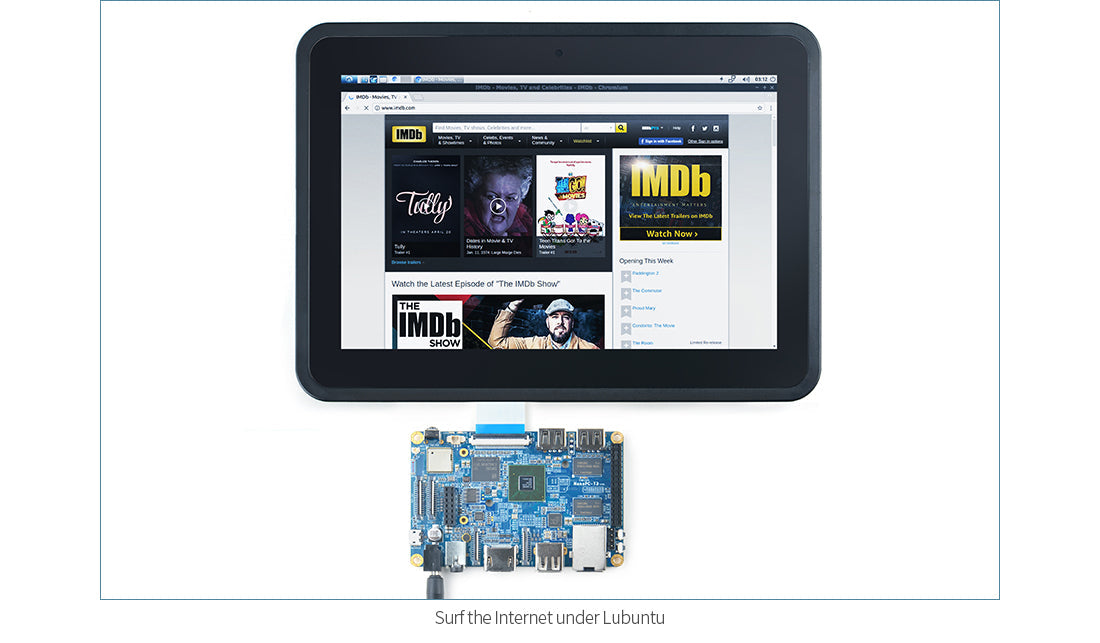

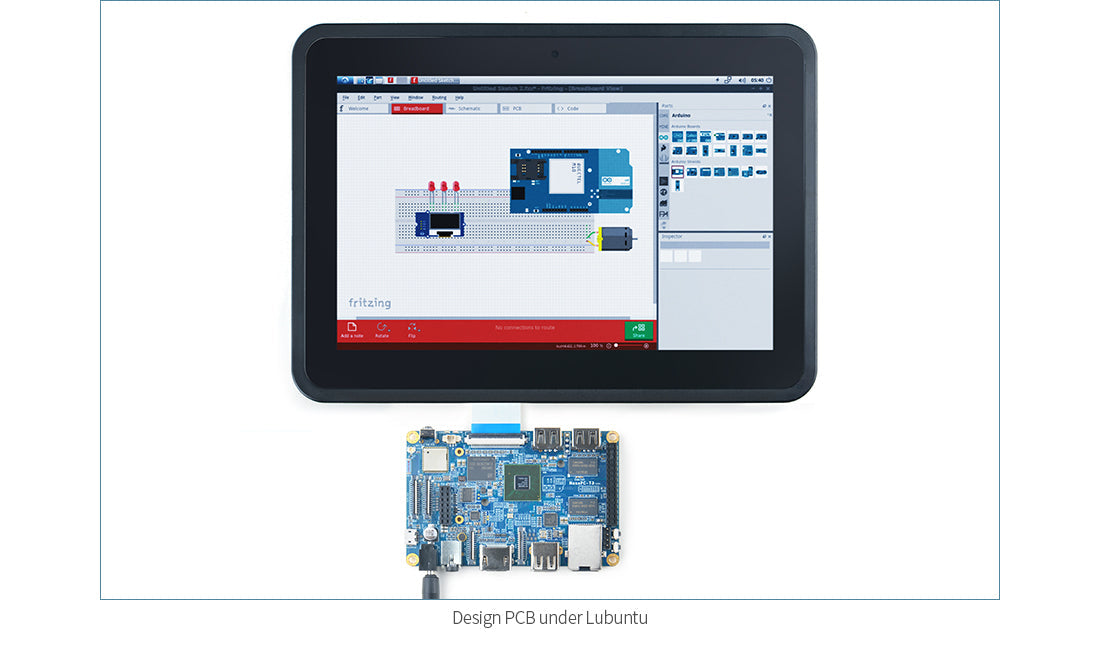

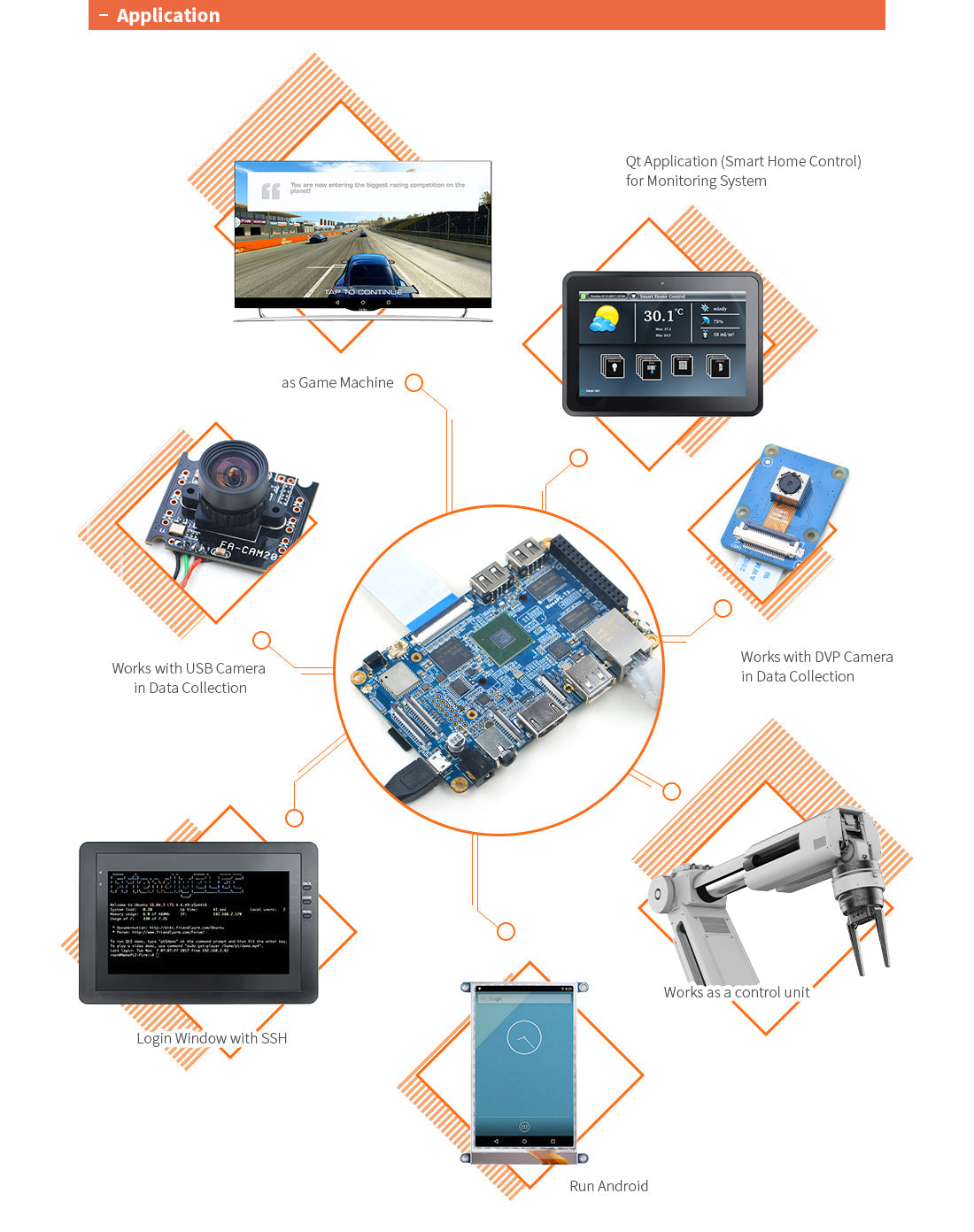

The Nano PC-T3 Plus has an MCU based power management system with timer setting for power on/off and supports dynamic voltage control with good performance and reliability. Porcelain antenna and serial debug port on board. To avoid overheat issues the NanoPC-T3 Plus has a heat sink with mounting holes.FriendlyElec provides image files of FriendlyCore, and Android for it. A Friendly Core image (based on Ubuntu16.04) has Qt-5.9 and Opena®ES1.1/2.0, and supports video playing with hardware-decoding/encoding. It is a good choice for rapidly developing products for applications in distributed computing, artificial intelligence and embedded systems.

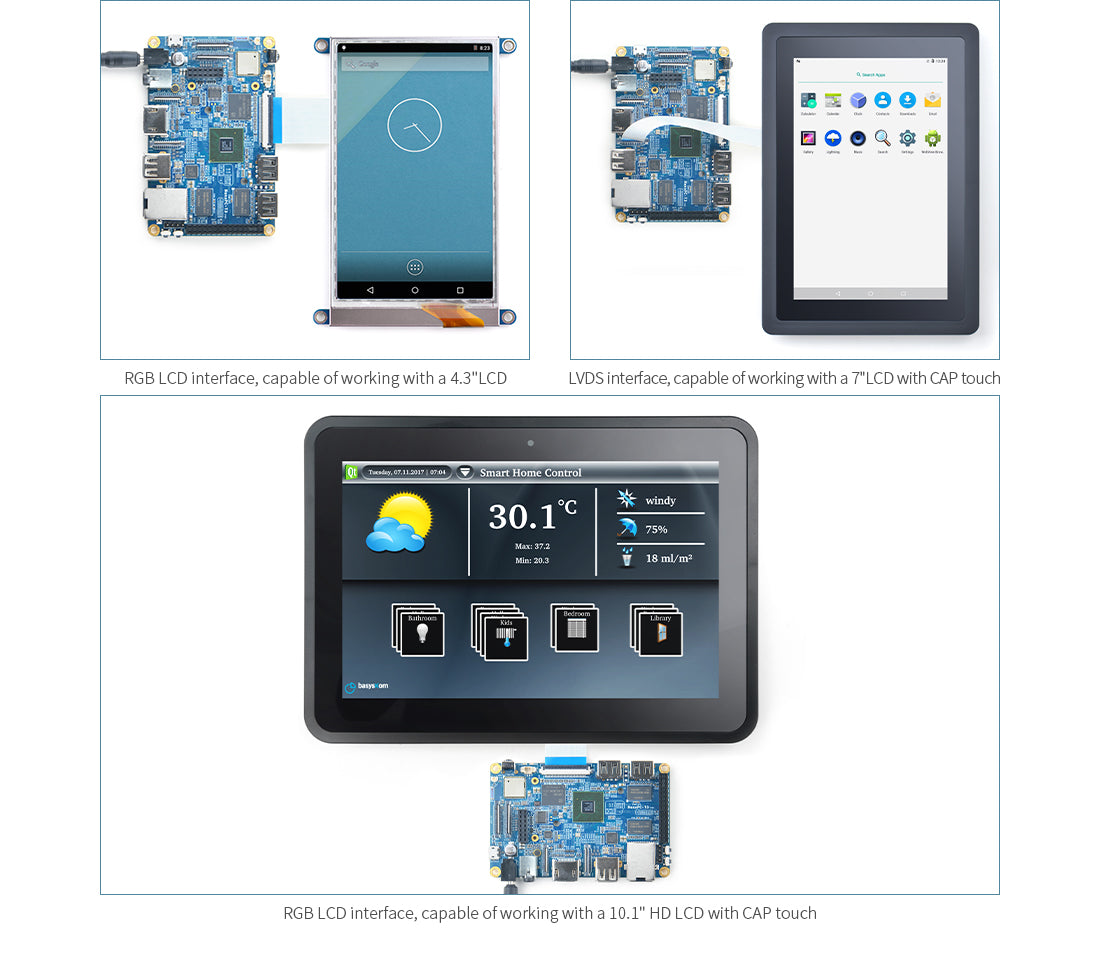

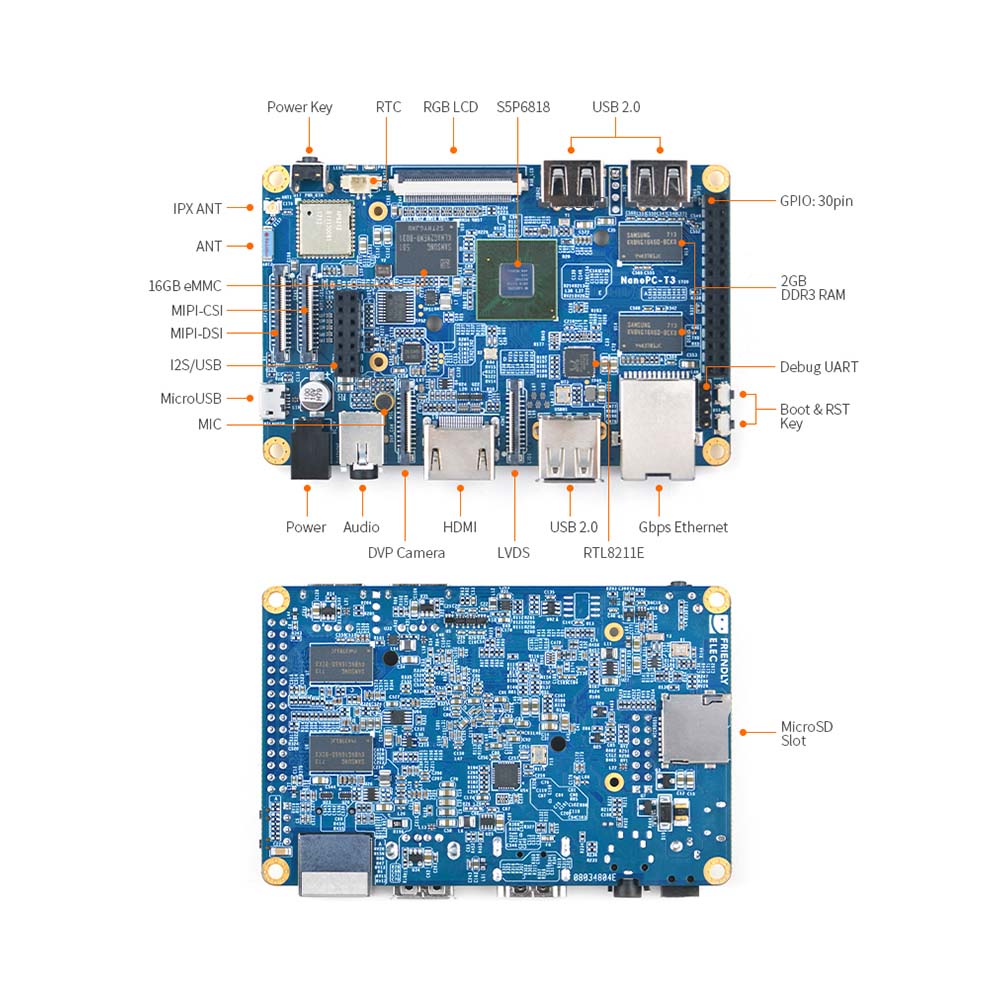

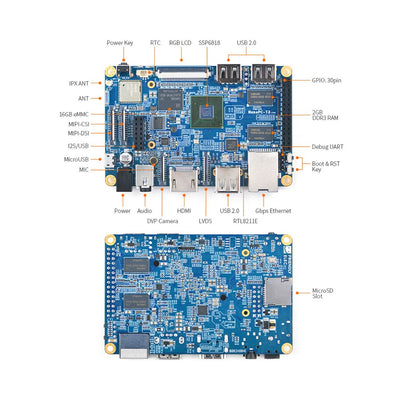

The NanoPC-T3 Plus has two camera interfaces: a DVP camera interface and a MIPI-CSI interface, and four video interfaces: HDMI 1.4A, LVDS, parallel RGB-LCD interface and MIPI-DSI interface. It supports RTC and has RTC interface pins. It has four USB ports with three being type A ports and one being 2.54mm pitch pin-headers.

The NanoPC-T3 Plus supports multiple OS systems e.g. Android5.1, Debian and UbuntoCore+Qt. It is an open source project with rich interfaces and ports. It is born a choice for professional and enterprise users.

Genova Industrial Products has partnered with Friendly Elec to bring you this outstanding development board, ensuring you get the best of both worlds - trusted quality and innovative design. Harness the power of Friendly Elec's expertise and Genova Industrial Products' commitment to excellence for your next project.

NanoPC T3 Plus

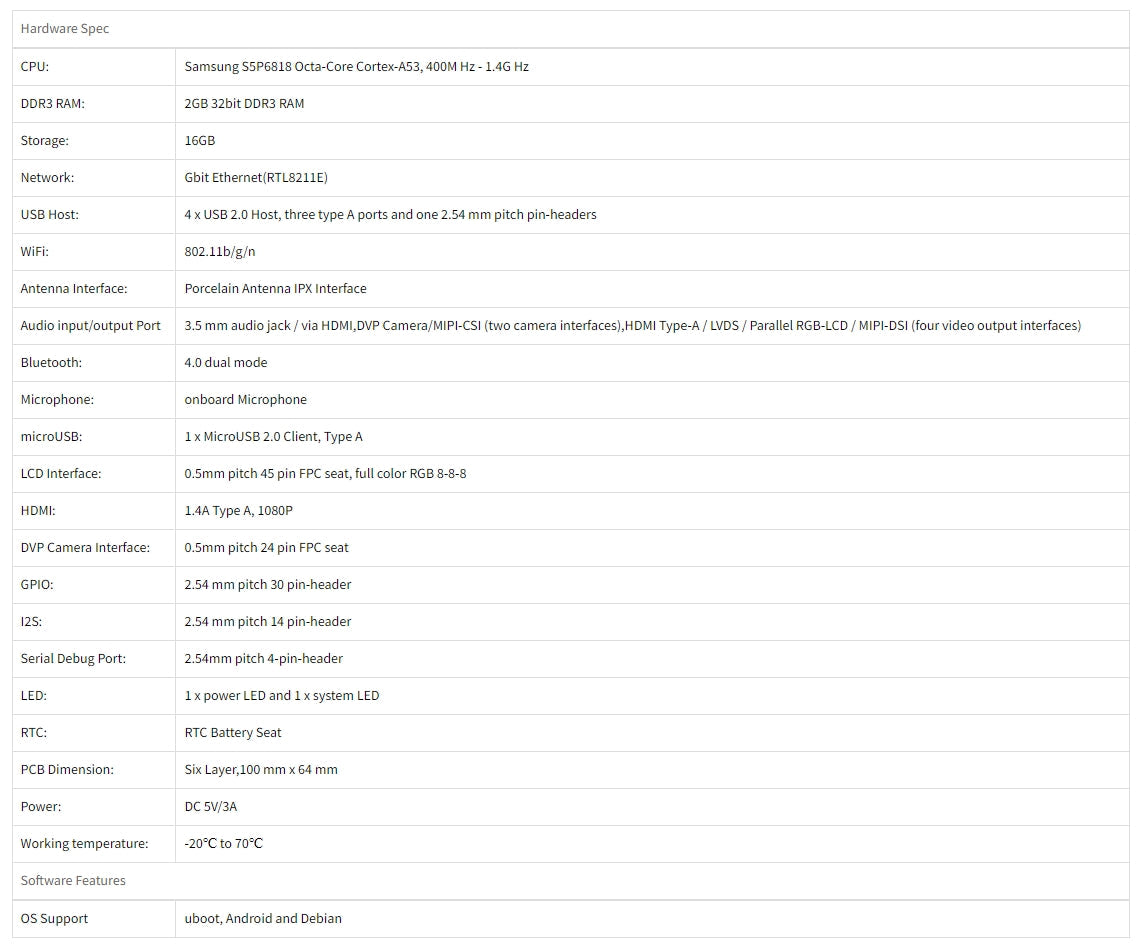

Specification Details
SoC Samsung S5P6818 Octa-Core Cortex-A53, 400M Hz - 1.4G Hz
Power Management Unit AXP228 PMU, it supports software power-off and wake-up.
System Memory 1GB/2GB 32bit DDR3 RAM
Storage 1 x SD Card Socket
Ethernet Gbit Ethernet(RTL8211E)
WiFi 802.11b/g/n
Bluetooth 4.0 dual mode
Antenna Porcelain Antenna IPX Interface
eMMC 8GB
Video Input DVP Camera/MIPI-CSI (two camera interfaces)
Video Output HDMI Type-A / LVDS / Parallel RGB-LCD / MIPI-DSI (four video output interfaces)
Audio 3.5 mm audio jack / via HDMI
Microphone onboard Microphone
USB Host 4 x USB 2.0 Host, two type A ports and two 2.54 mm pitch pin-headers
MicroUSB 1 x MicroUSB 2.0 Client, Type A
LCD Interface 0.5mm pitch 45 pin FPC seat, full color RGB 8-8-8
HDMI 1.4A Type A, 1080P
DVP Camera 0.5mm pitch 24 pin FPC seat
GPIO 2.54 mm pitch 30 pin-header
Serial Debug Port 2.54mm pitch 4-pin-header
User Key K1 (power), Reset
LED 1 x power LED and 2 x GPIO LED
Other Resources CPU’s internal TMU
RTC Battery RTC Battery Seat

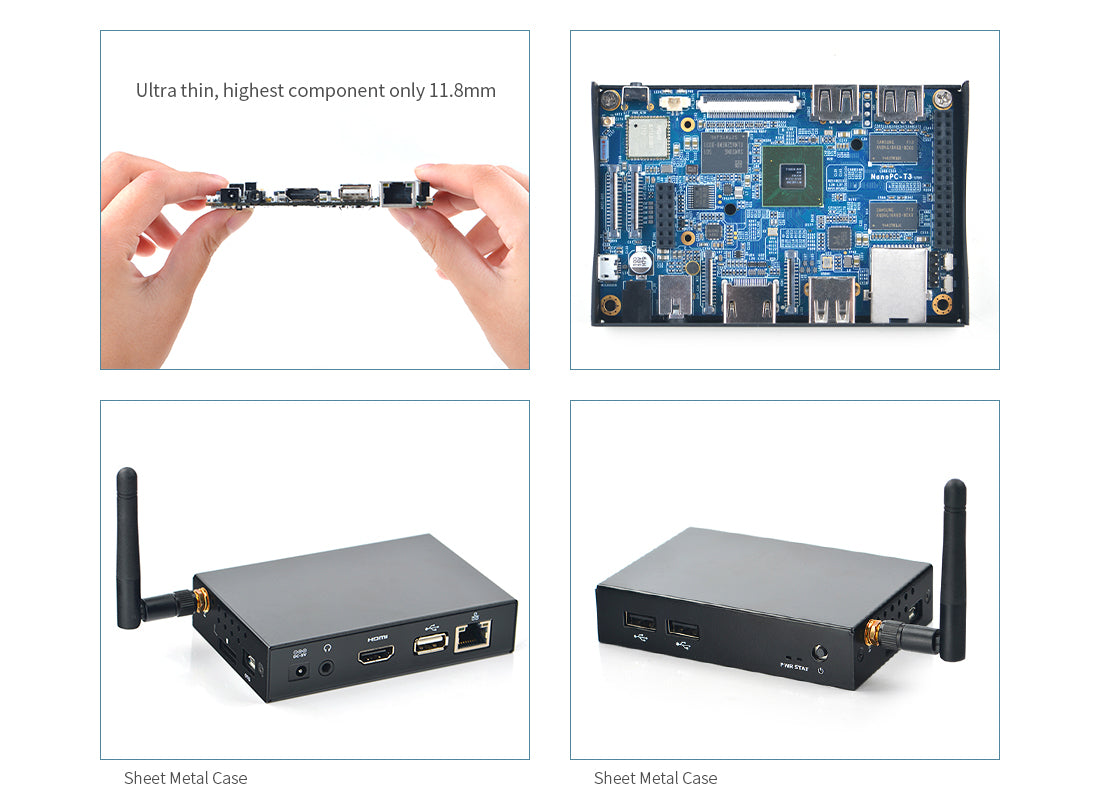

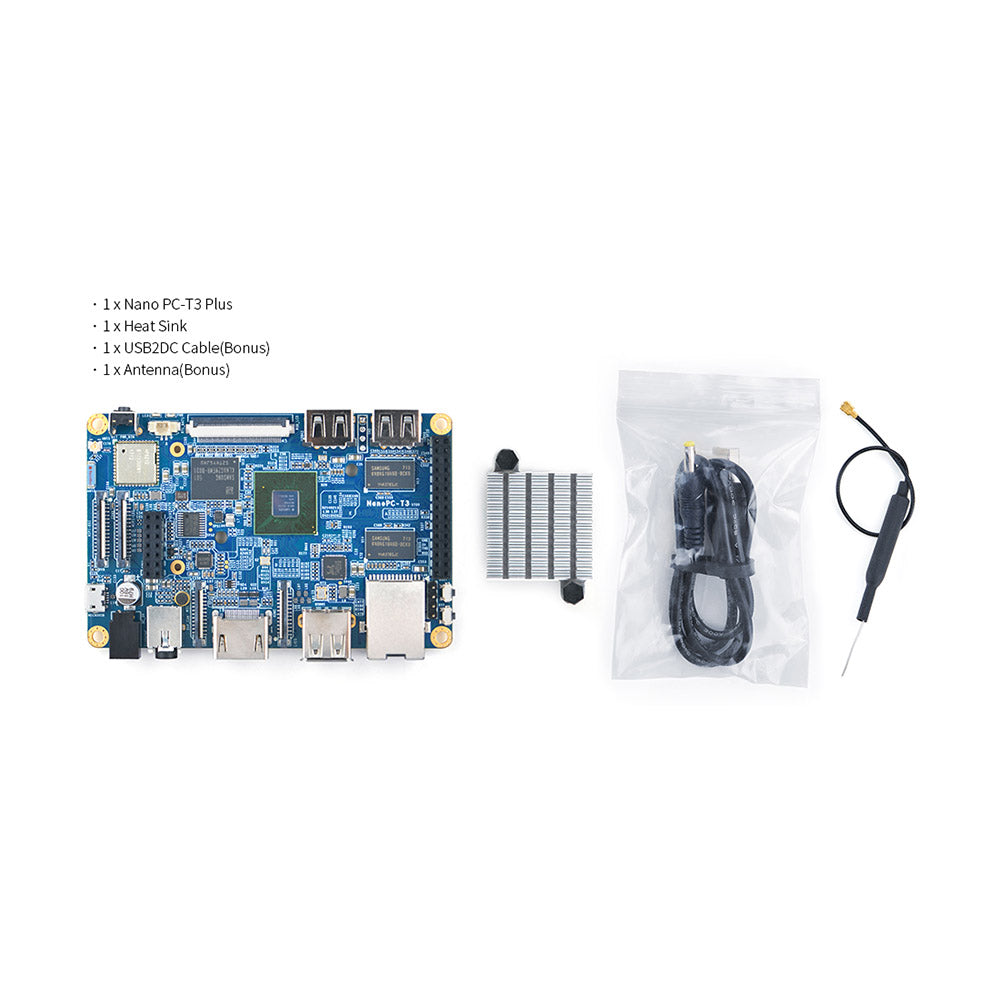

Heat Sink 1 x Heat Sink with mounting holes
Power DC 5V/2A
PCB Six Layer

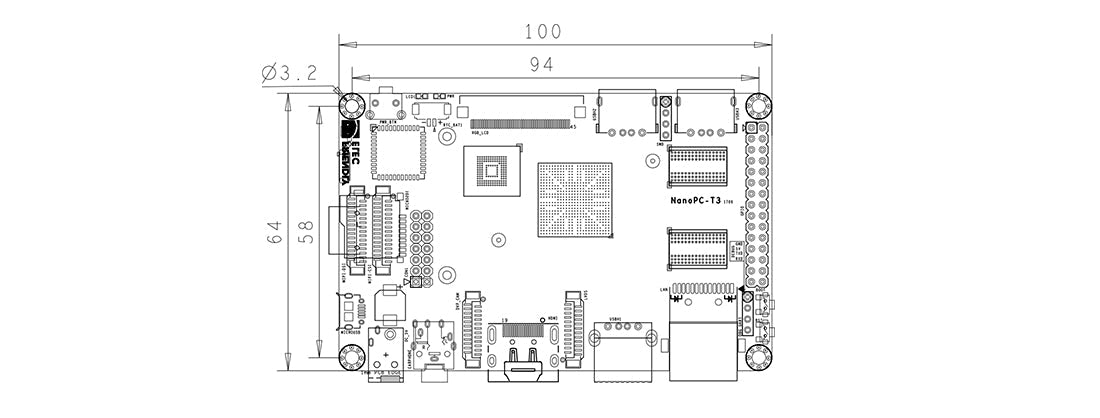

Dimension 100 mm x 60 mm
Working Temperature -40℃ to 80℃
OS/Software uboot, Android and Debian
CPU / SoC S5P6818
