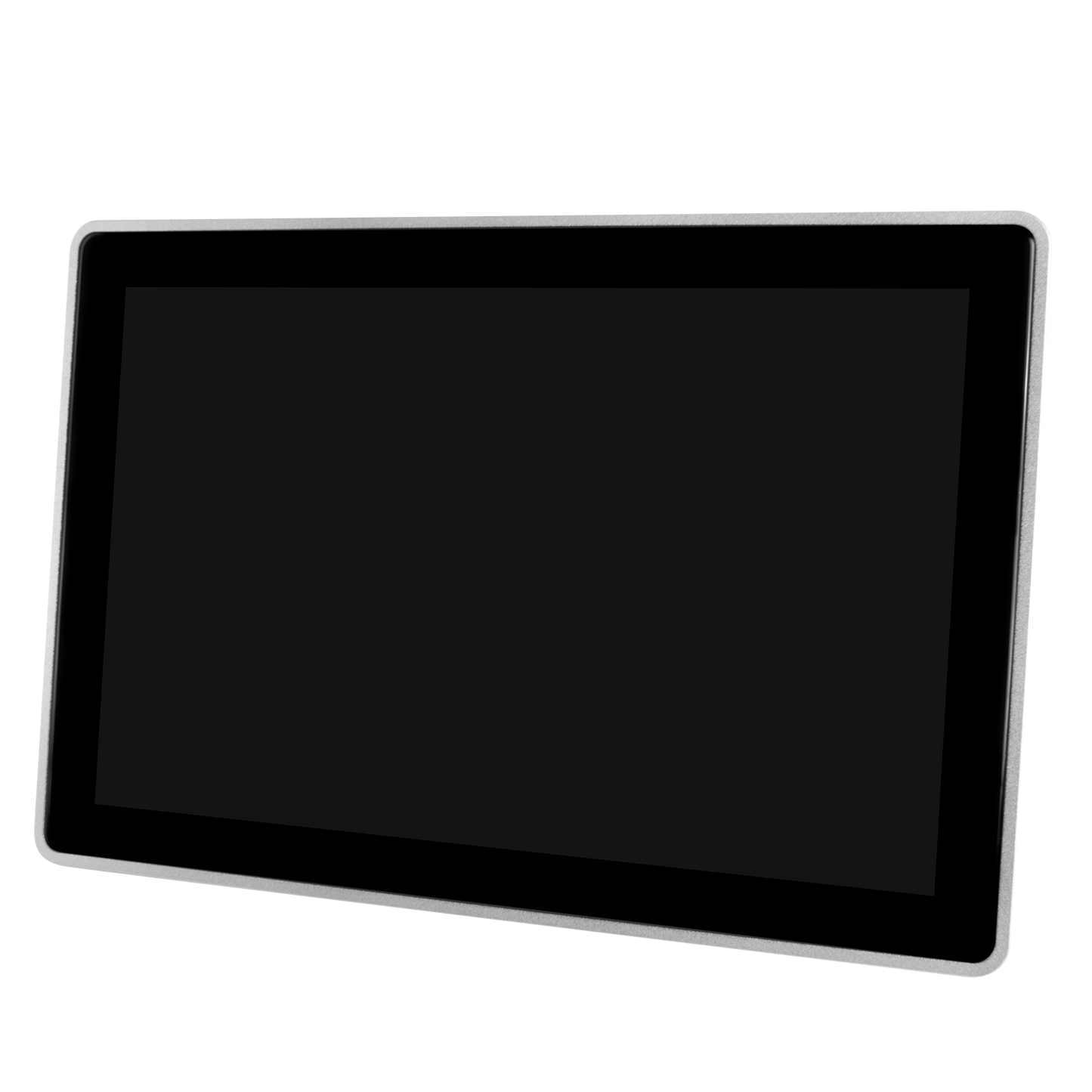

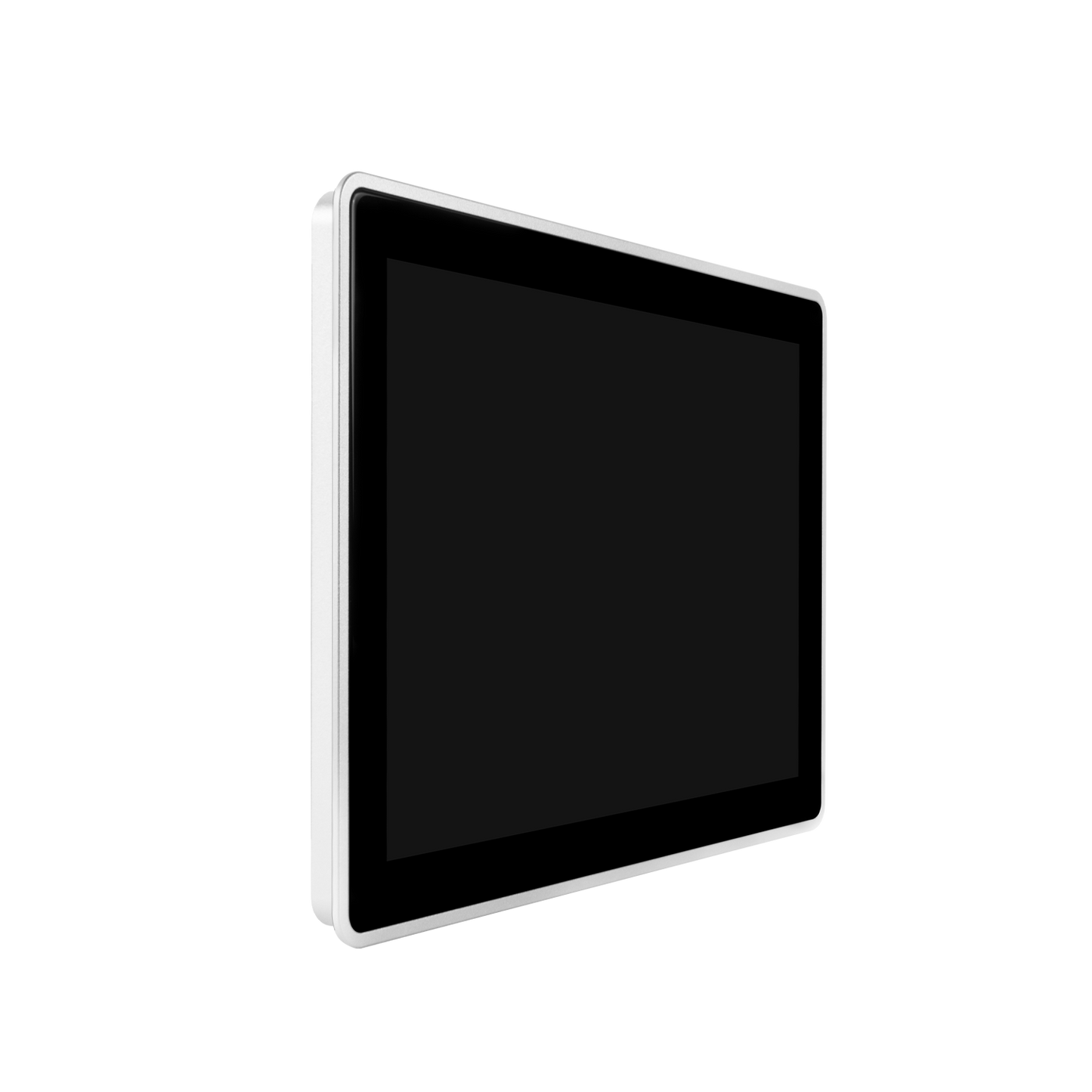

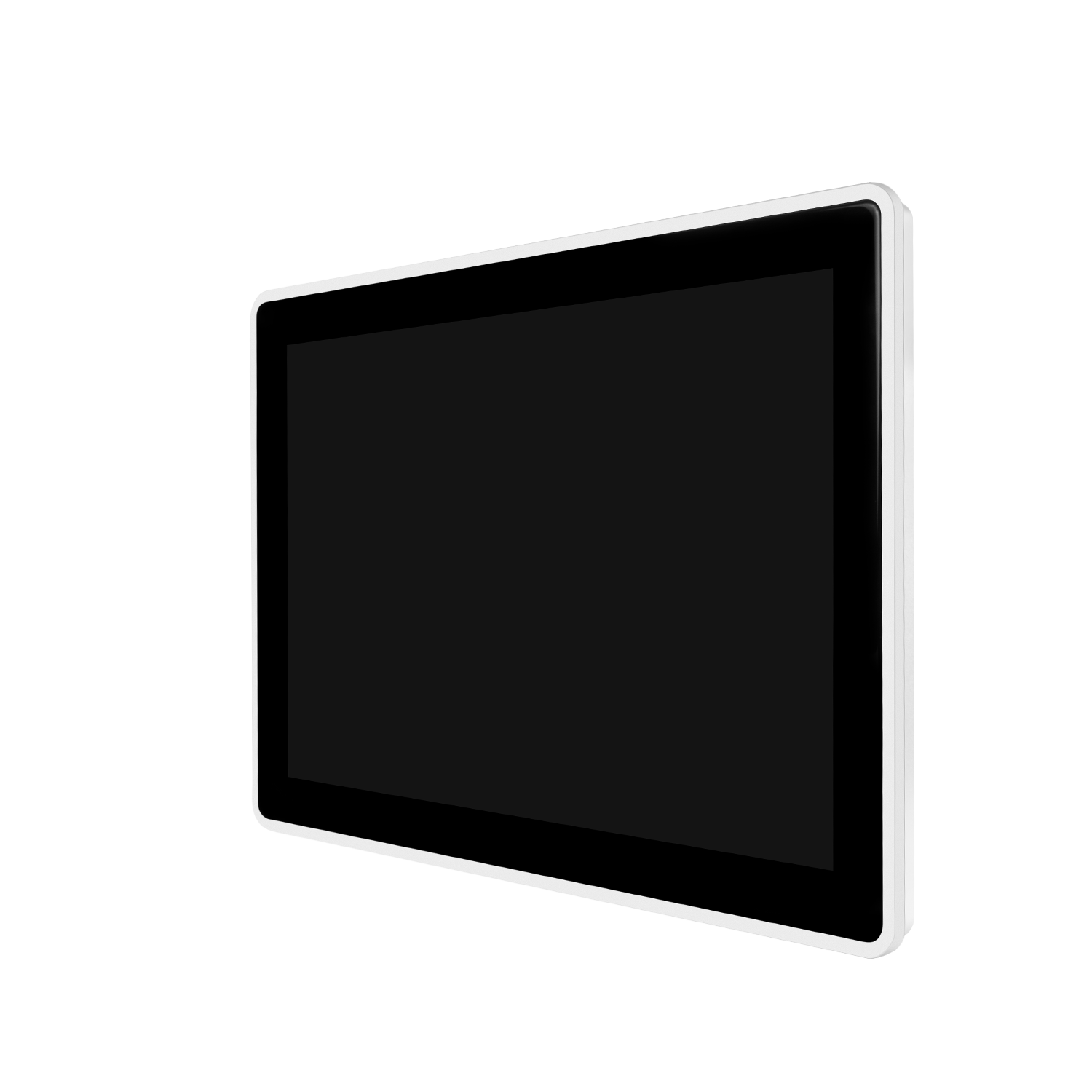

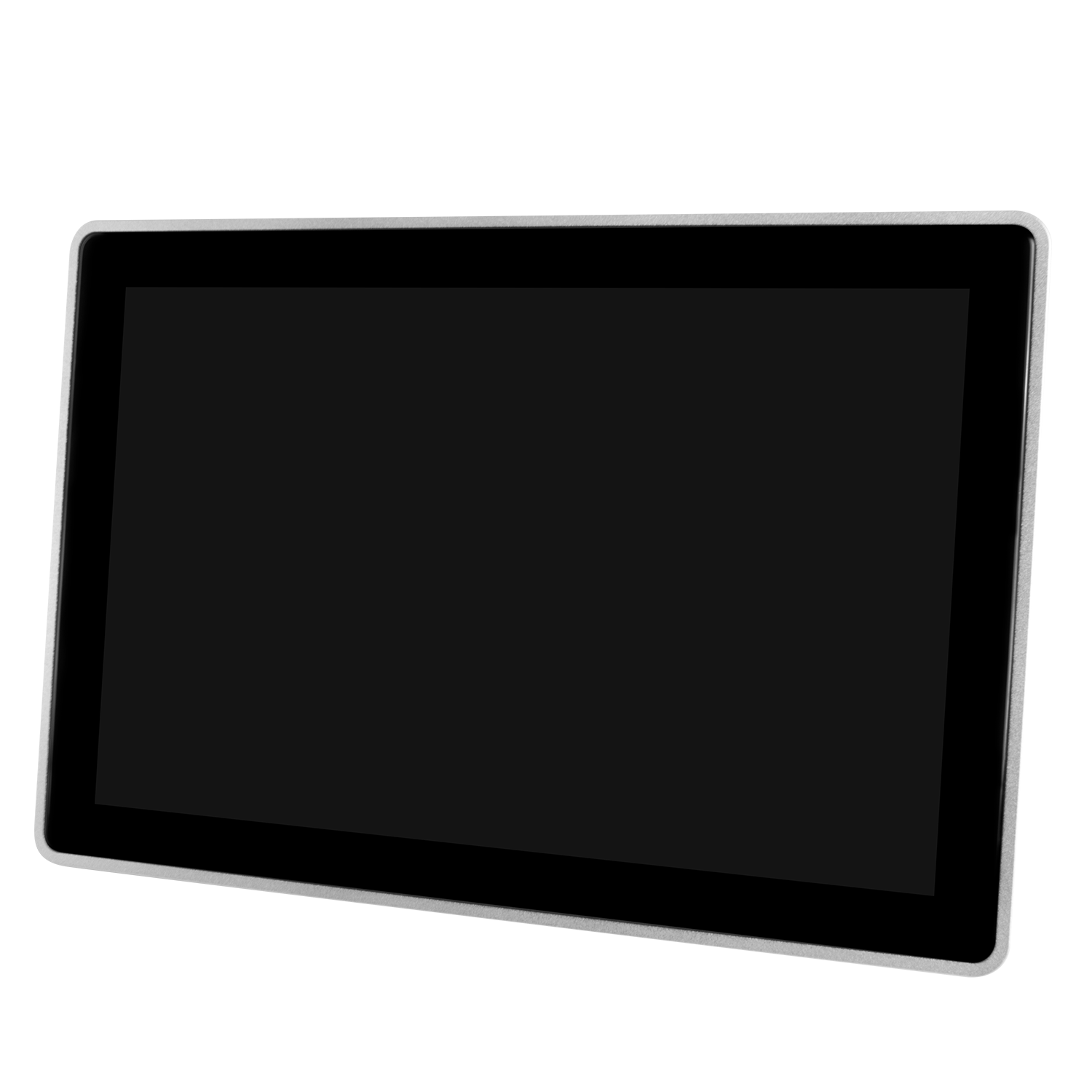

10.1" RK3568 All in One HMI Android Panel PC, IPS, AL Frame

$178.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

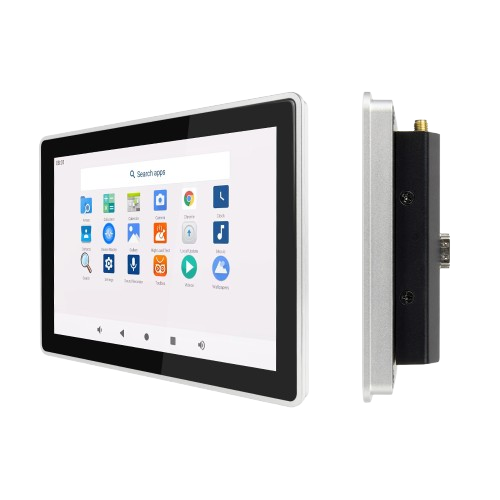

GeniusCore Embedded Systems "ControlHUB Series" Aluminum Frame Multiport Panel PC


10.1" inch IPS Screen, All in One HMI Android Panel PC, RK3568 2GB RAM 16GB ROM, Configurable 6COM TTL RS232 RS485, Optional CAN port



Model:
GFCX-A101L3568-2G16

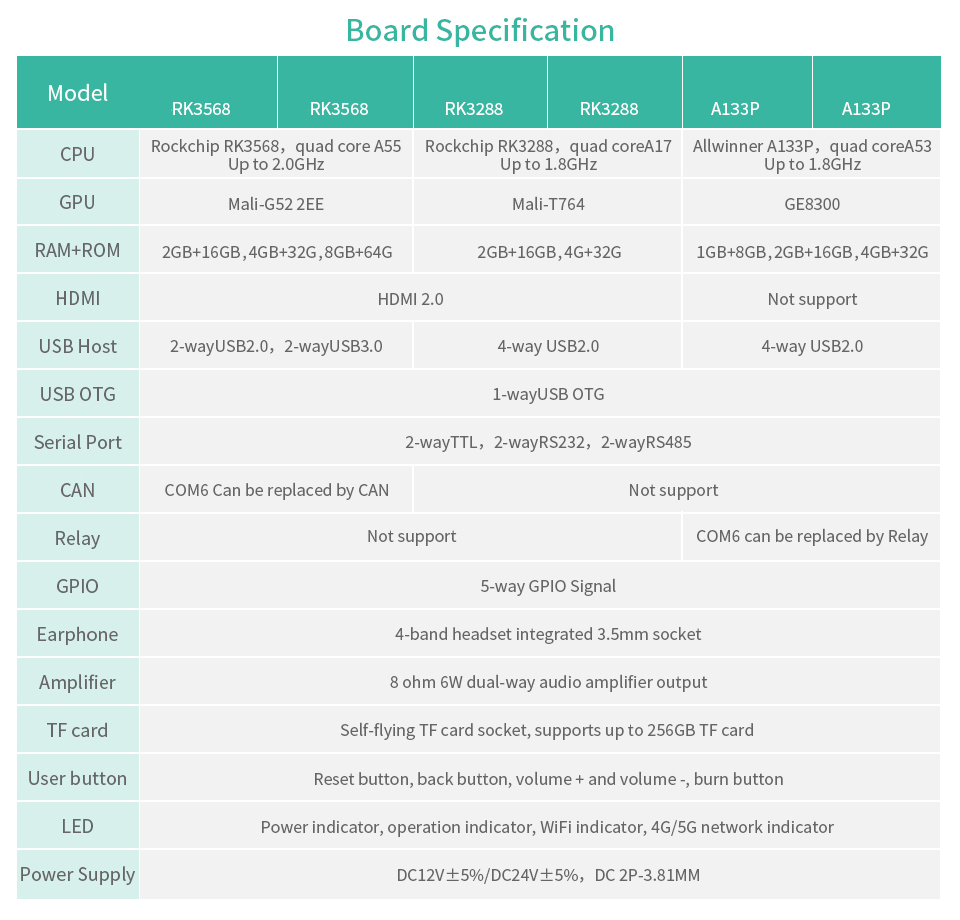

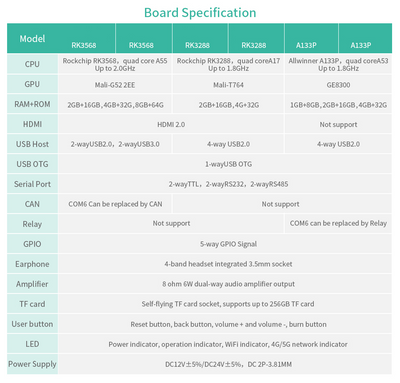

ControlHUB Aluminum Frame RK3568 Standard Configuration:

- CPU: RK3568 Quadcore A55, 2GB RAM 16GB ROM Quad Core A17, Up to 1.8GHz

- GPU: Mali-G52 2EE

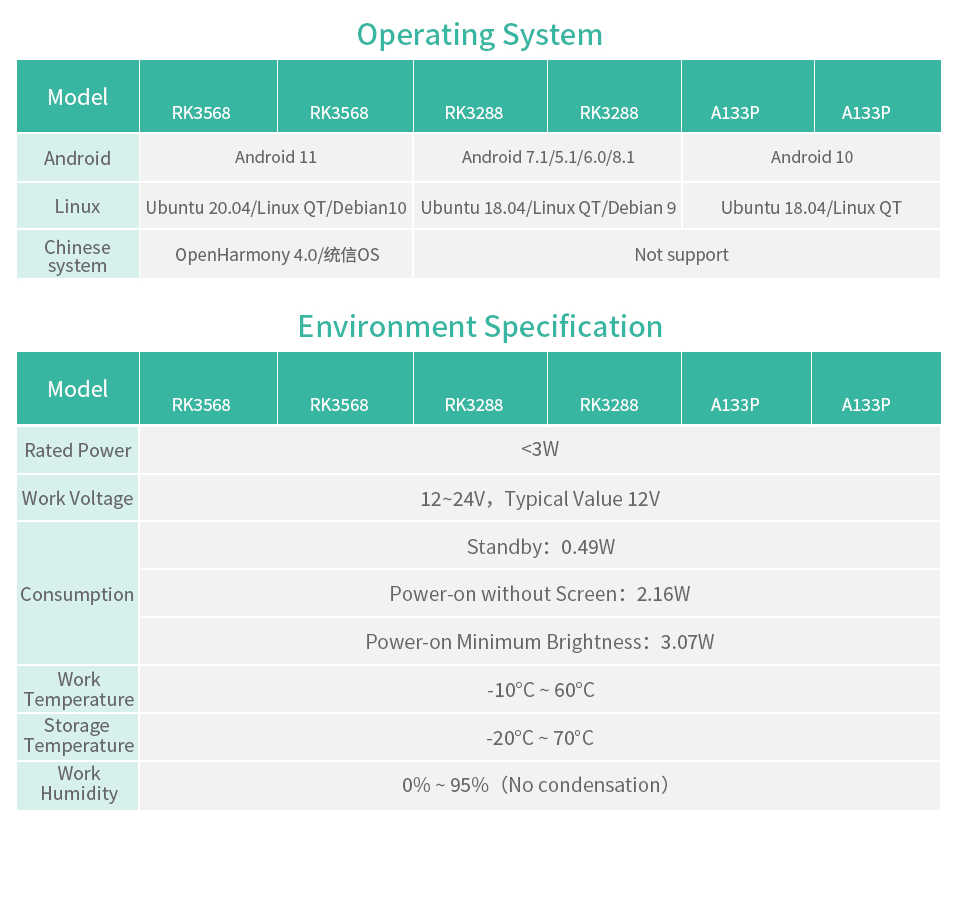

- Operating System: Android 11/12 / Ubuntu 20.04 / Linux QT / Debian 10

- IP65 Waterproof Front Panel

- Memory: Default 2GB RAM +16GB ROM (4G+32G, 8G+64G Optional)

- Storage: Default 16GB EMMC NAND Chips, Expandable Up to 256GB

- External Storage: Self-ejecting TF Card Up to 256GB

Ethernet: 1000Mbps

- Wifi: default Wifi6 2.4GHz Single-frequency (5GHz dual frequency optional)

- Bluetooth: Default WiFi6 BT 5.2

- 4G/5G Optional: EC800M/EC600/EC20,RG200U(5G)

- 1-way Micro SIM card slot

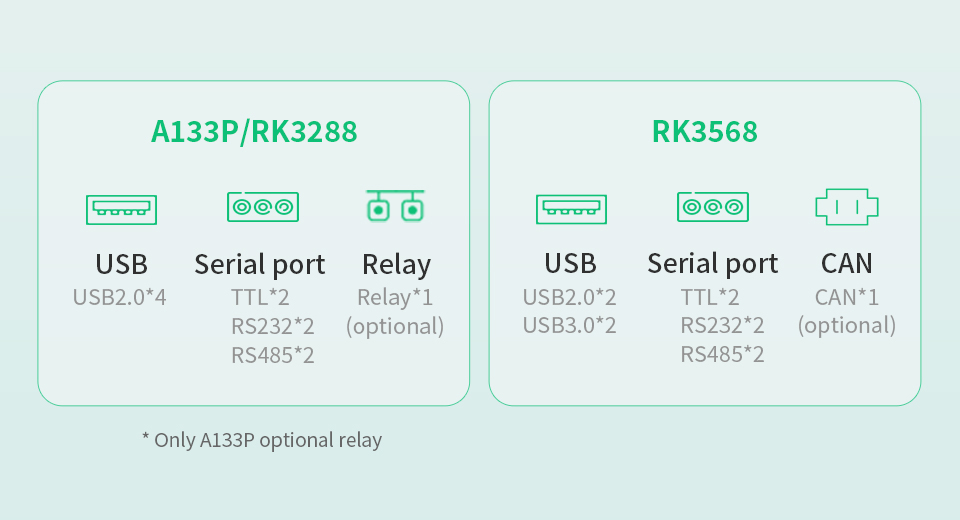

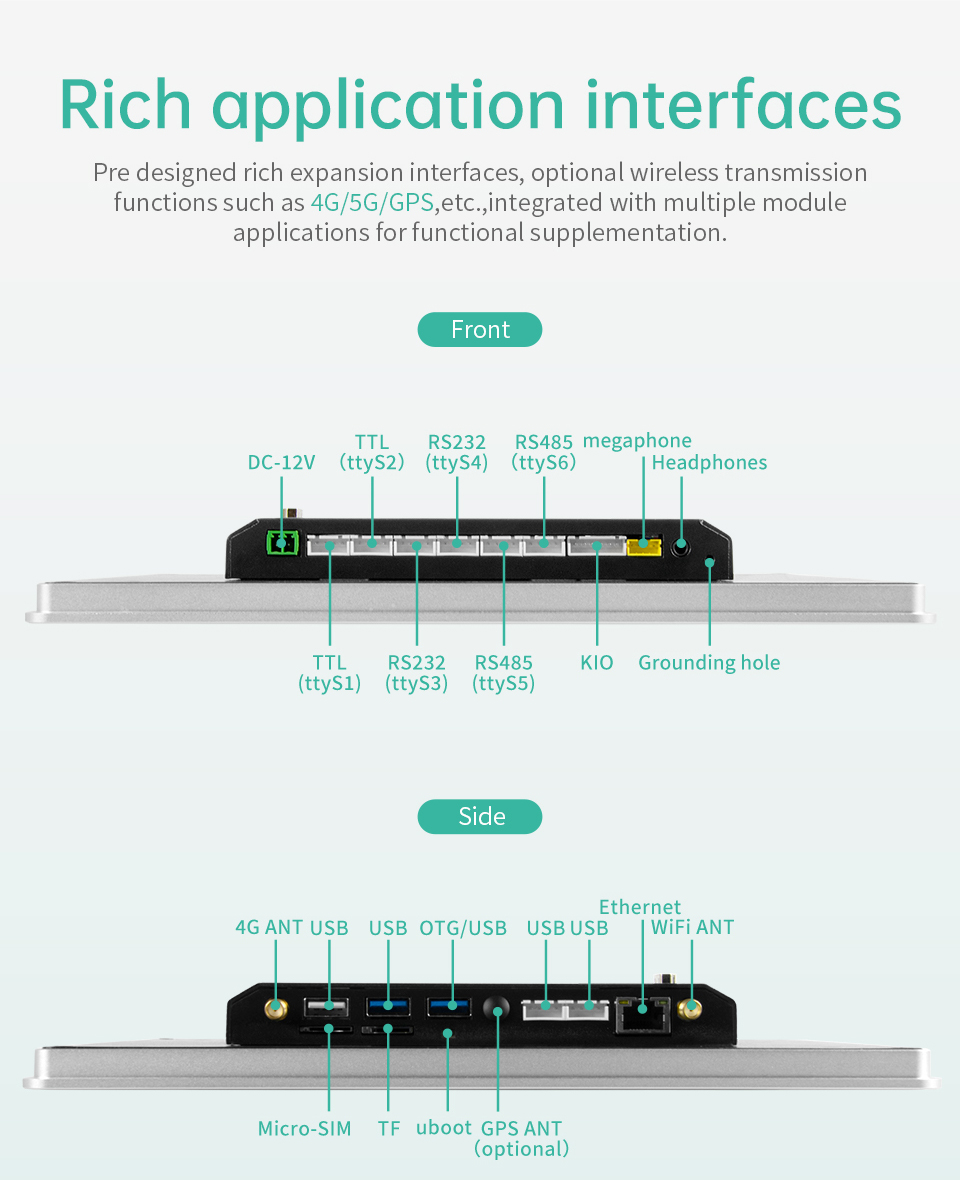

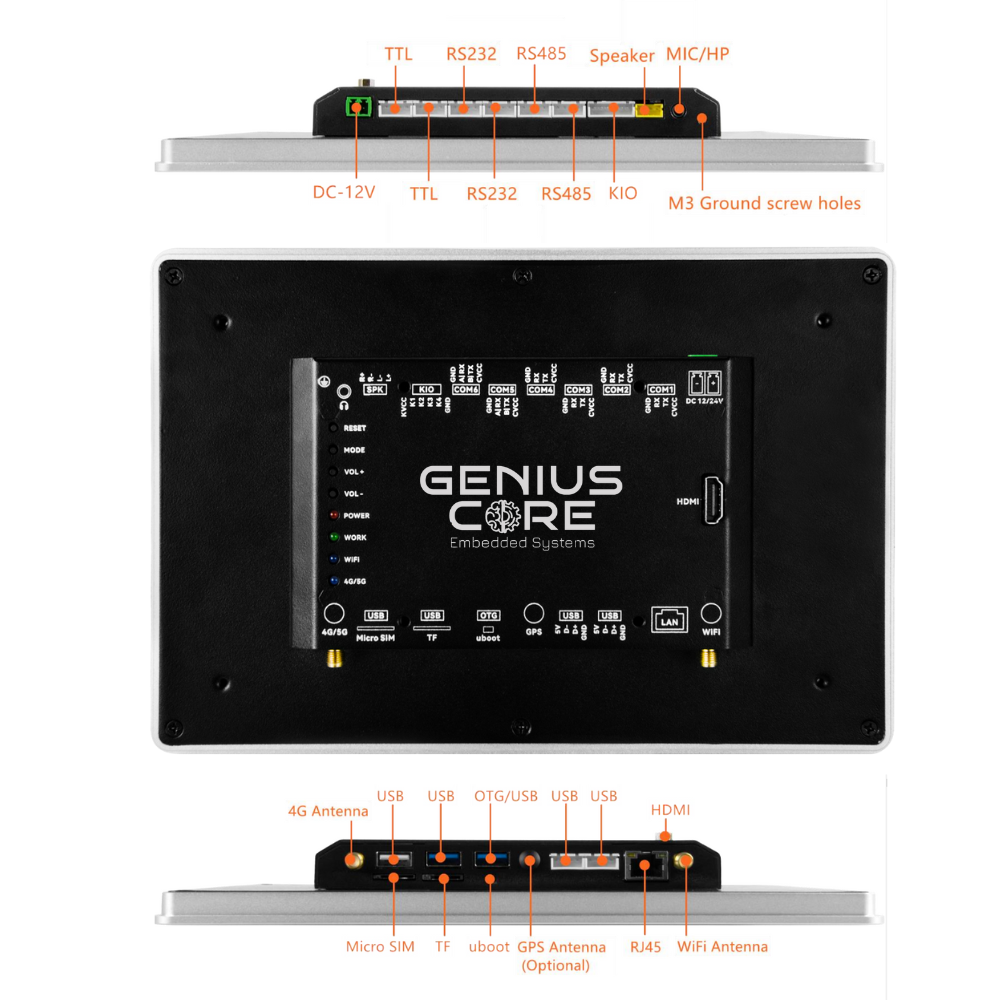

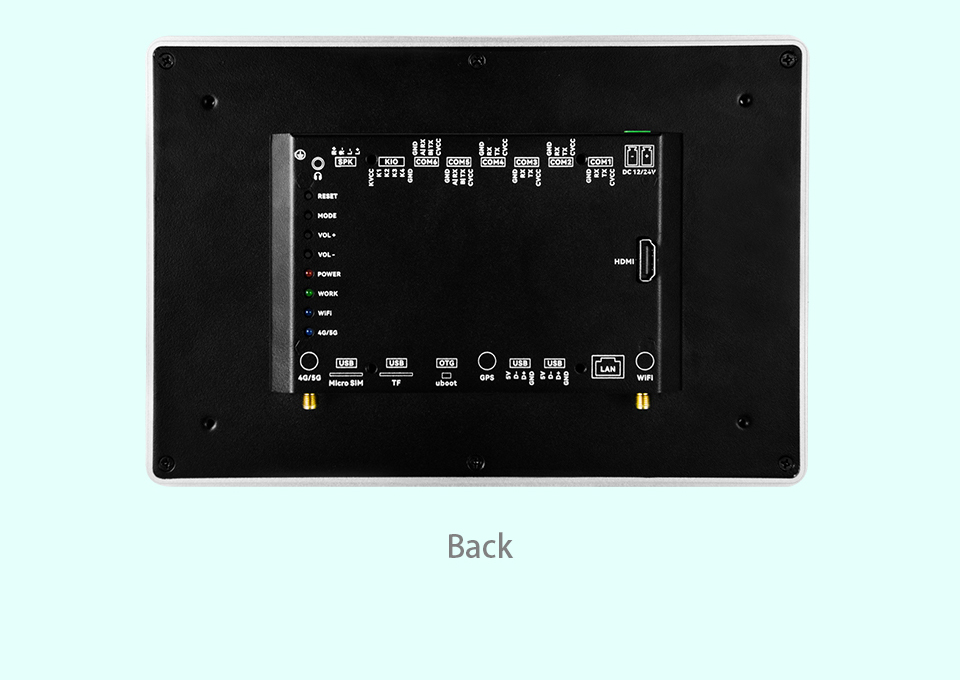

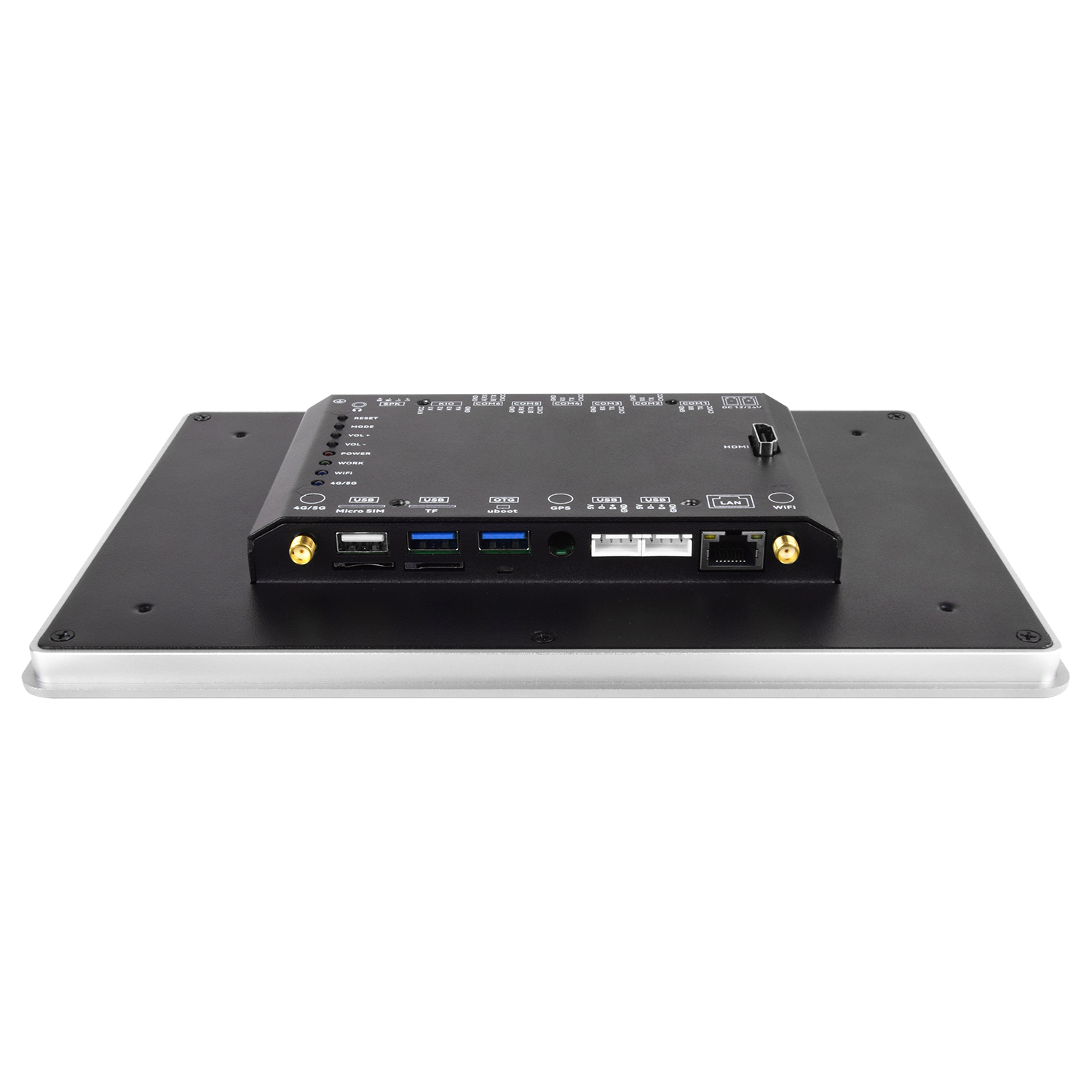

- Serial Interface: 2-way TTL, 2-way RS232, 2-way RS485

- CAN (Optional): COM6 can be configured as CAN

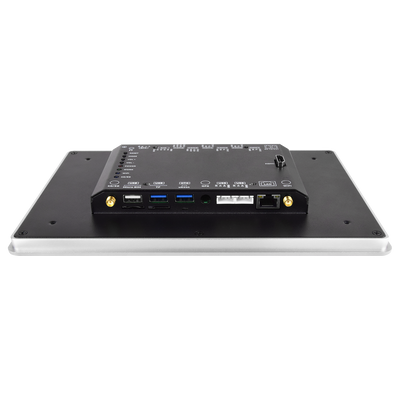

- USB: 1*USB3.0 , 3*USB2.0 , 1*USB3.0 OTG

- GPIO: 4-way GPIO Signal, Expandable GPIO Button or 3.3V Input / Output

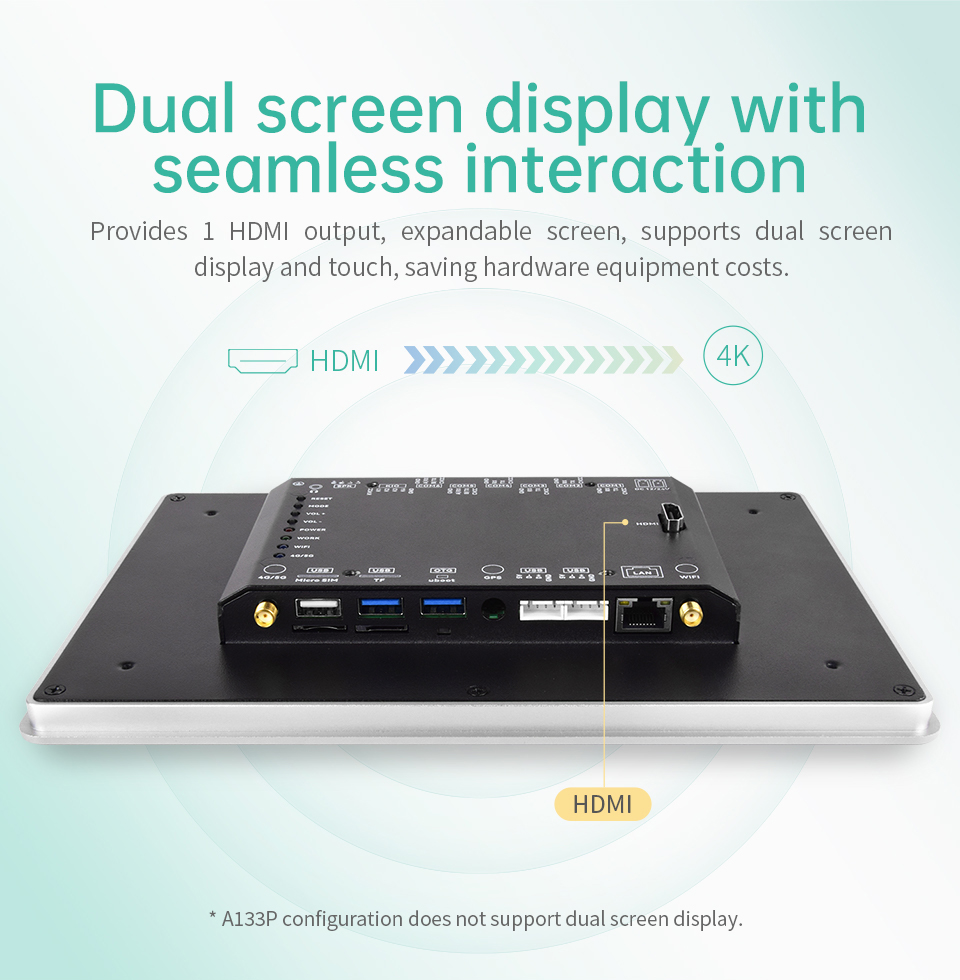

- HDMI 2.0 Built in, up to 4K resolution, supports Dual screen display

- GPS (Optional): EC800M,Supports dual positioning of Beidou and GPS

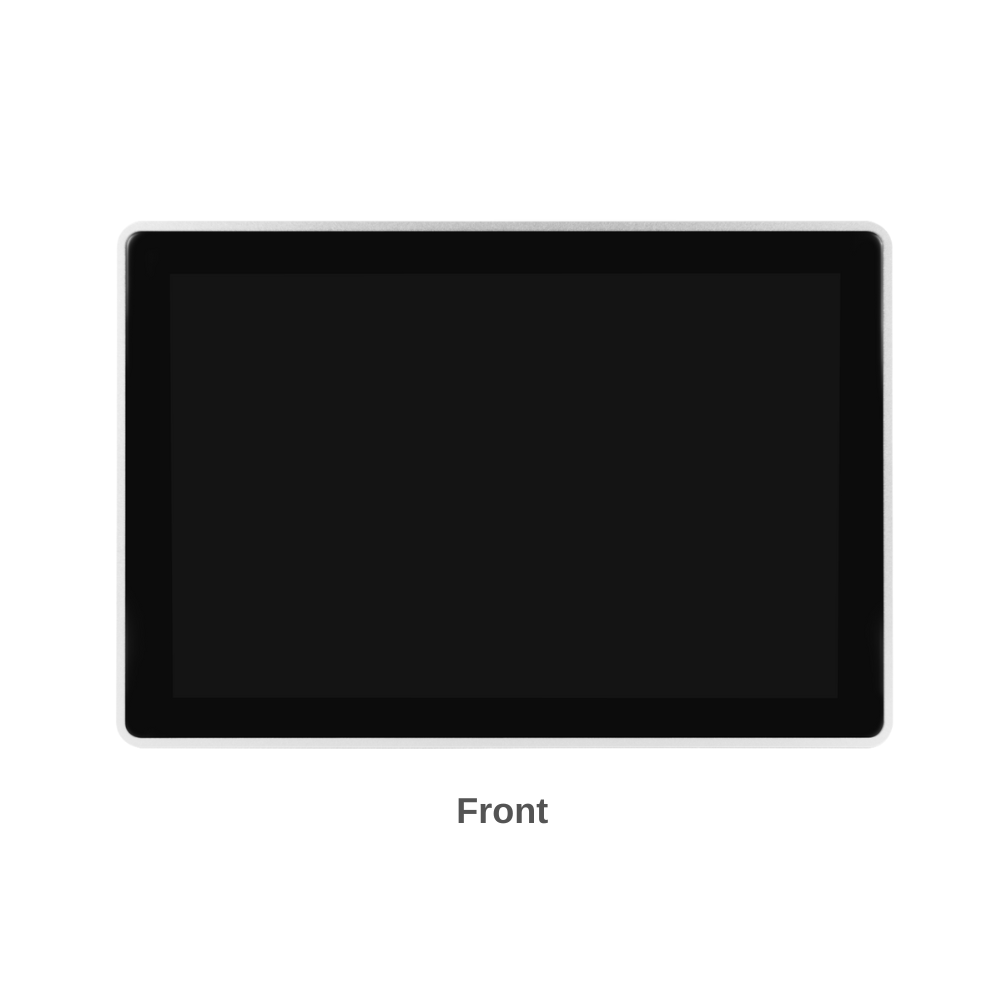

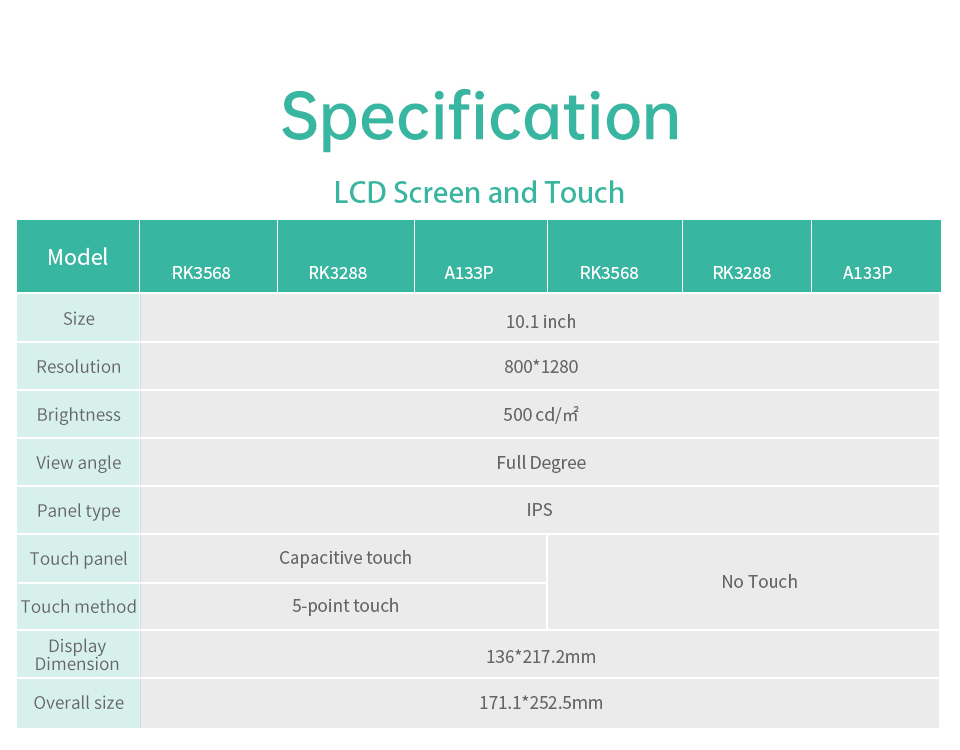

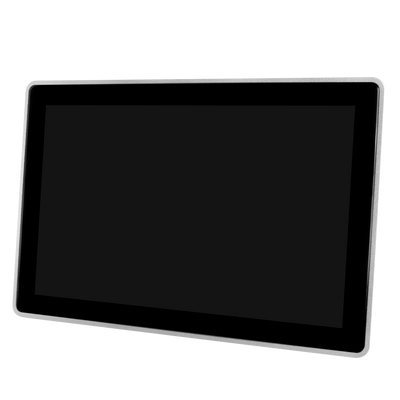

- Screen: 10.1" inch, 800*1280 Pixel, IPS Capacitive LCD Panel, display scale 5:8

- Brightness: 500 cd/m2 (Optional 1000cd/m2)

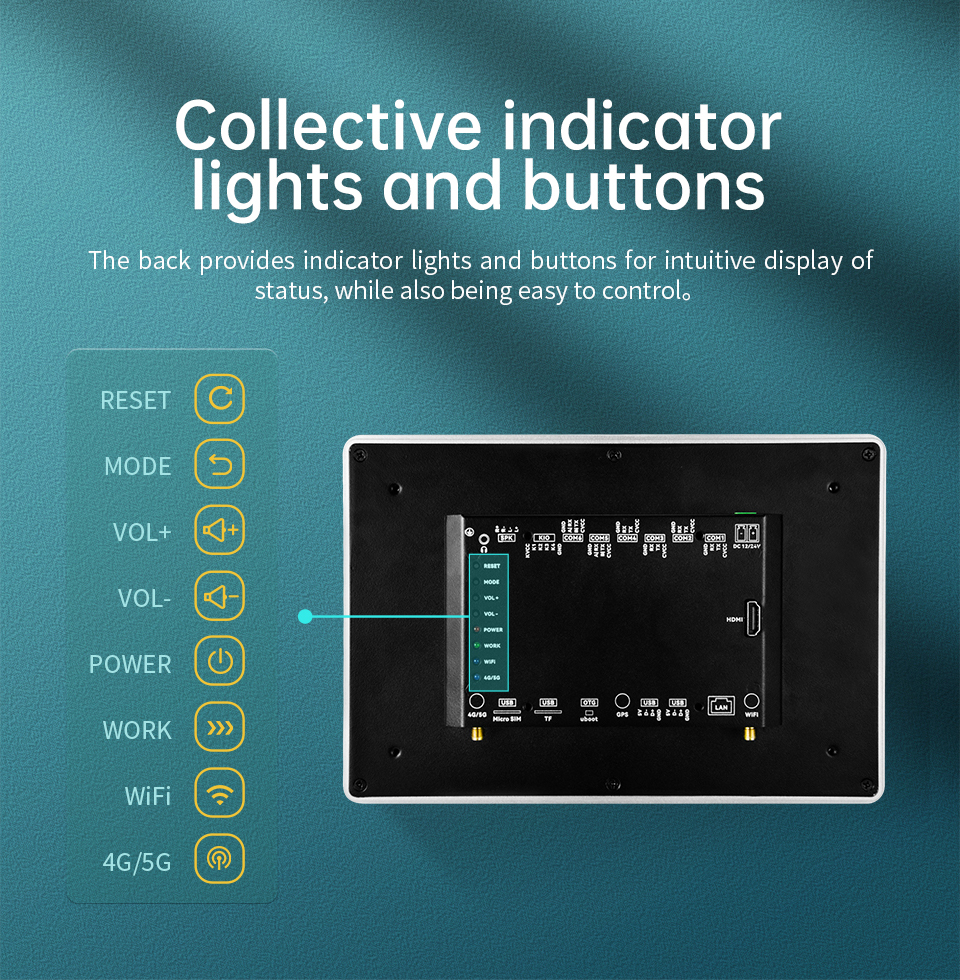

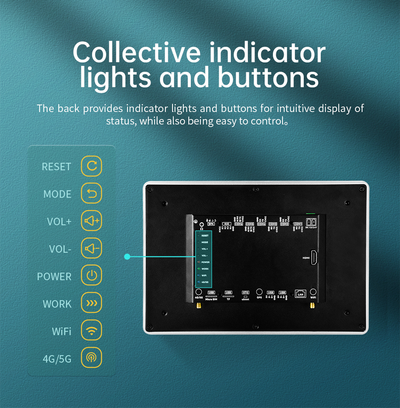

- Buttons: Reset button, back button, volume + and volume -, burn button

- LED: Power indicator, operation indicator, Wifi indicator, 4G/5G network indicator

- Amplifier: 8 ohm 6W Dual-channel Audio Amplifier Output

- Earphone:  4-band headset integrated 3.5mm socket

- Power: 1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM

- Working Voltage: 9-24V, typical value 12V

- Working Temperature:-10°C-60°C Storage Temperature: -20°C-70°C

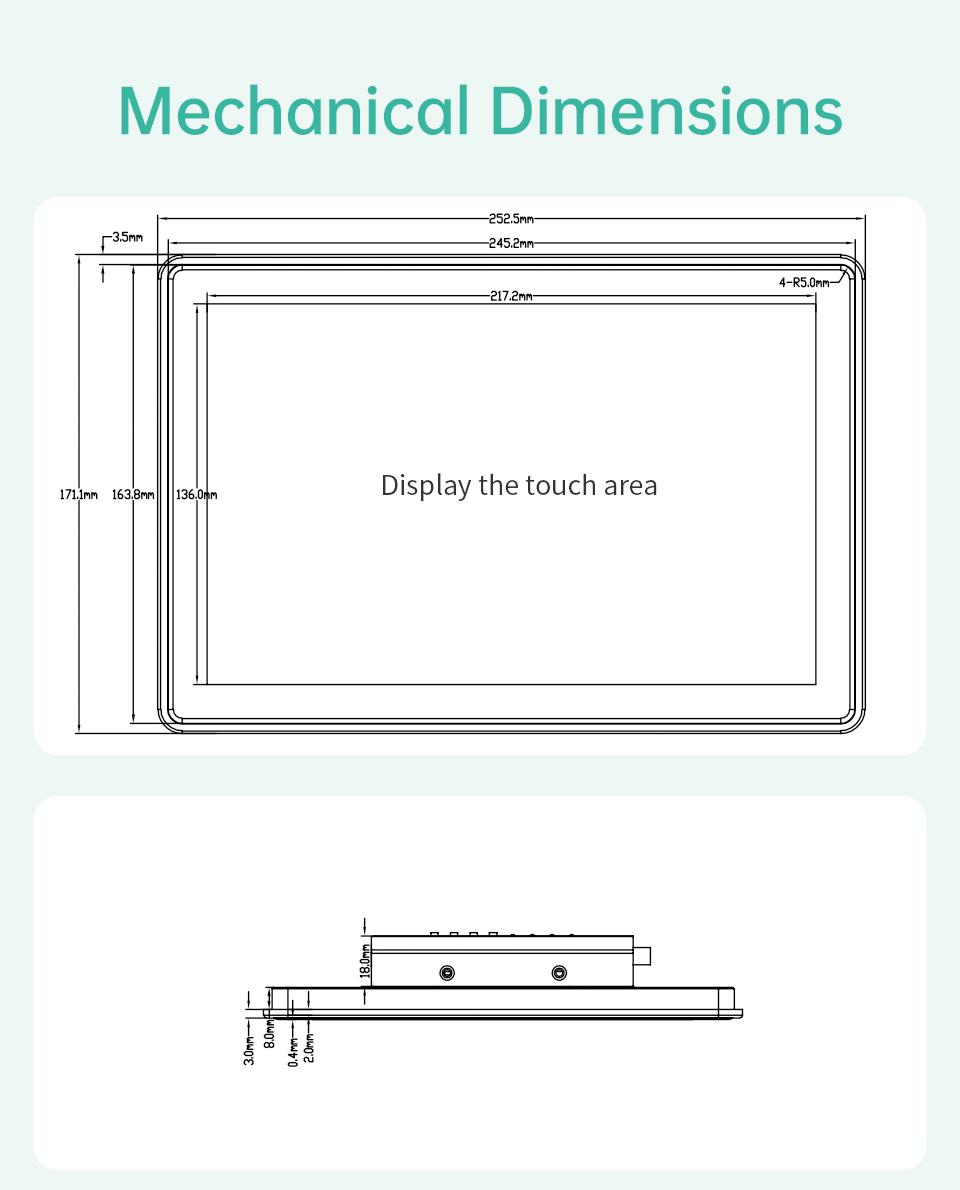

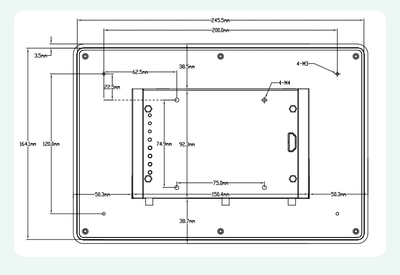

- Display Area: 136*217.2mm

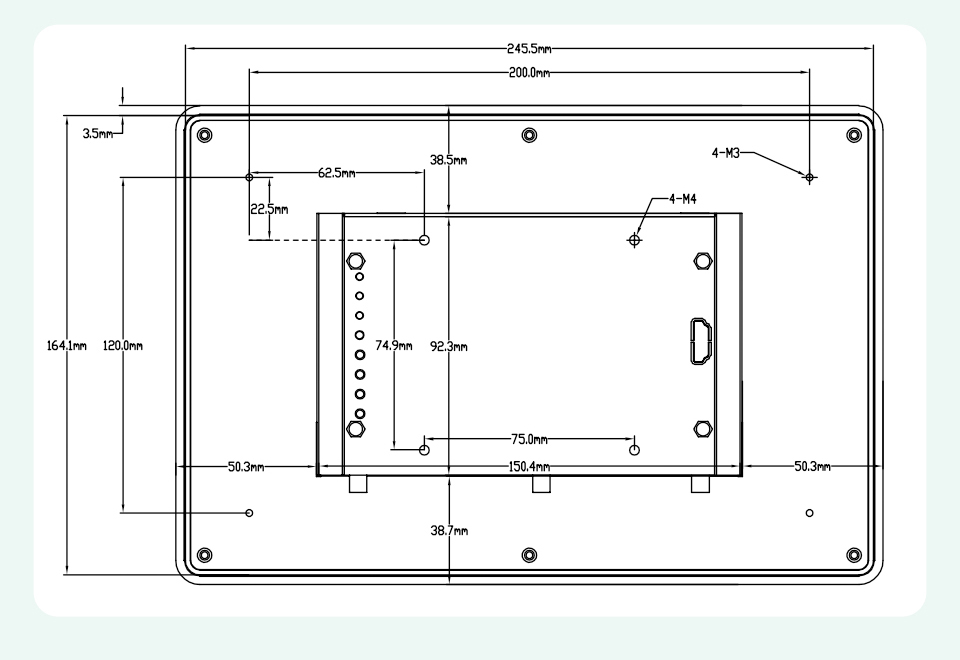

- Overall Dimension: 171.1*252.5mm

- Outer packaging size 300 * 205 * 52mm

- Weight: 1.50 kg, Package Weight: 1.80 kg


Powerful Processing and Connectivity with the Genova Control Hub Aluminum - RK3568 Model

The Control Hub Aluminum - 10.1-Inch Rockchip RK3568 Model is tailored for high-performance industrial applications that demand reliability and adaptability. Powered by the Rockchip RK3568 4-Core A55 processor clocked up to 2.0GHz and the Mali-G52 2EE GPU, this model supports 2GB+16GB, 4GB+32GB, and 8GB+64GB configurations, making it capable of handling extensive data operations.

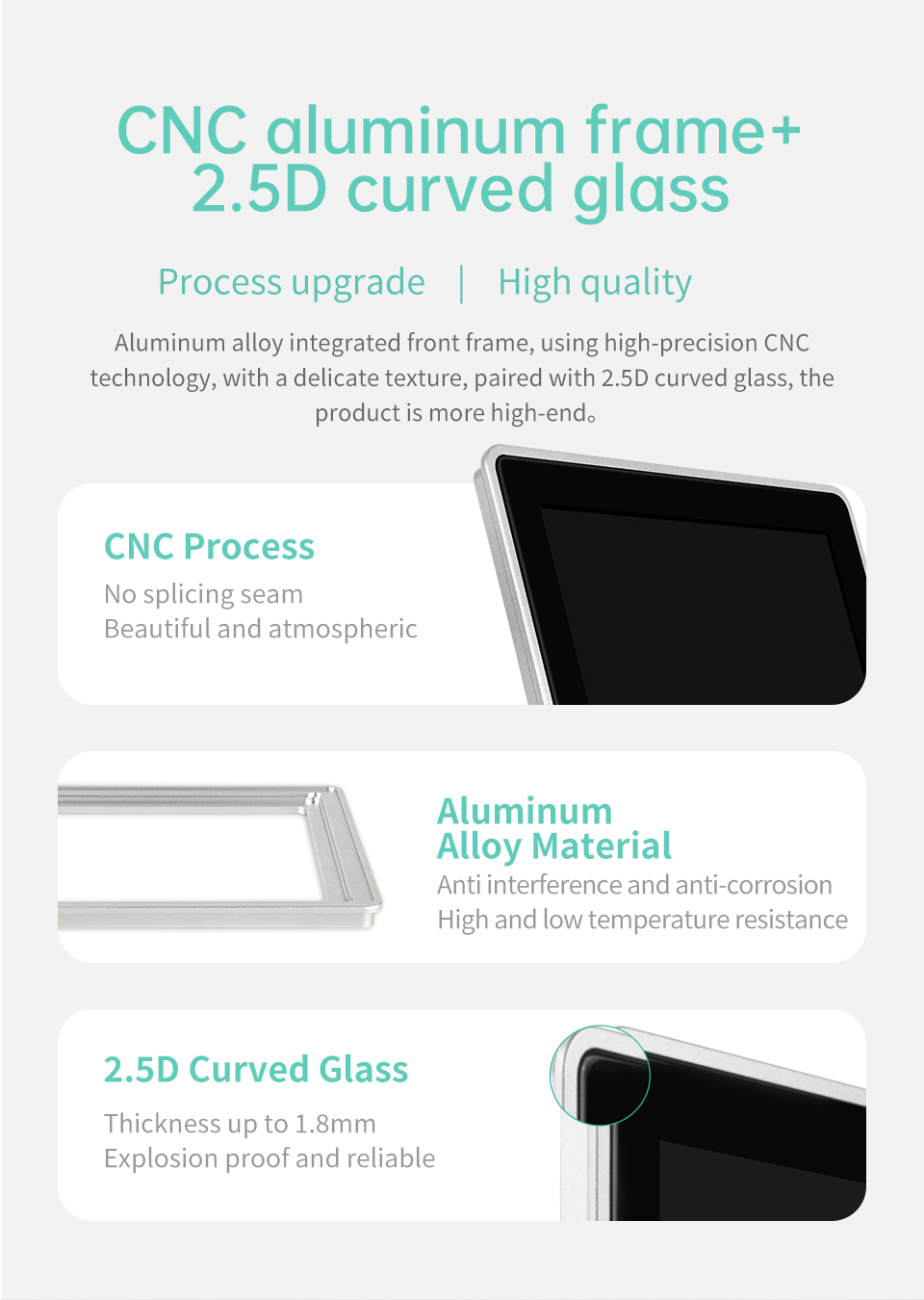

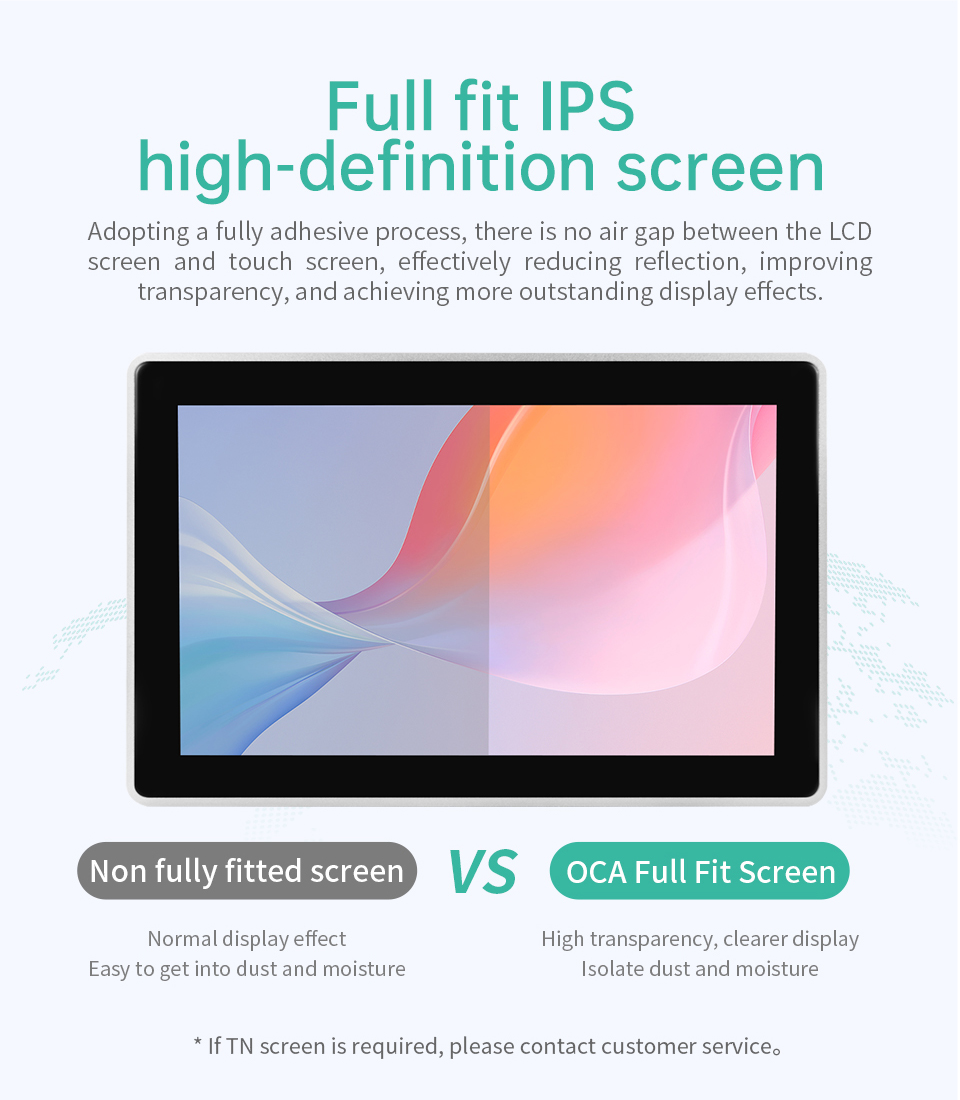

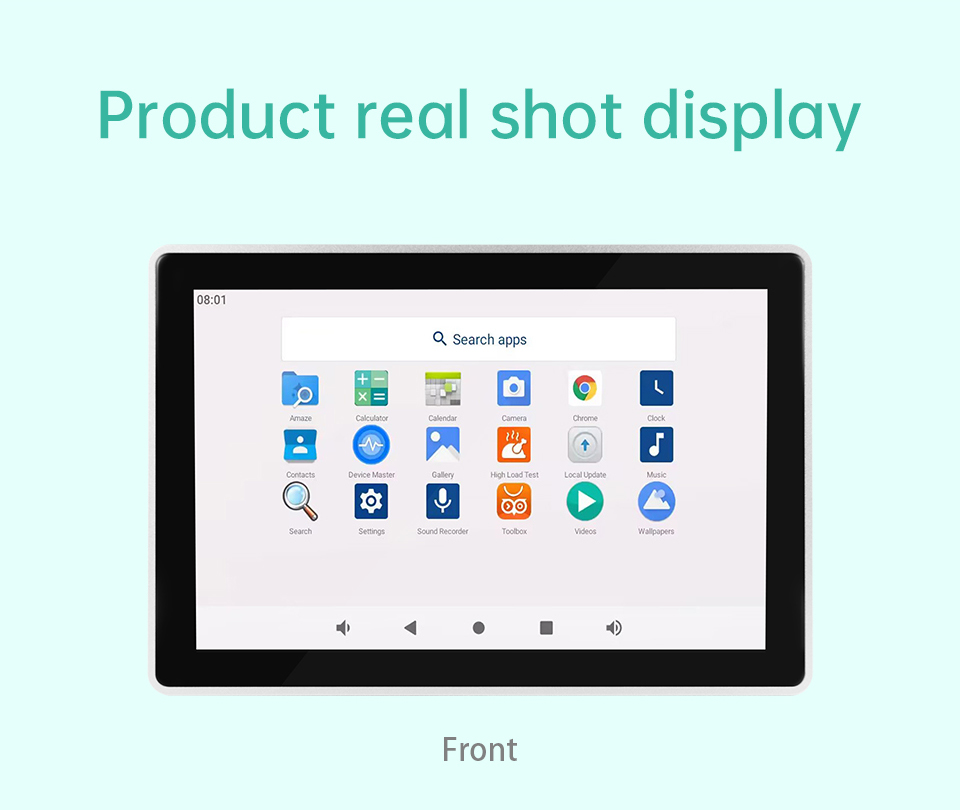

The 10.1-inch 800x1280 IPS display provides a sharp and vivid viewing experience, with 5-point capacitive touch enabling precise interaction. The IP65-rated aluminum frame ensures durability in challenging conditions, while 1000Mbps Ethernet and HDMI 2.0 offer fast data transfer and display options. CANBUS support (optional) and optional COM and Uart6 serial ports allow seamless integration with various industrial systems.



Supporting Android 11 (with optional Ubuntu 20.04/Debian 11), this model is versatile across different software platforms. Connectivity features such as optional 4G/5G, single-frequency WiFi 6 (with optional dual-frequency), and GPS with dual positioning (Beidou and GPS) enable applications in remote monitoring and IoT. With power input options of DC12V ± 5%/DC24V ± 5%, the RK3568 model maintains stable performance across different environments. Backed by a 3-year warranty, this 10.1-inch model is an ideal choice for automation, infrastructure management, and advanced IoT applications.
