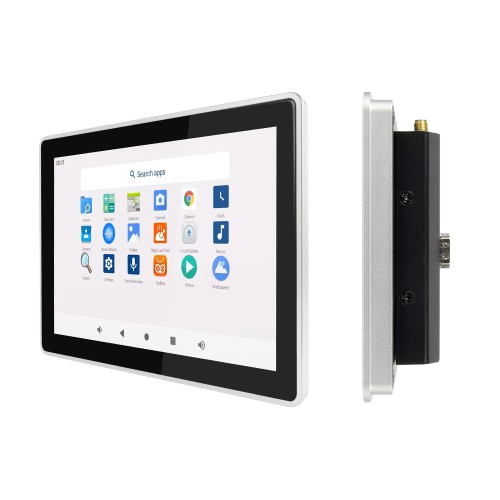

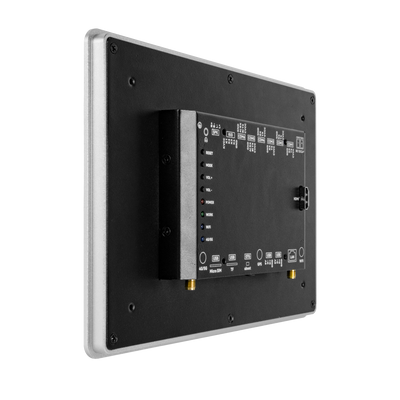

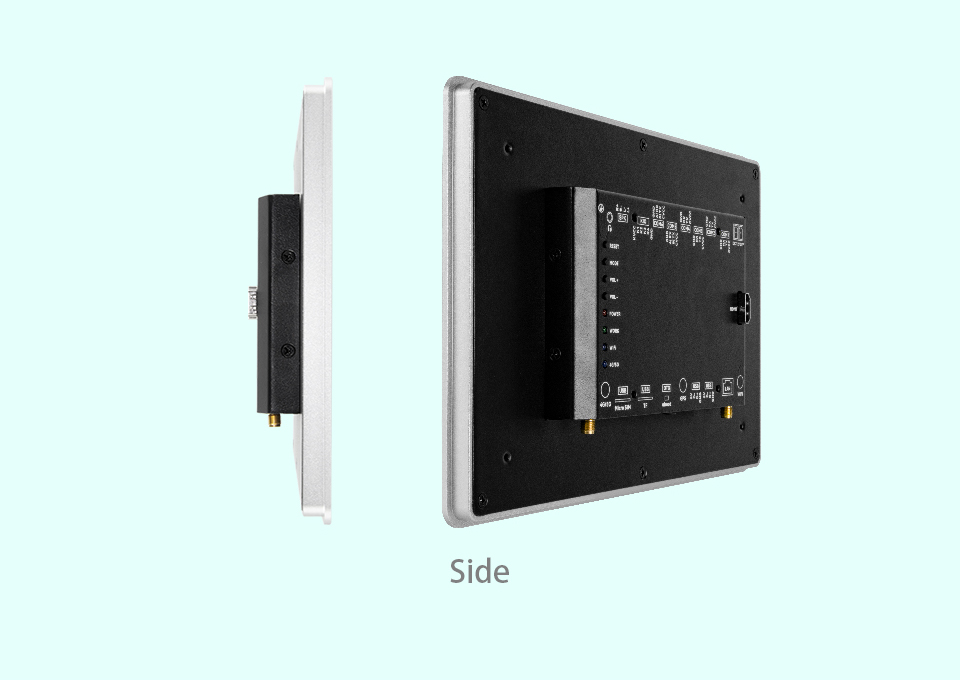

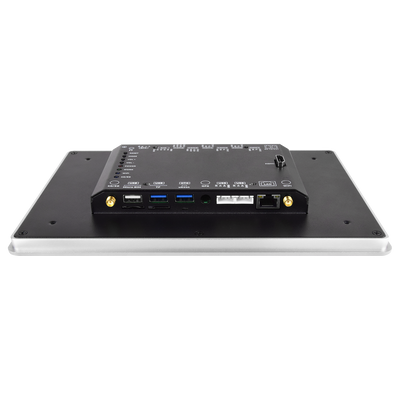

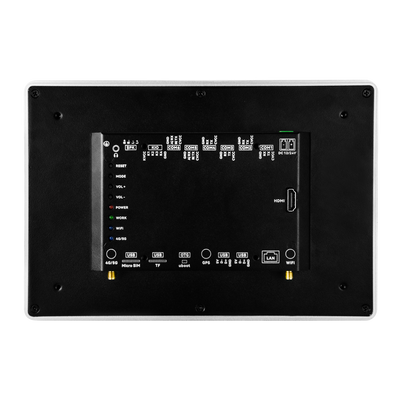

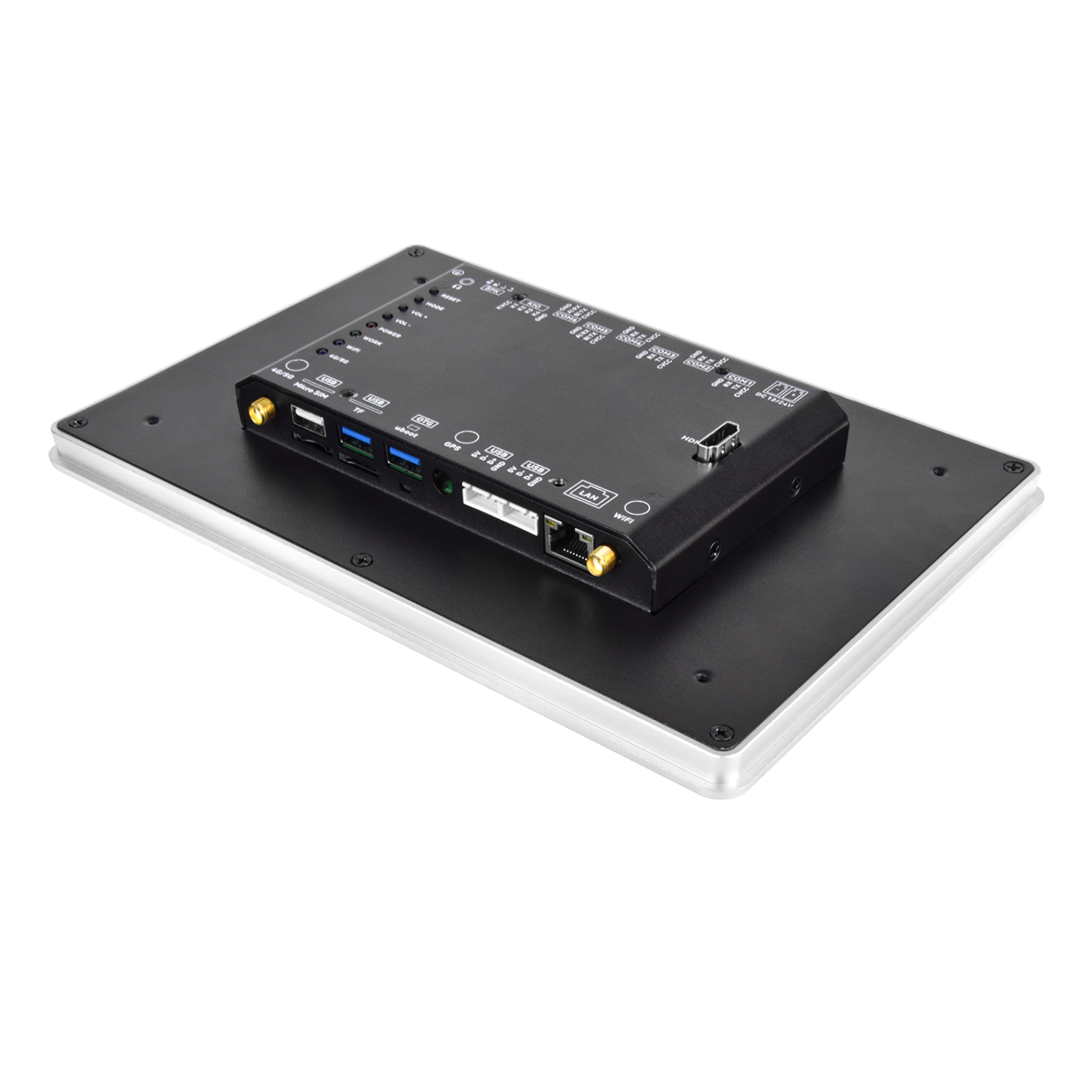

10.1" A133P All in One HMI Android Panel PC, IPS, AL Frame

$143.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

GeniusCore Embedded Systems "ControlHUB Series" Aluminum Frame Multiport Panel PC


10.1" inch IPS Screen, All in One HMI Android Panel PC, A133P 1G RAM 8G ROM, Built in GPIO, Configurable 6COM TTL RS232 RS485, Optional Relay



Model: GFCX-A101L133P-1G08

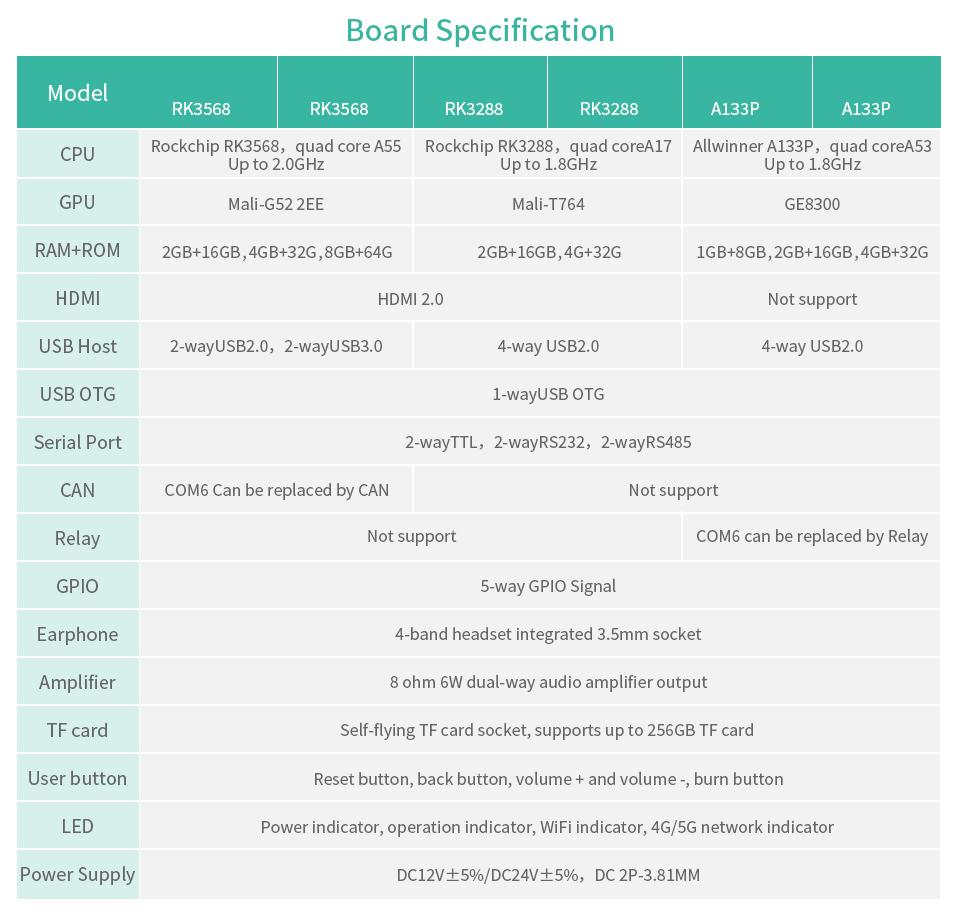

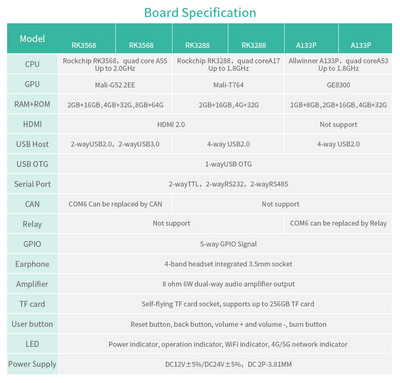

ControlHUB Aluminum A133P Standard Configuration:

- CPU: Allwinner A133P Quad Cortex-A53, Clocked Up to 1.8GHz

- GPU: GE8300

- Line Output: Support standard left and right channel line output (pin header)

- Capacitive Touch Panel

- Memory: Default 1GB (2GB/4GB Optional)

- Storage: Default 8GB EMMC NAND Chips, Expandable Up to 128GB

- External Storage: Support TF Card/U Disk/UART/OTG

- AI Chips (optional): Supports Megvii face chip and provides algorithm hardware authorization

Ethernet: 10/100M Auto-adaptive Ethernet RJ45 Interface + 2 Chips PoE PD Socket

- Wifi Module: Internal XR829 Module, Support IEEE 802.11 b/g/b + HS/BT v4.2, default Single-frequency 2.4GHz WiFi Module.

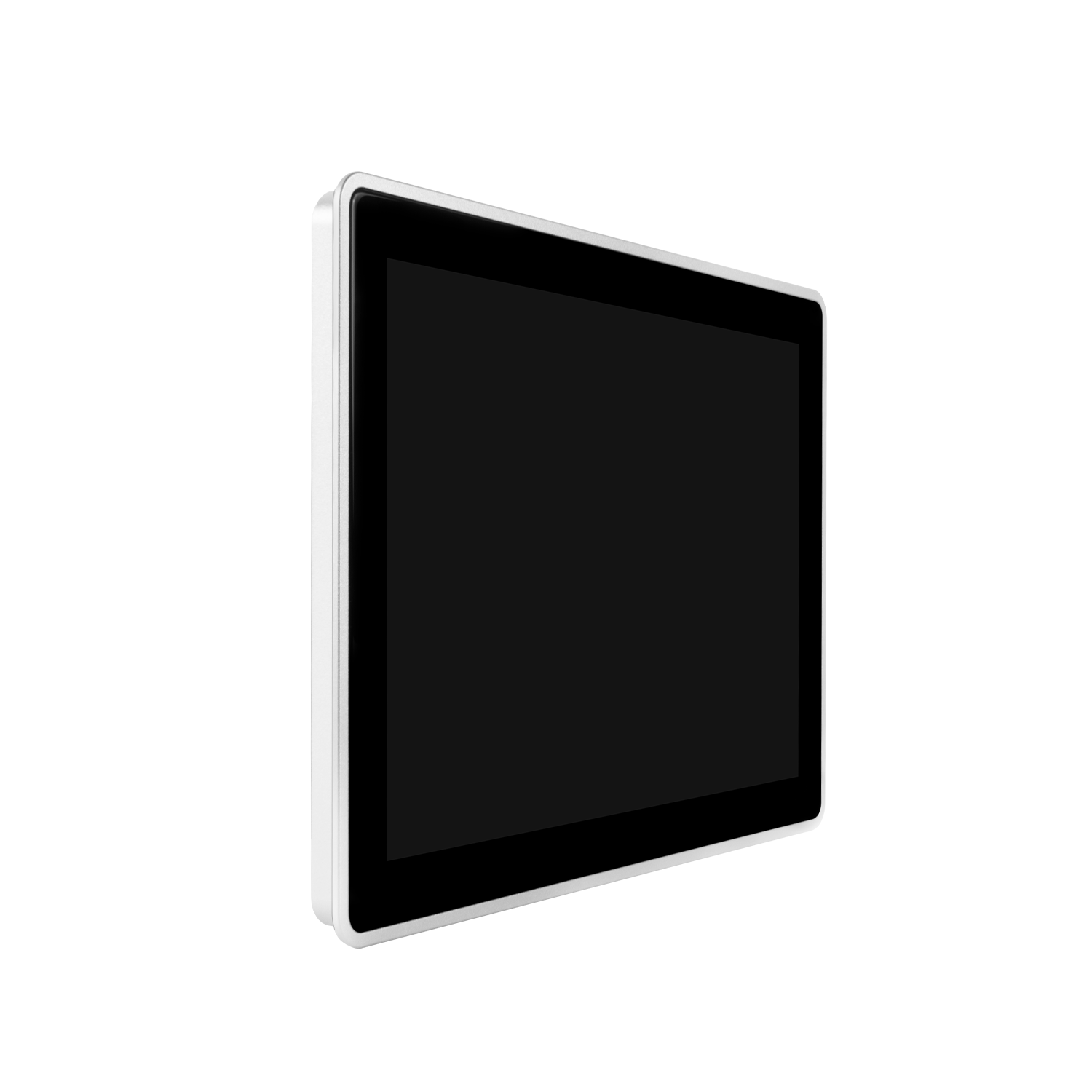

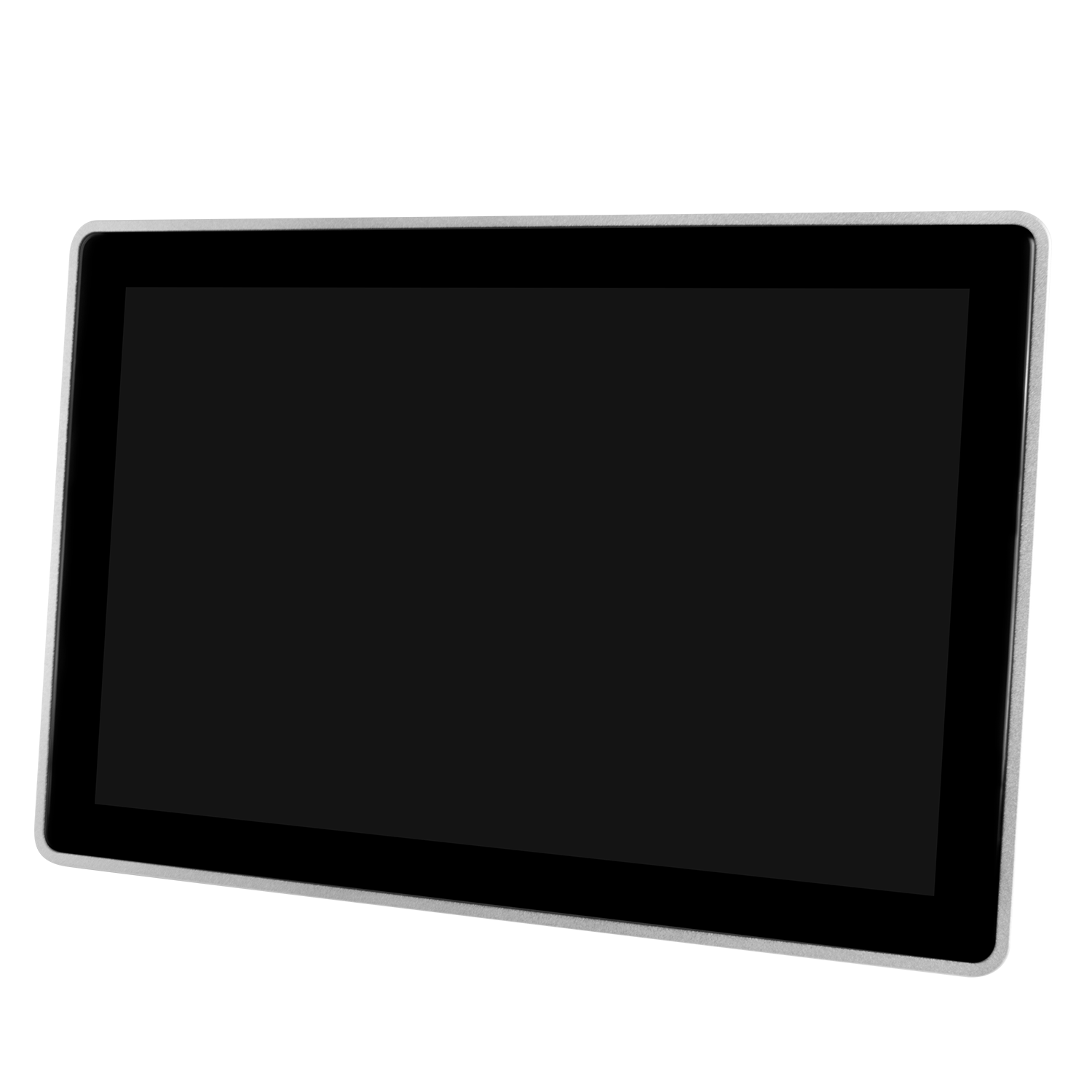

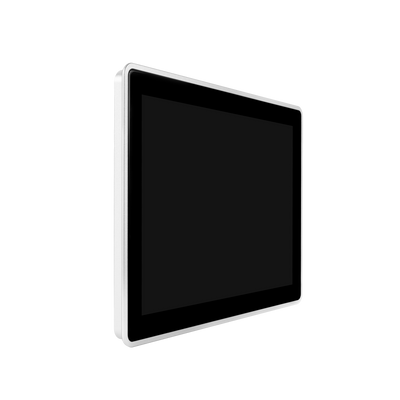

- Screen: 10.1 Inch, 1024*600 Pixel, IPS Capacitive LCD Panel

- Brightness: 500 cd/m2

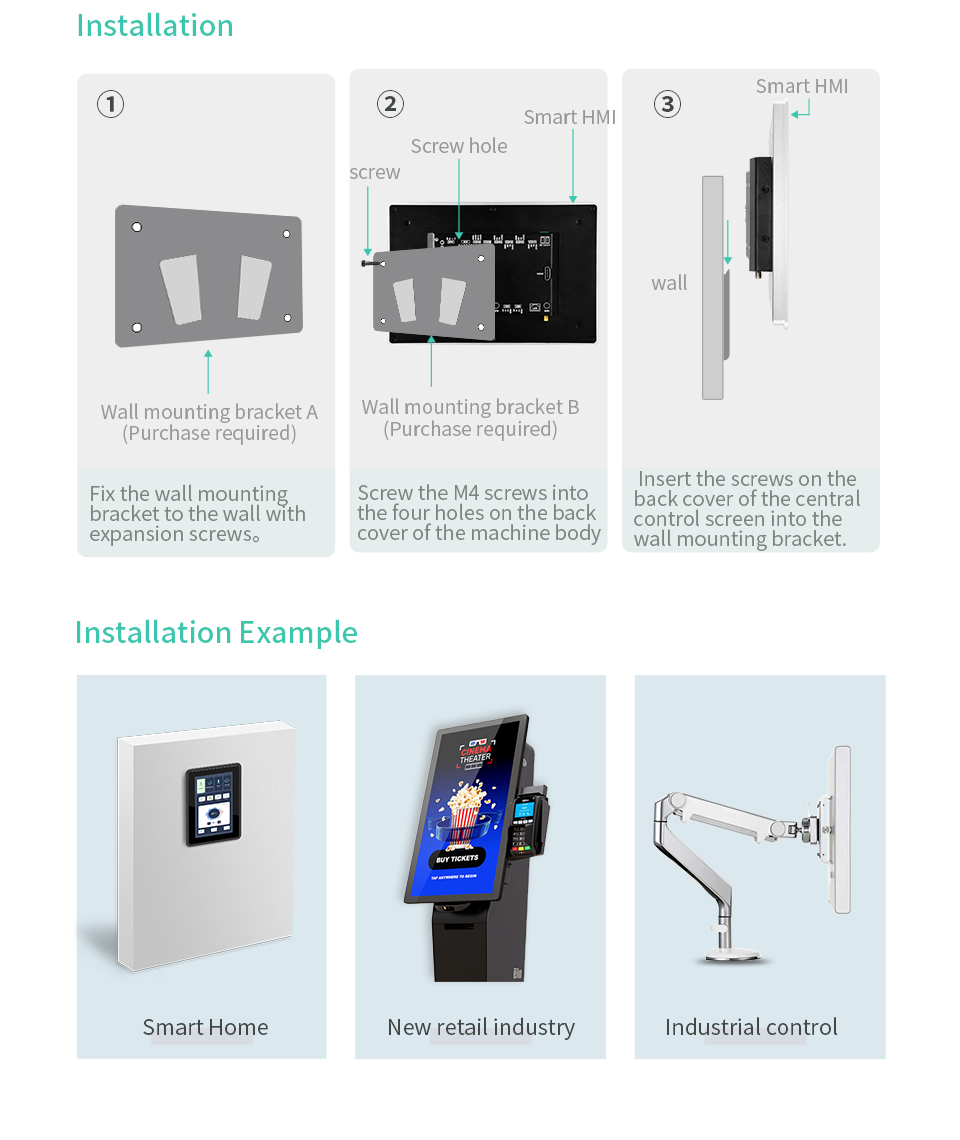

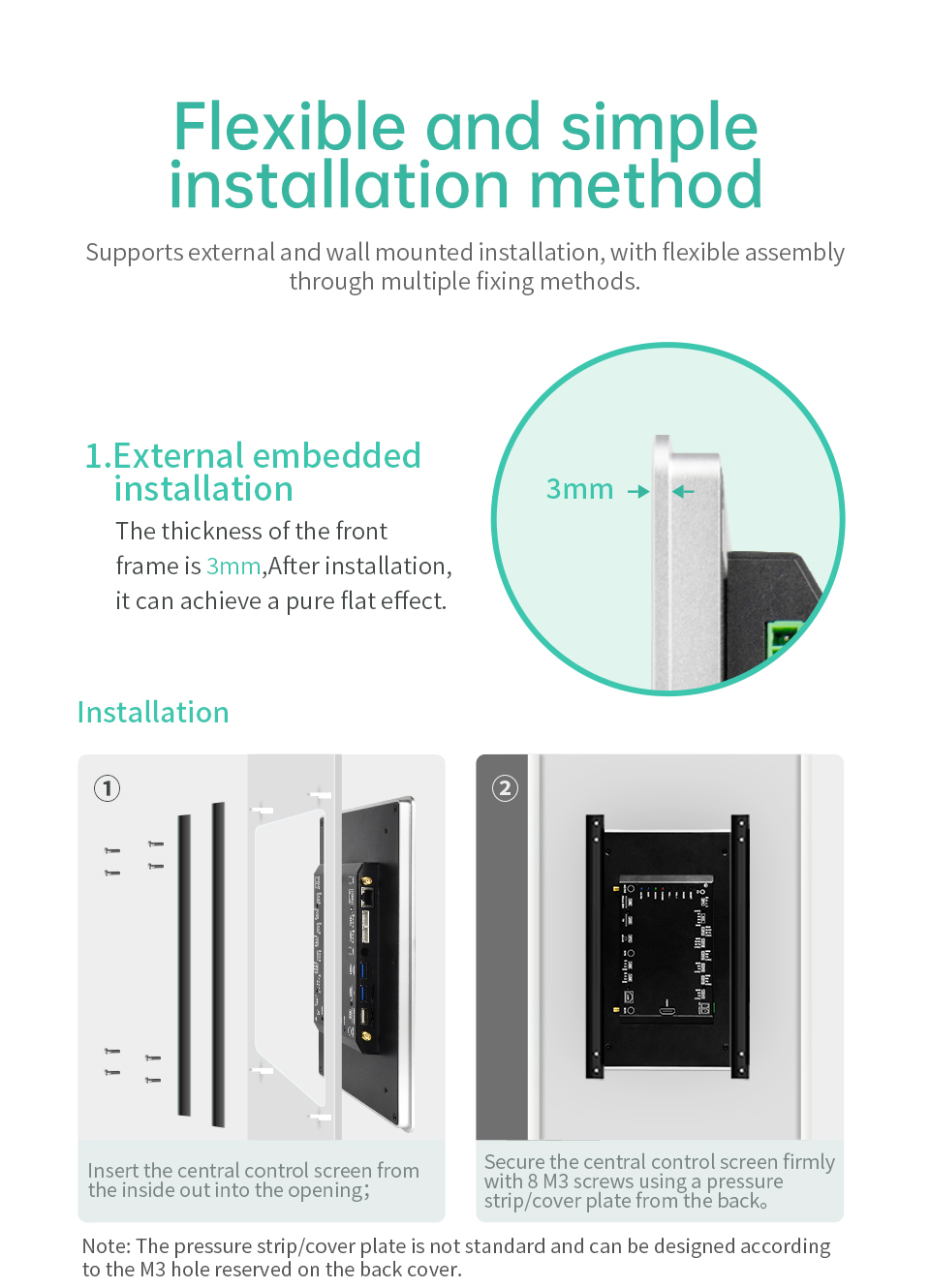

- Install Angle: Support 0°, 90°, 180° and 270° Multi-Angle Display Installing

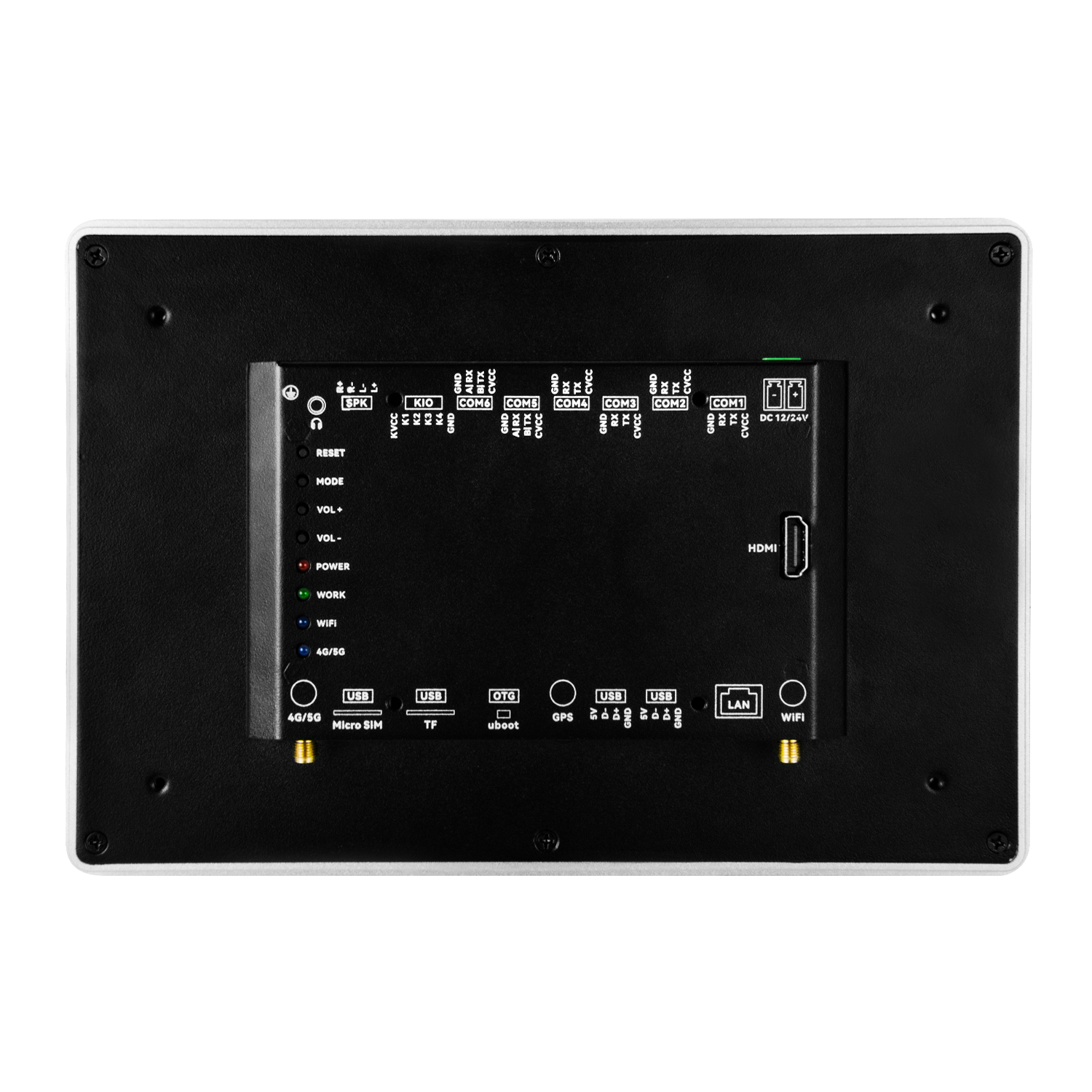

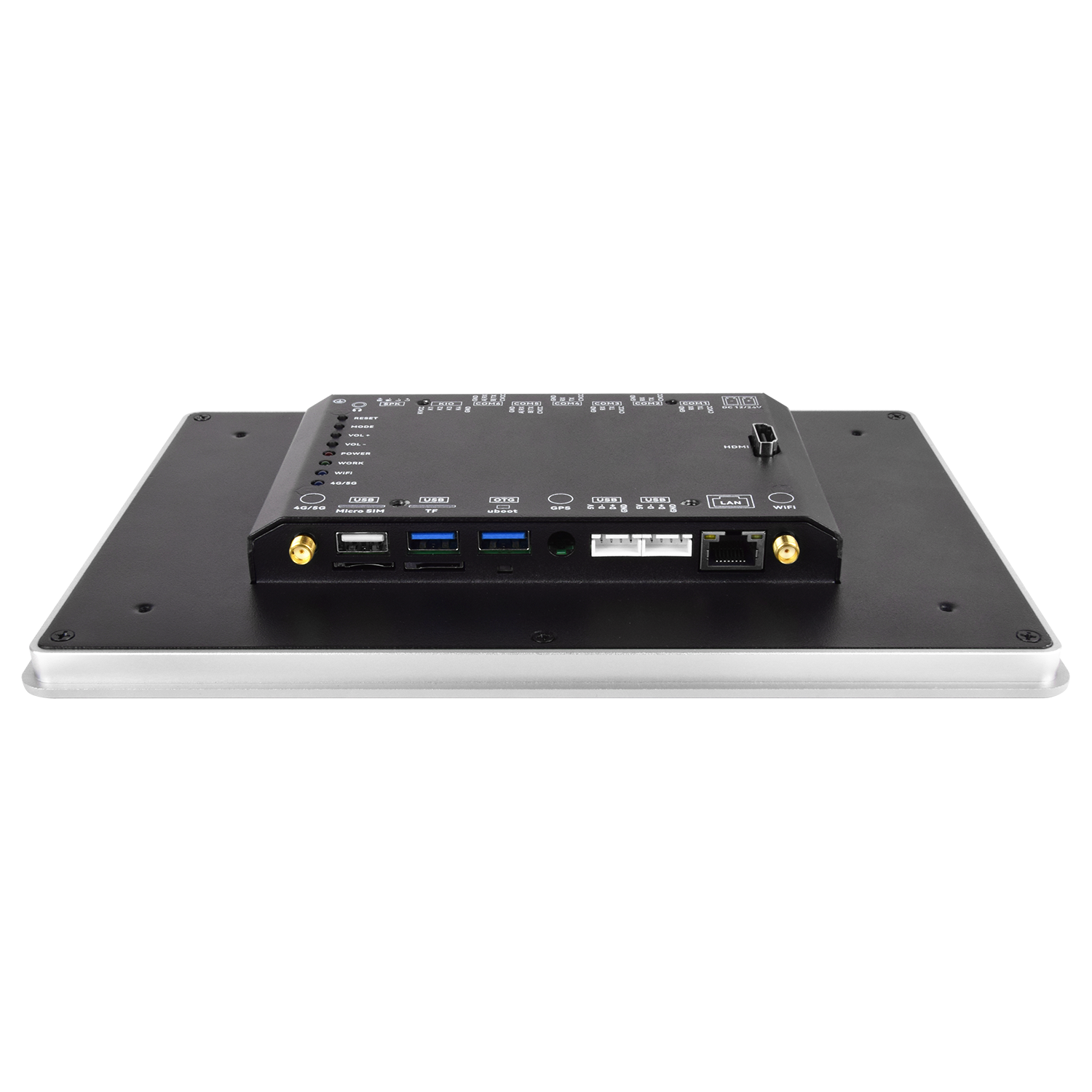

- USB: 1*External USB 2.0 Socket, 1*External USB-OTG Socket, Support USB Camera Within 2M Pixels

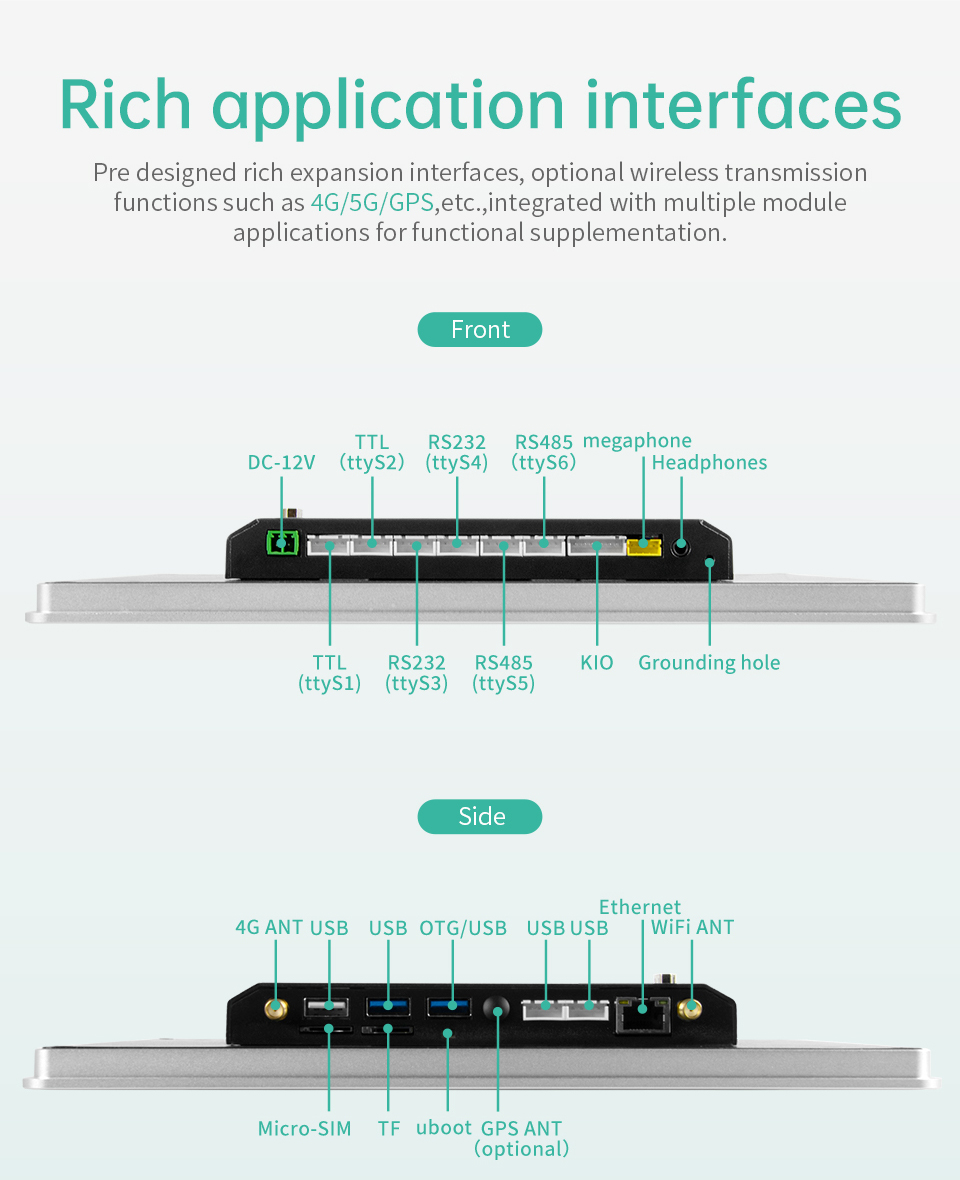

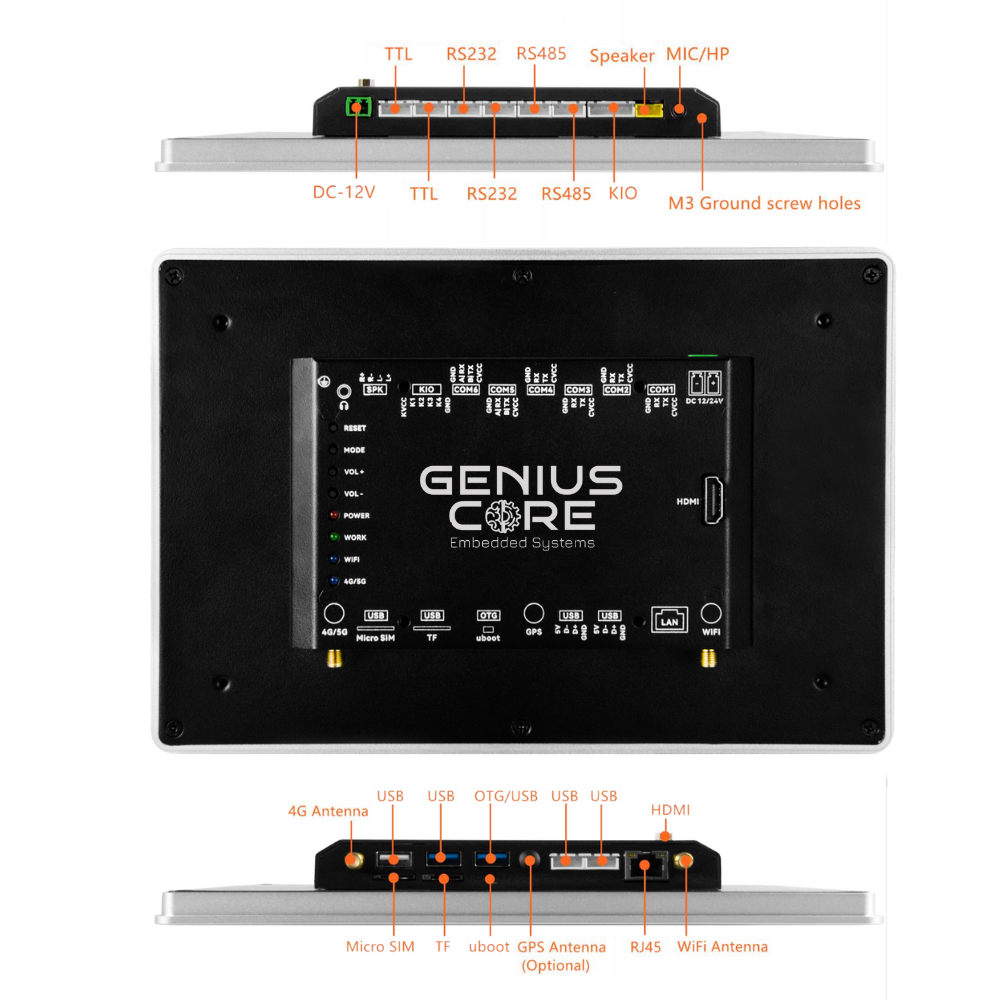

- Serial Interface: 2 COM Ports: Default: RS232, Optional Configurable TTL/RS232/RS485 (Data Serial Port and Debugging Serial Port)

- 3-way GPIO Signal, Expandable GPIO Button or 3.3V Input / Output

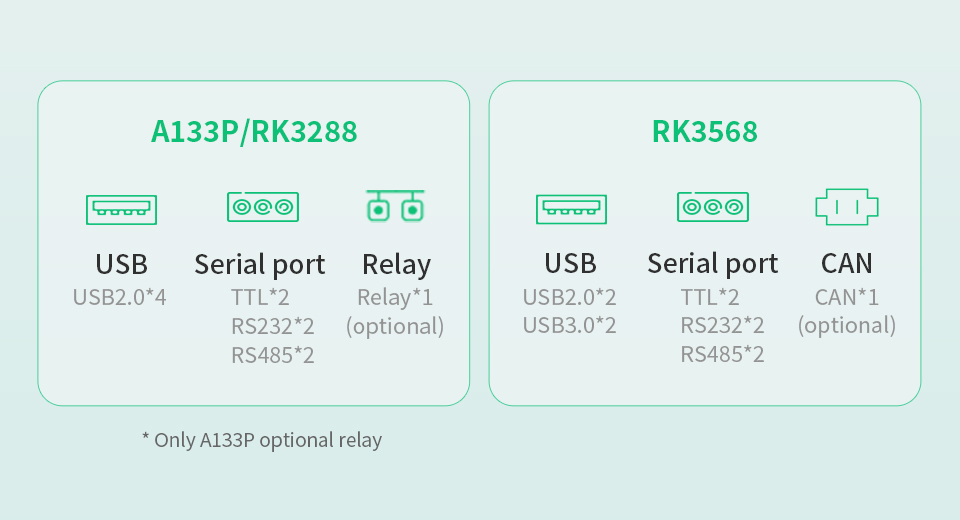

- Relay (Optional): Single Pole Double Throw Access Control Relay Signal

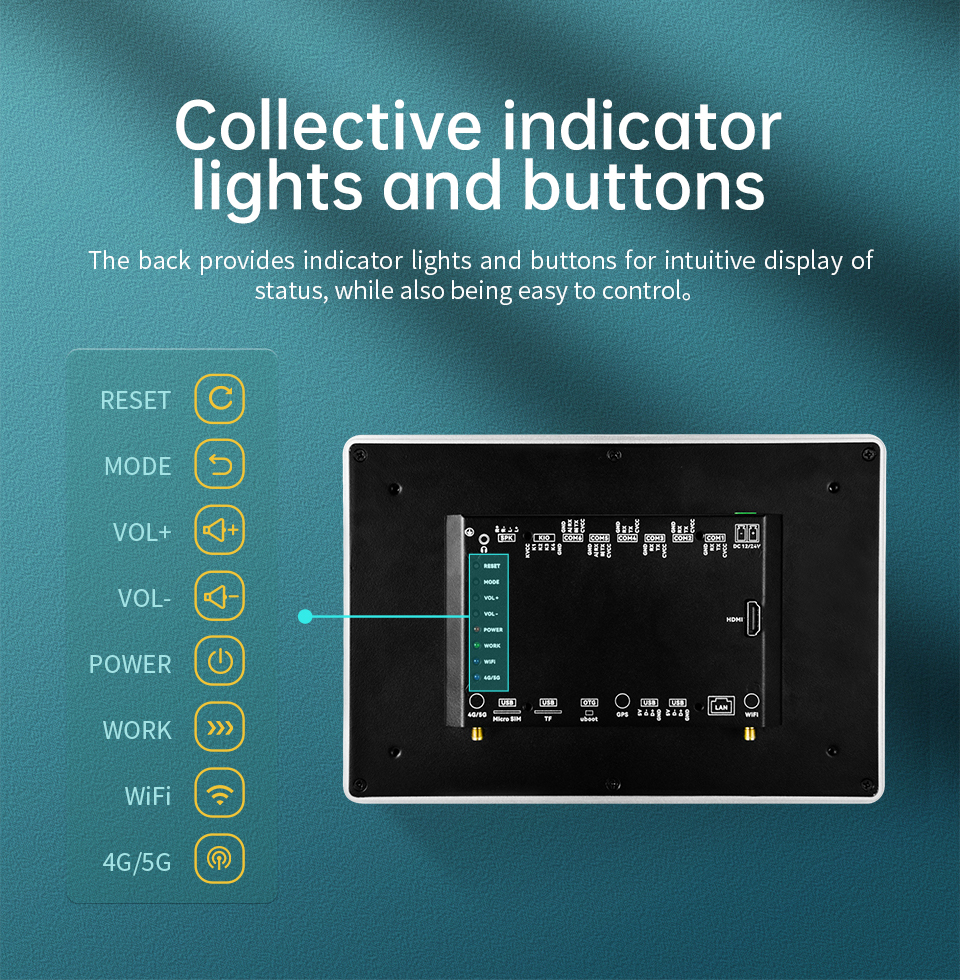

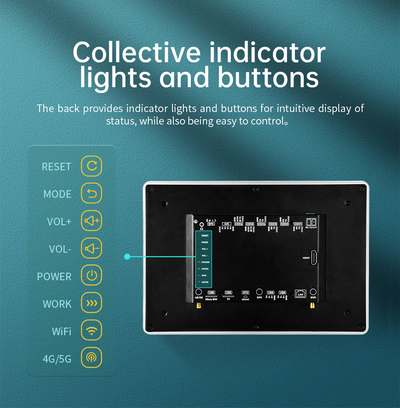

- Reset and Burn Button

- TF Card: Self-elastic TF Card Socket, Supports Up to 256GB TF Card

- Amplifier 80•6W Dual-channel Audio Amplifier Output

- Mic 1-channel Single-ended MIC Input (Pin Header Interface)

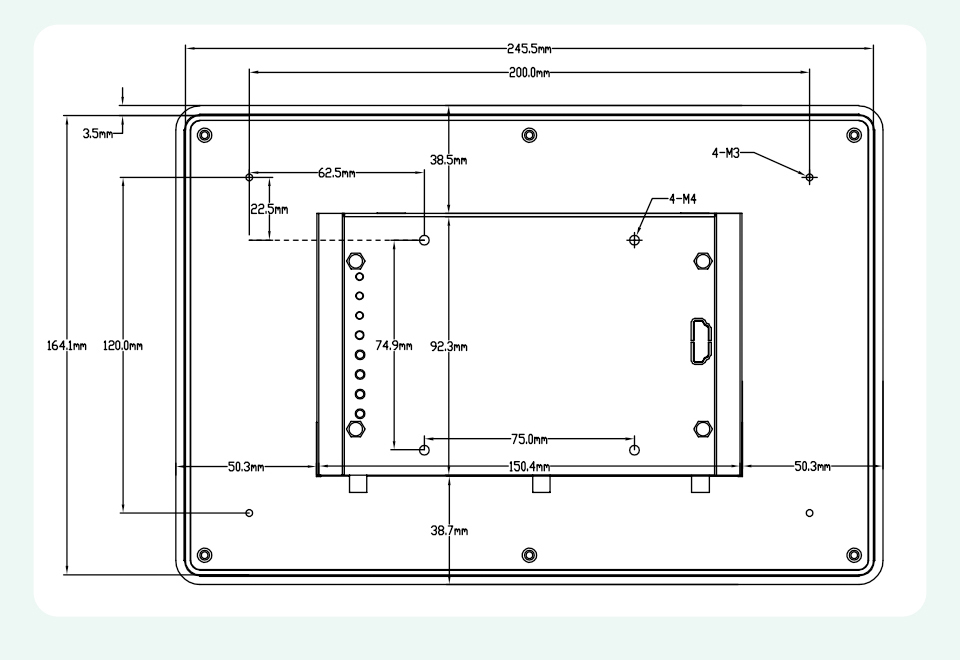

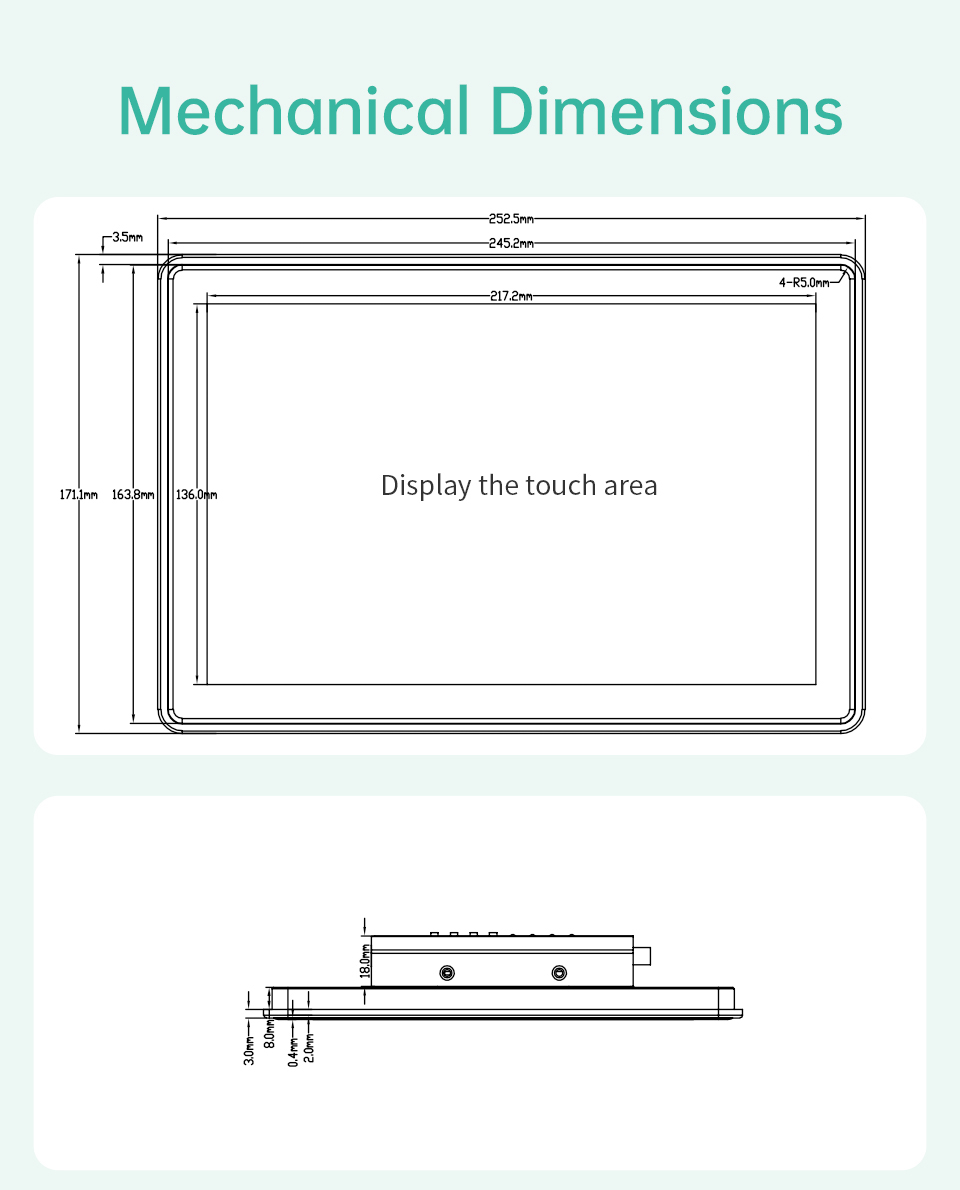

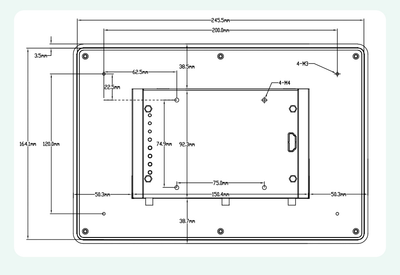

- Overall Dimension: L*W*H 189.4*121.2mm

- Display Dimension:154.1*85.9mm

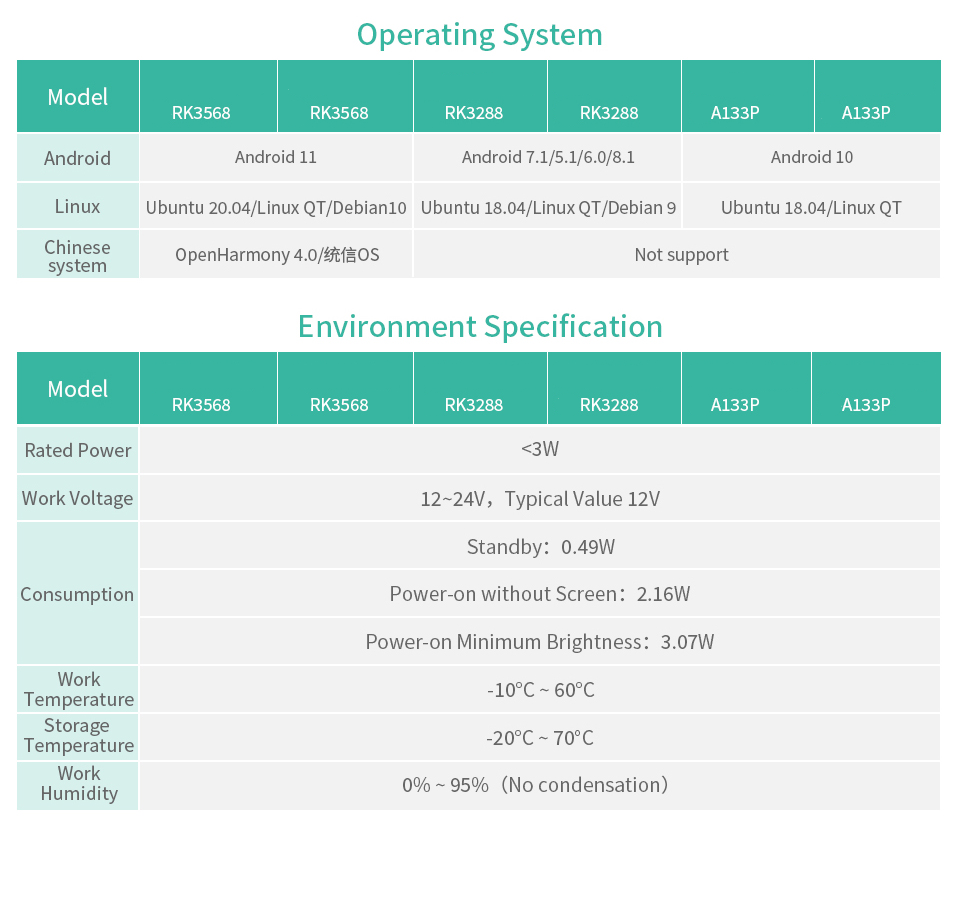

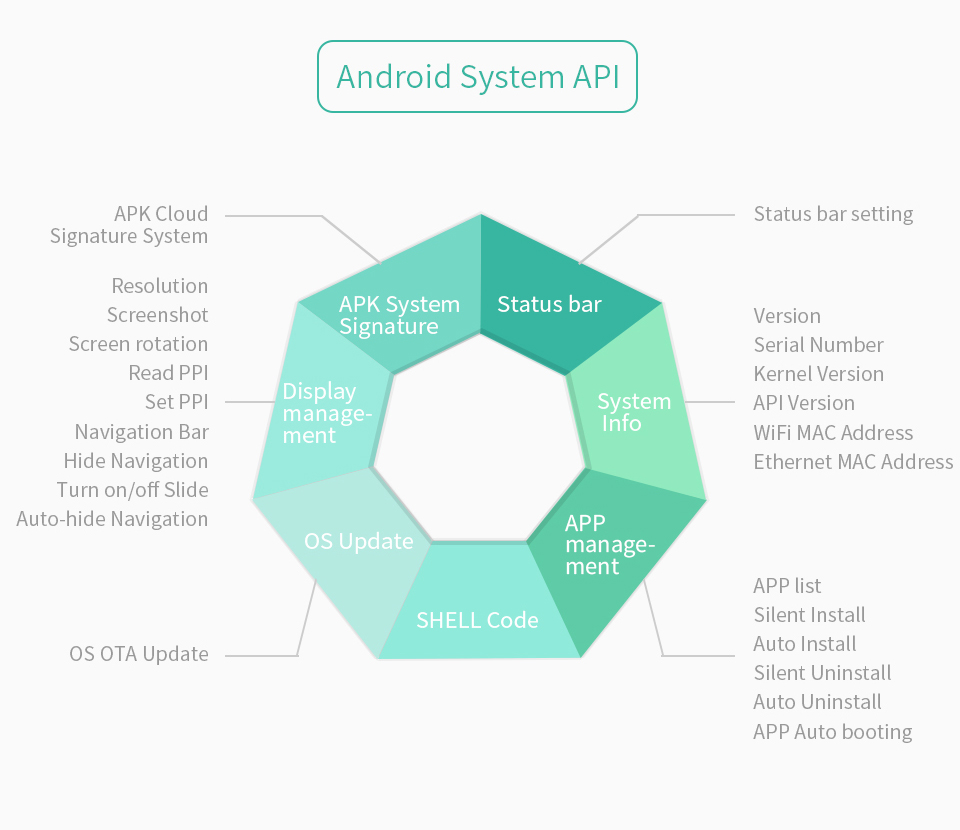

- Operating System: Default Android 10.0, Linux QT Optional



Empowering Advanced Control and Connectivity with the GeniusCore's ControlHub Aluminum Frame Multiport Panel PC



GeniusCore's Control Hub Aluminum - 10.1-Inch A133P Model is purpose-built to elevate control and monitoring in industrial and IoT environments. Powered by the Allwinner A133P 4-Core A53 processor clocked up to 1.8GHz and the GE8300 GPU, this model provides robust performance tailored for demanding applications. Available in 1GB+8GB, 2GB+16GB, and 4GB+32GB configurations, it meets a variety of memory and storage needs.

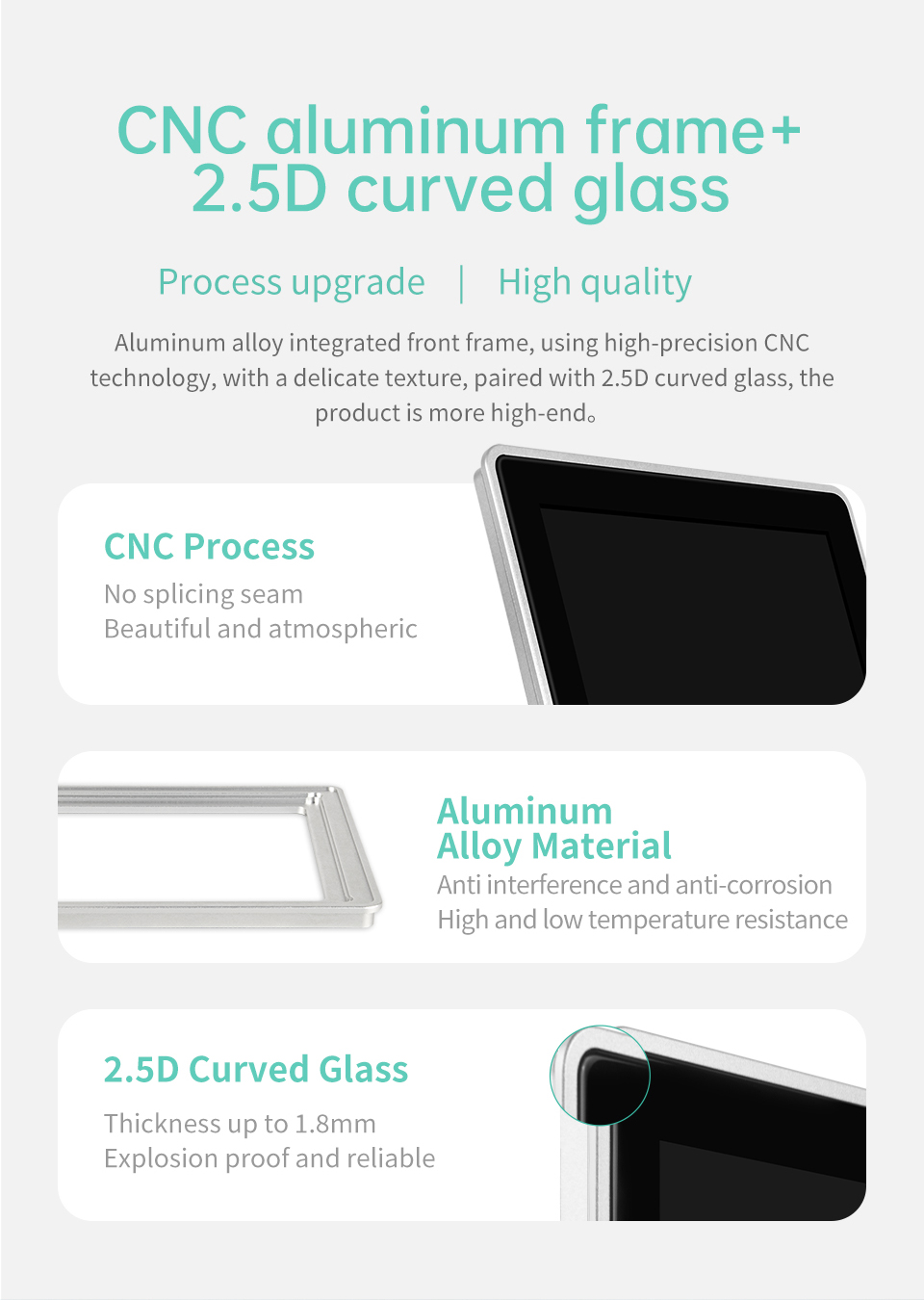

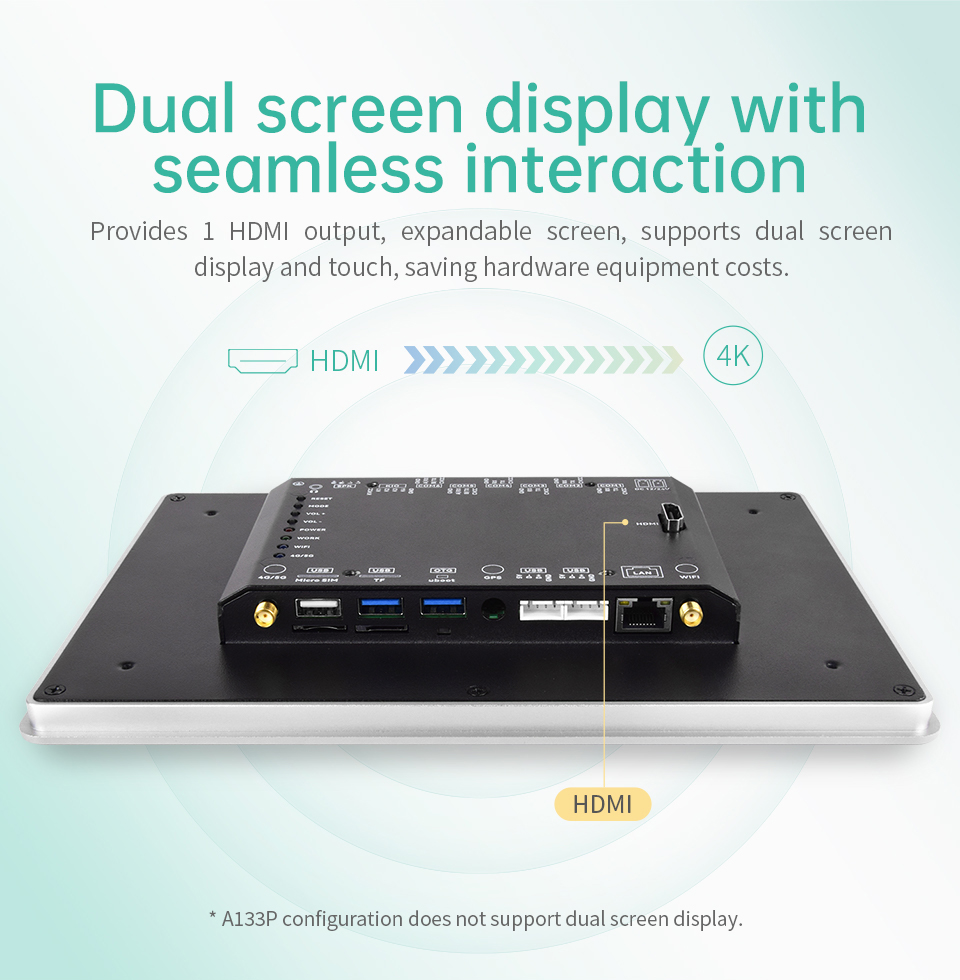

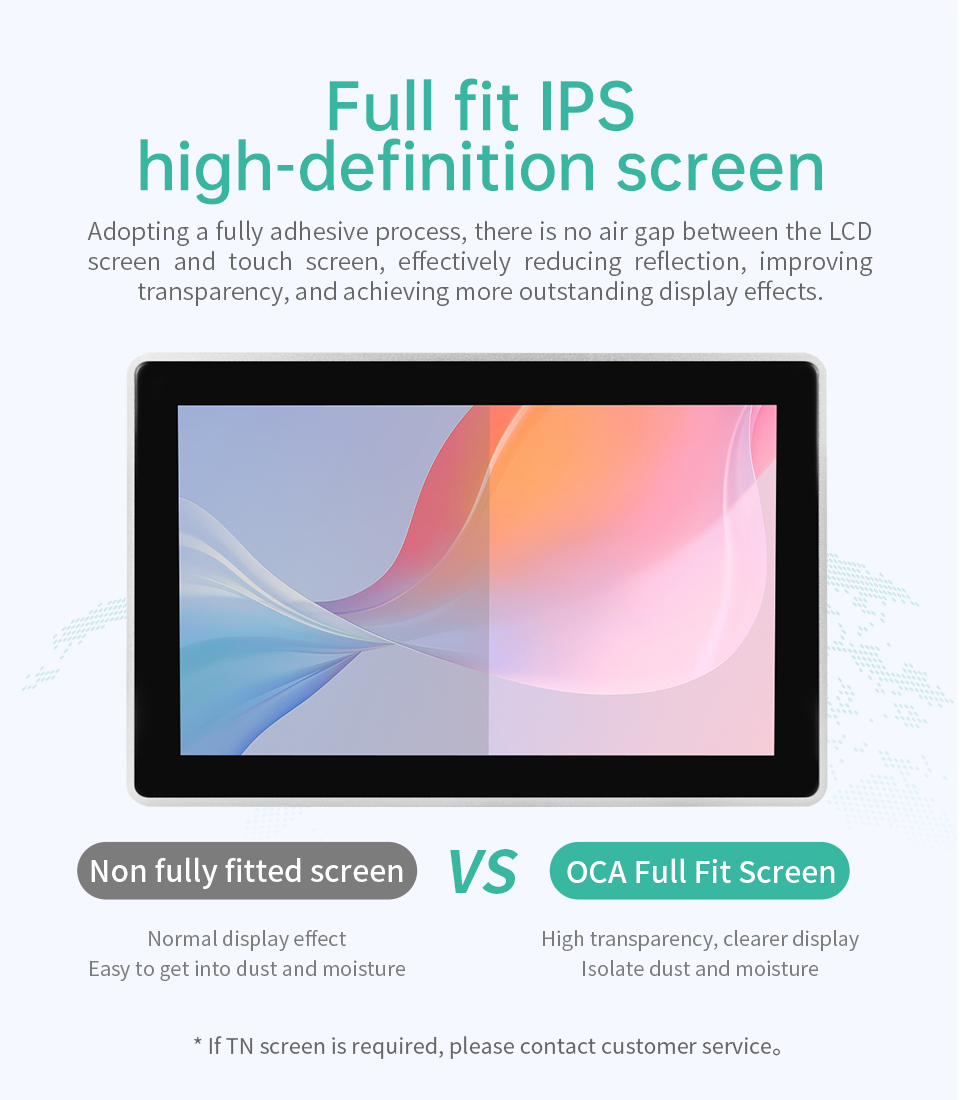

The 10.1-inch 800x1280 IPS display offers a high-definition, large viewing area, with 5-point capacitive touch for precise, real-time interactions. The IP65-rated aluminum frame ensures durability against dust and water, making it reliable in rugged environments. With 100Mbps Ethernet and optional COM and Uart6 serial ports, the A133P model supports seamless connectivity across devices, though it does not include an HDMI port.



Running Android 10 (with optional Ubuntu 18.04/Linux QT), it easily integrates into various software environments. Connectivity options like optional 4G/5G, single-frequency WiFi 6 (with optional dual-frequency), and GPS with dual positioning (Beidou and GPS) make it suitable for remote operations and mobile applications. Supported by flexible power input options DC12V ± 5%/DC24V ± 5%, the A133P 10.1-inch model is a powerful solution for automation, fleet management, and industrial monitoring. With a 3-year warranty, this device ensures long-term reliability in demanding applications.
