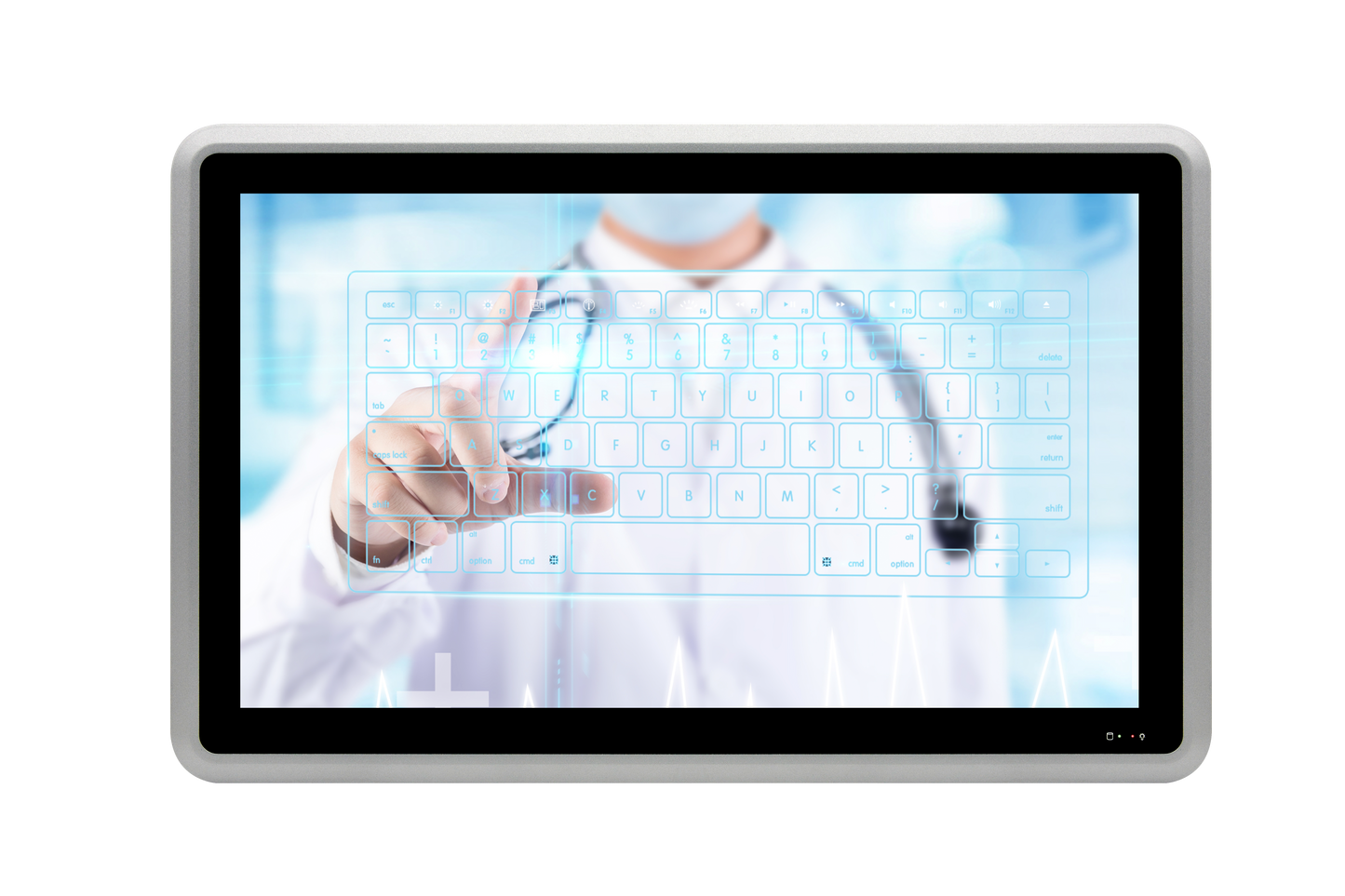

15.6″ Fanless Industrial Panel PC| Intel Core i5 (11th–12th Gen)| FHD| IP65| HDMI + DP

$596.00


15.6″ Fanless Industrial Panel PC| Intel Core i5 (11th–12th Gen)| FHD| IP65| HDMI + DP

SKU GH-PC1581-V2-1235UG

15.6″ Fanless Industrial Panel PC| Intel Core i5 (11th–12th Gen)| FHD| IP65| HDMI + DP. Industrial Android HMI panel PC for machine control, SCADA operator stations, kiosk and embedded projects. GeniusCore.

Highlights
İşlemci: Intel Core i5-1235U (12. Nesil), 10 çekirdek (2P+8E), taban 1,3 GHz / turbo 4,4 GHz

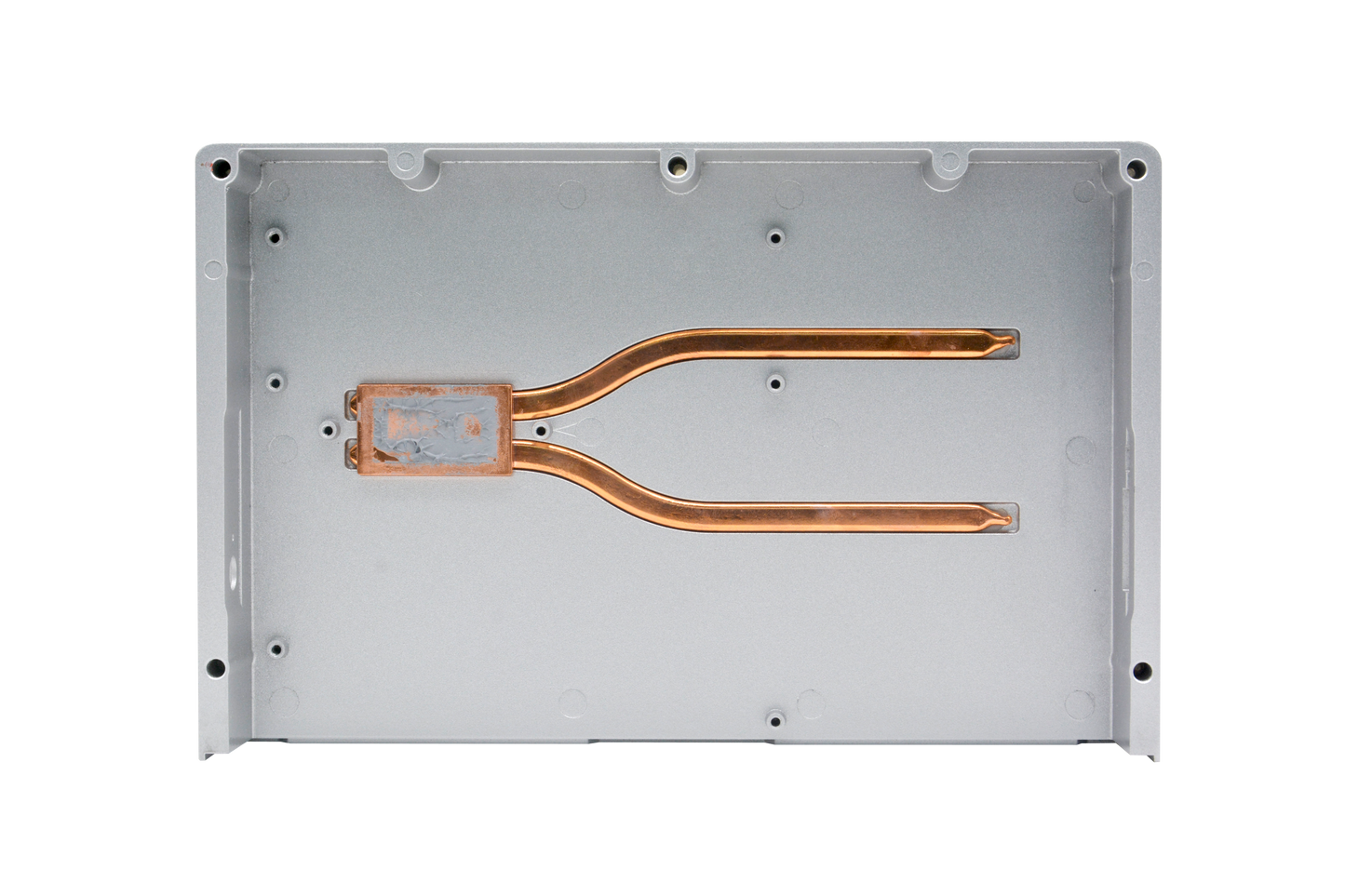

Soğutma: Fansız (fanless) pasif soğutma
Bellek: 2× DDR4 slot (satışa sunulan konfigürasyon: 16 GB DDR4)
Depolama: 1× mSATA (satışa sunulan konfigürasyon: 256 GB)
Ekran boyutu: 15,6 inç endüstriyel LCD (16:9)
Çözünürlük: 1920 × 1080 (Full HD)
Windows işletim sistemi (lisanslı Windows yapılandırması)
Technical specifications
Ekran boyutu 15,6 inç endüstriyel LCD (16:9)
Çözünürlük 1920 × 1080 (Full HD)
Parlaklık 300 cd/m²
Dokunmatik Kapasitif (Capacitive Touch)
Panel tipi IPS / endüstriyel LCD
İşlemci Intel Core i5-1235U (12. Nesil), 10 çekirdek (2P+8E), taban 1,3 GHz / turbo 4,4 GHz
Soğutma Fansız (fanless) pasif soğutma
Bellek 2× DDR4 slot (satışa sunulan konfigürasyon: 16 GB DDR4)
Depolama 1× mSATA (satışa sunulan konfigürasyon: 256 GB)
USB 4× USB 3.0 + 2× USB 2.0
Video 1× HDMI + 1× DisplayPort
Seri port 6× RS232
Ethernet 2× LAN (Gigabit)
Kablosuz Wi-Fi / Wi-Fi 6 + Bluetooth
Hücresel 4G/5G modül desteği (opsiyonel)
Besleme DC 9–36 V
Montaj VESA / gömülü (embedded) panel montaj
Gövde Alüminyum alaşım, ön panel IP65
Çalışma sıcaklığı -10 °C ~ +50 °C
Feature Windows işletim sistemi (lisanslı Windows yapılandırması)
Feature Endüstriyel SCADA, HMI ve otomasyon yazılımları ile uyumlu
Besleme aralığı DC 9–36 V (geniş endüstriyel giriş)
Çalışma sıcaklığı -10 °C ~ +50 °C
Feature Fansız tasarım — tozlu ve sessizlik gerektiren ortamlar için uygun
Feature Ön panel IP65 koruma
Feature Endüstriyel alüminyum gövde
Feature Geniş gerilim aralığı ile saha besleme toleransı
Feature CE uyumlu endüstriyel tasarım
Package contents
15,6 inç Intel i5-1235U endüstriyel Windows HMI panel PC
Güç / montaj aksesuarları (konfigürasyona göre)
Kullanım kılavuzu

Specifications may vary by configuration. Contact us for project options.

Specification Details
Cooling / structure Fanless
Screen size 15.6"
Aspect ratio 16:9
Resolution 1920*1080
CPU I5-1235U
Memory (RAM) SC: 2*DDR4 slot (4/8/16/32/64GB options)
Storage 1*mSATA (32/64/128/256/512GB options) 1*M.2 Nvme SSD (128/256/512GB/1TB options) 1*2.5 inch SATA SSD (128/256/512GB/1TB/2TB options)
USB SC: 4*USB3.0, 2*USB2.0
HDMI SC: 1* HDMI
DisplayPort SC: 1* DP
Serial (COM) SC: 6*RS232 Option: 5*RS232+1*RS485 5*RS232+1*RS422 4*RS232+1*RS485+1*RS422 4*RS232+2*RS485 COM1 RS232 DB9 serial port COM2 RS232/RS485/RS422 DB9 serial port COM3 RS232/RS485 serial port on the 2*15pin phoenix connector COM4-COM6 RS232 serial port on the 2*15pin phoenix connector COM1-COM2 support 9th Pin charged
Ethernet (LAN) SC: 2*LAN
Power input DC 9~36V
Wi-Fi 1* Wifi/WIfi 6 Module option
4G / 5G 1* 4G/5G Module option
Operating system SC: Windows Linux Ubuntu option
LCD / touch SC: Capacitive Touch Option: Resistive Touch
Brightness SC: 300 cd/㎡
Operating temperature (-10-+50)
Enclosure SC: Aluminum alloy, Front panel IP65
Mounting VESA/Embedded
CPU / SoC Intel i5
Cooling Fanless
