BOE

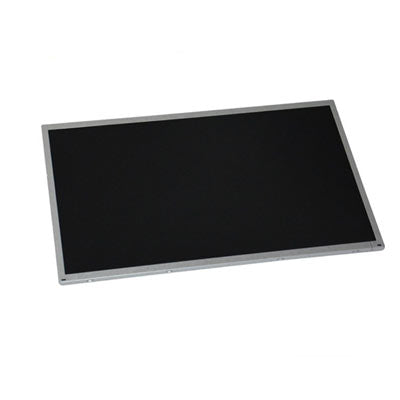

BOE DV185WHM-NM0

$168.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:DV185WHM-NM0
  • Brand:BOE
  • Size:18.5
  • Resolution:1366X768
  • Brightness:250 cd/m2
  • Viewing angle:89/89/89/89
  • Interface:LVDS
  • CR:1000:1
  • Operating Temp.: 0 ~ 50 °C
  • Parameters
Manufacturer BOE
Model Name DV185WHM-NM0
Screen Size 18.5”
Pixel Number 1366(RGB)X768
Active Area(mm) 409.8X230.4 (HXV)
Outline(mm) 430.4X254.6X10.9(HXV)
Bezel Area(mm) 413.4X234(HXV)
Treatment Haze 25%, 3H
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10) Left / Right / Up / Down
Response 14 (Typ.)(Tr+Td) ms
Work Mode Normally black, Transmissive
Color Depth 16.7M
Backlight 30K hours,No Driver
Net Weight 1270g (Typ.)
operating frequency 60Hz
Touchscreen without
Signal Type/interface Type LVDS(1 ch, 8 bit) , 30 pins,connector
Voltage Supply 5V (Typ.)
Temperature Storage Temp.: 0 ~ 50 °C
Operating Temp.: -20 ~ 60 °C
Package

As request


BOE 18.5 inch lcd screen DV185WHM-NM0 with resolution 1366x768 and brightness 250nits.

Free view angle and good color depth 16.7M

Technical specifications are loading…
