BOE

BOE DV150X0M-N10

$80.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:DV150X0M-N10
  • Brand:BOE
  • Size:15 inch
  • Resolution:1024*768
  • Brightness:350 cd/m²
  • Viewing angle:85/85/85/85
  • Interface:LVDS (1 ch, 8-bit) , 20 pins
  • CR:1000 : 1
  • Operating Temp.: -20 ~ 70 °C
  • Parameters
Manufacturer BOE
Model Name DV150X0M-N10
Screen Size 15
Pixel Number 1024(RGB)×768  [XGA]
Active Area(mm) 304.128×228.096mm (H×V)
Outline(mm) 326.5×253.5×9.7 mm(H×V×D)
Bezel Area(mm) 306.5×230.1 mm(H×V)
Treatment Haze 25%, Hardness 3H
Luminance 350 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 30 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white,Transmissive
Color Depth 16.7M , 72% NTSC
Backlight 50K hours,with LED Driver
Net Weight 930g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 8bit) , 20 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~ 70 °C
Operating Temp.: -20 ~70°C
Package 15 pcs/ carton

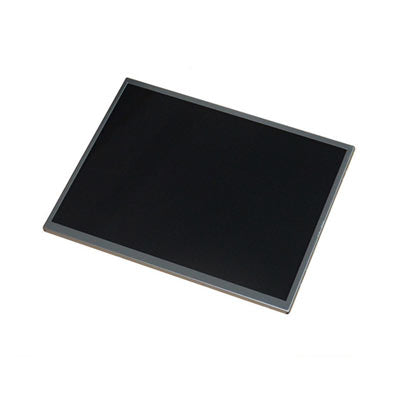

BOE 15 inch TFT LCD panel with 1024x768 resolution and wide view angle.

Long life time 50,000 hours, suitable for general industrial applications like ATM, Kiosk, HMI.
