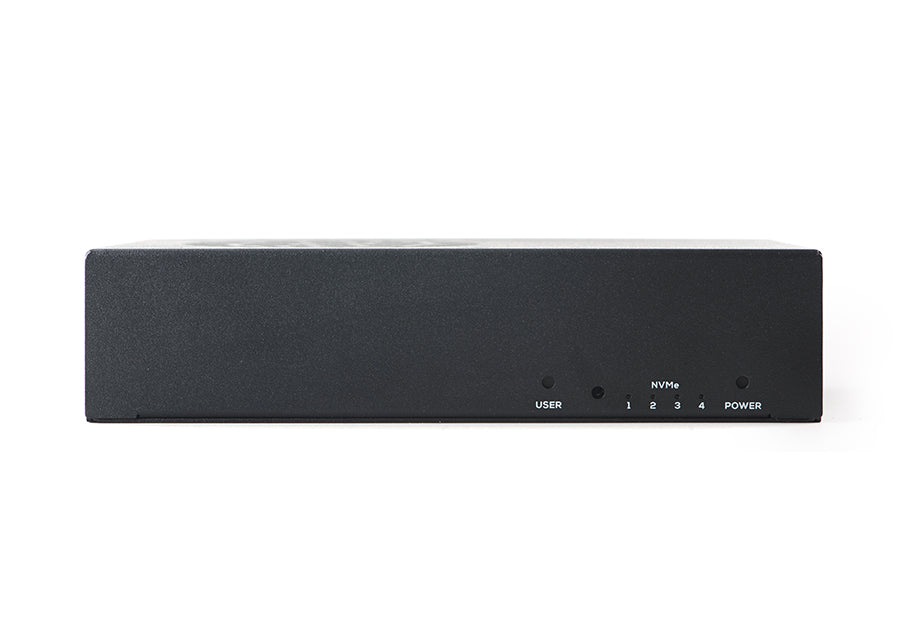

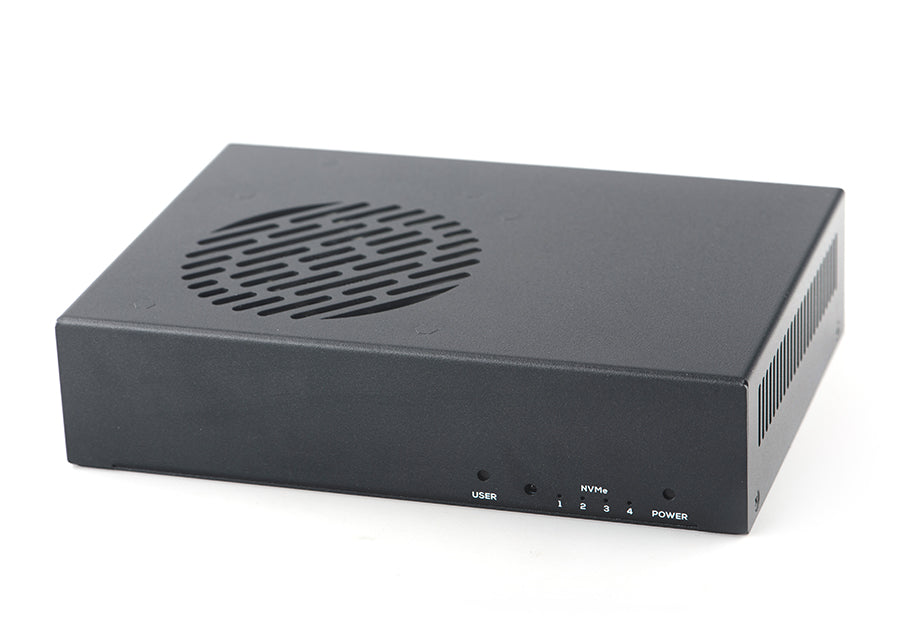

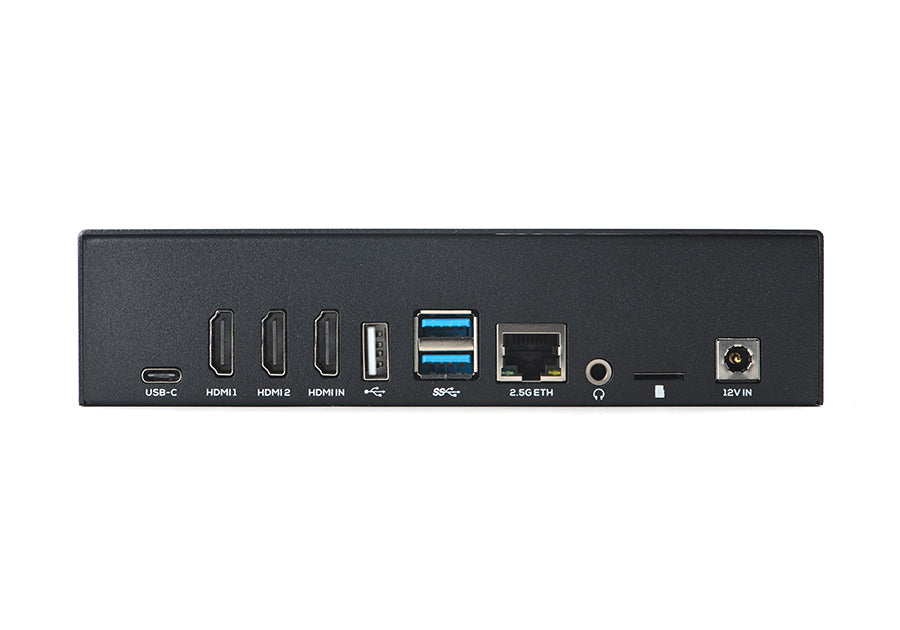

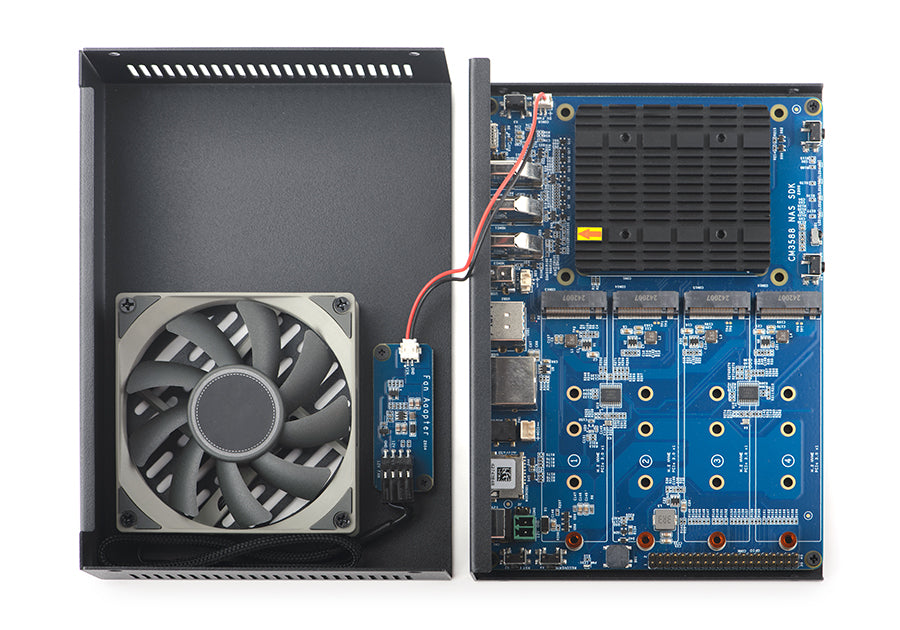

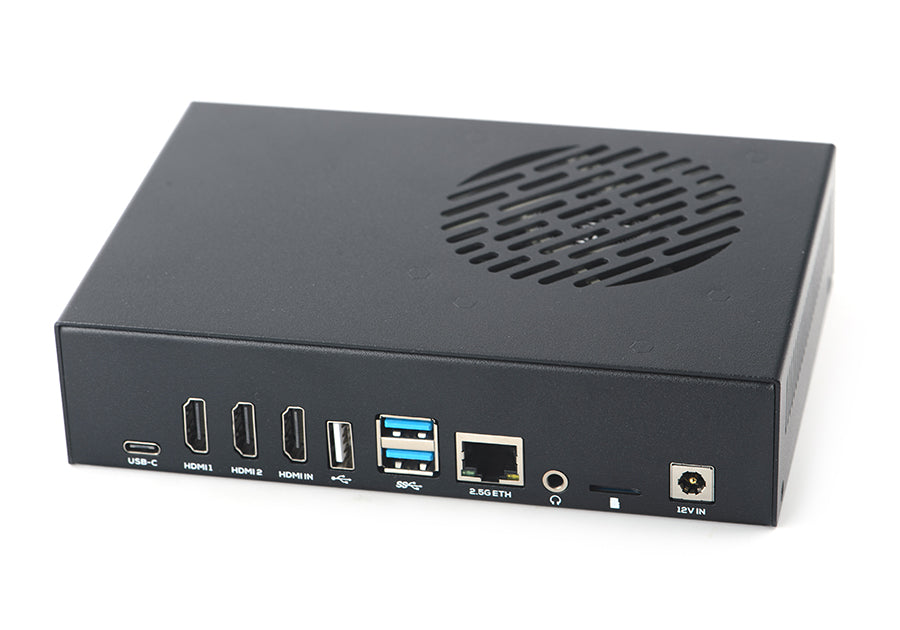

CM3588/CM3588 PLUS NAS Kit with Cooling Fan - Efficient Storage Solution

$28.50

Product overview based on official FriendlyElec documentation

Prepare the following items before using your CM3588. This kit includes essential components for setting up your NAS system efficiently.

Product code: CM3588

Package contents
  • CM3588 Core Board
  • CM3588 NAS Kit Carrier Board
  • MicroSD Card/TF Card: Class 10 or Above, minimum 8GB SDHC
  • DC 12V/2A Power Supply
  • For development and compilation, a computer with Internet access is required. It is recommended to install Ubuntu 20.04 64-bit and use the provided script to initialize the development environment, or utilize a Docker container.
  • sd: Use this to boot the entire OS from the SD card.
  • eflasher: Use this to flash the OS to eMMC via TF card.
  • usb: Use this to flash the OS to eMMC via USB.
  • Obtain an 8GB microSD card.
  • Visit the download link to access image files (in the '01_Official images/01_SD card images' directory).
  • Download the win32diskimager tool (in the '05_Tools' directory), or use your preferred tool.
  • Extract the .gz format compressed file to obtain the .img format image file.
  • Run the win32diskimager utility under Windows as an administrator. In the utility's main window, select your SD card's drive, the desired image file, and click 'write' to start flashing the SD card.
  • Remove the SD card and insert it into the CM3588's microSD card slot.
  • Power on the CM3588; it will boot from your TF card. Some models may require pressing the Power button to start.
  • Acquire an SDHC card with a minimum capacity of 8GB.
  • Visit the download link to access image files (in the '01_Official images/02_SD-to-eMMC images' directory) and the win32diskimager tool (in the '05_Tools' directory).
  • Extract the .gz format compressed file to obtain the .img format image file.
  • Run the win32diskimager utility under Windows as an administrator. In the utility's main window, select your SD card's drive, the desired image file, and click 'write' to start flashing the SD card.
  • Eject your SD card and insert it into the CM3588’s microSD card slot.
  • Turn on the CM3588; it will boot from the SD card and automatically run EFlasher to install the OS to the board’s eMMC.
  • After flashing is complete, remove the SD card from the CM3588; it will automatically reboot and boot from eMMC.
  • Auto Install (Default Behavior)
Hardware specifications
Parameter Value
SoC Rockchip RK3588
RAM 64-bit 4GB/8GB/16GB LPDDR4X up to 2133MHz, 32GB LPDDR5 up to 2400MHz
Flash 0GB/64GB/256GB eMMC, at HS400 mode
Özellik 1 x microSD interface, support up to SDR104 mode
Özellik 1 x On-board PCIe 2.5G ethernet controller (RTL8125B)
Özellik USB:
Özellik PCIe:
Özellik HDMI output:
HDMI input 1 x HDMI input, up to 4Kp60
Özellik MIPI RX:
Özellik MIPI TX:
Özellik Codec:
Özellik GPIO:
Özellik others:
Power supply 5~20VDC input, 20W max
PCB 8 Layers, CM3588 is 55x65x1.6mm, CM3588 Plus is 55x67.5x1.6mm.
Stacking height 6.6mm
Connector 4 x DF40C-100DP-0.4V(51), the mating connector is DF40HC(3.0)-100DS-0.4V(51)
Ambient Operating Temperature 0℃ to 70℃
