Banana Pi

BananaPi BPI-W2 Board

$78.00

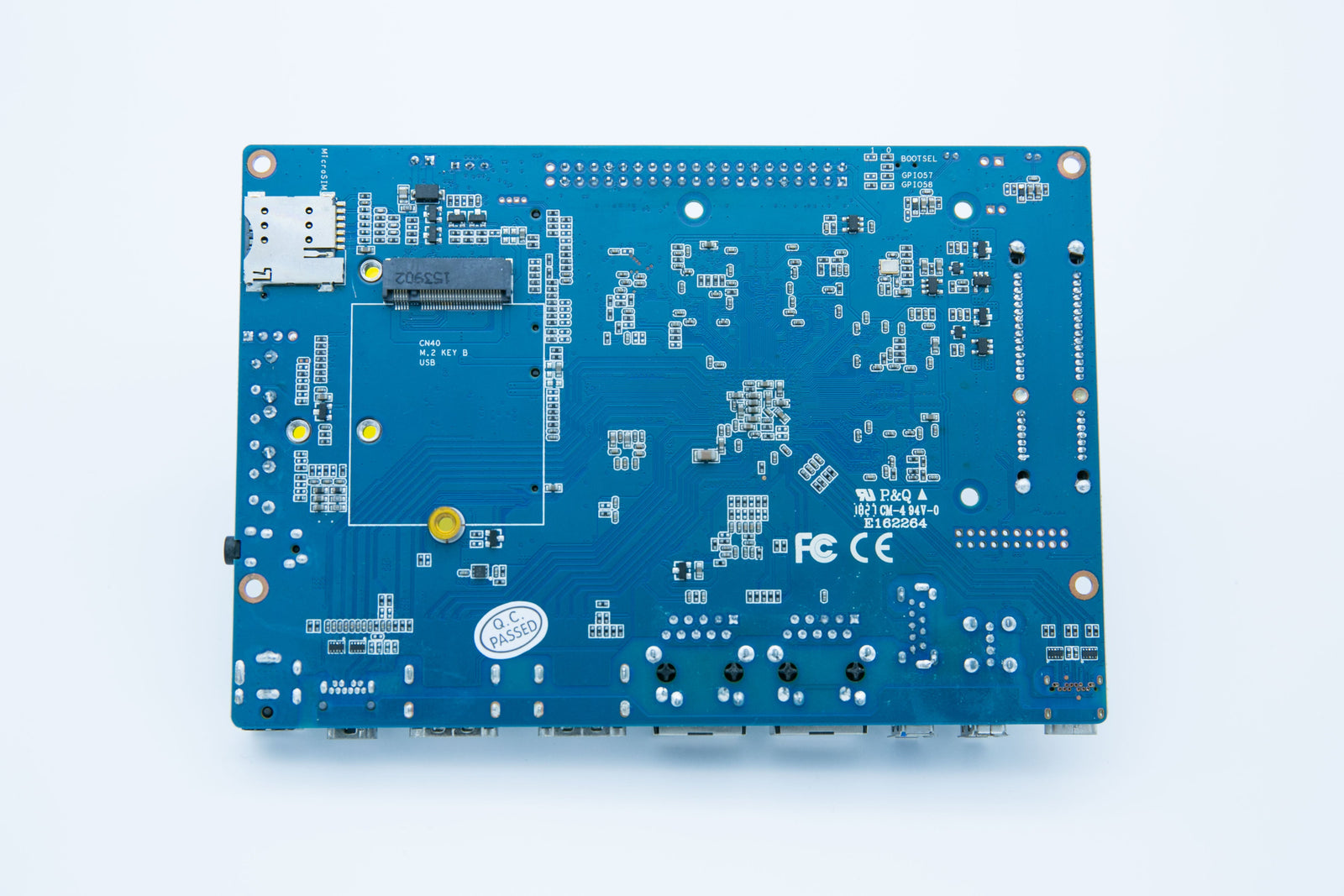

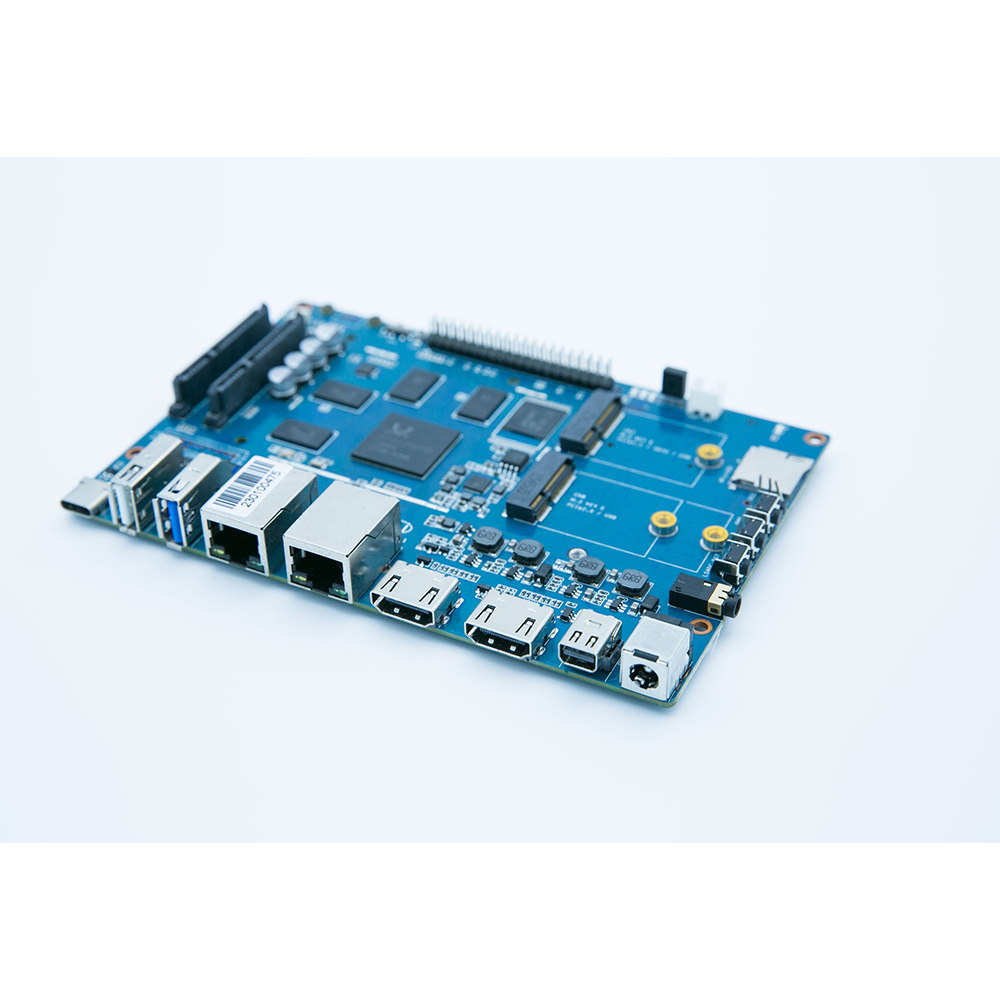

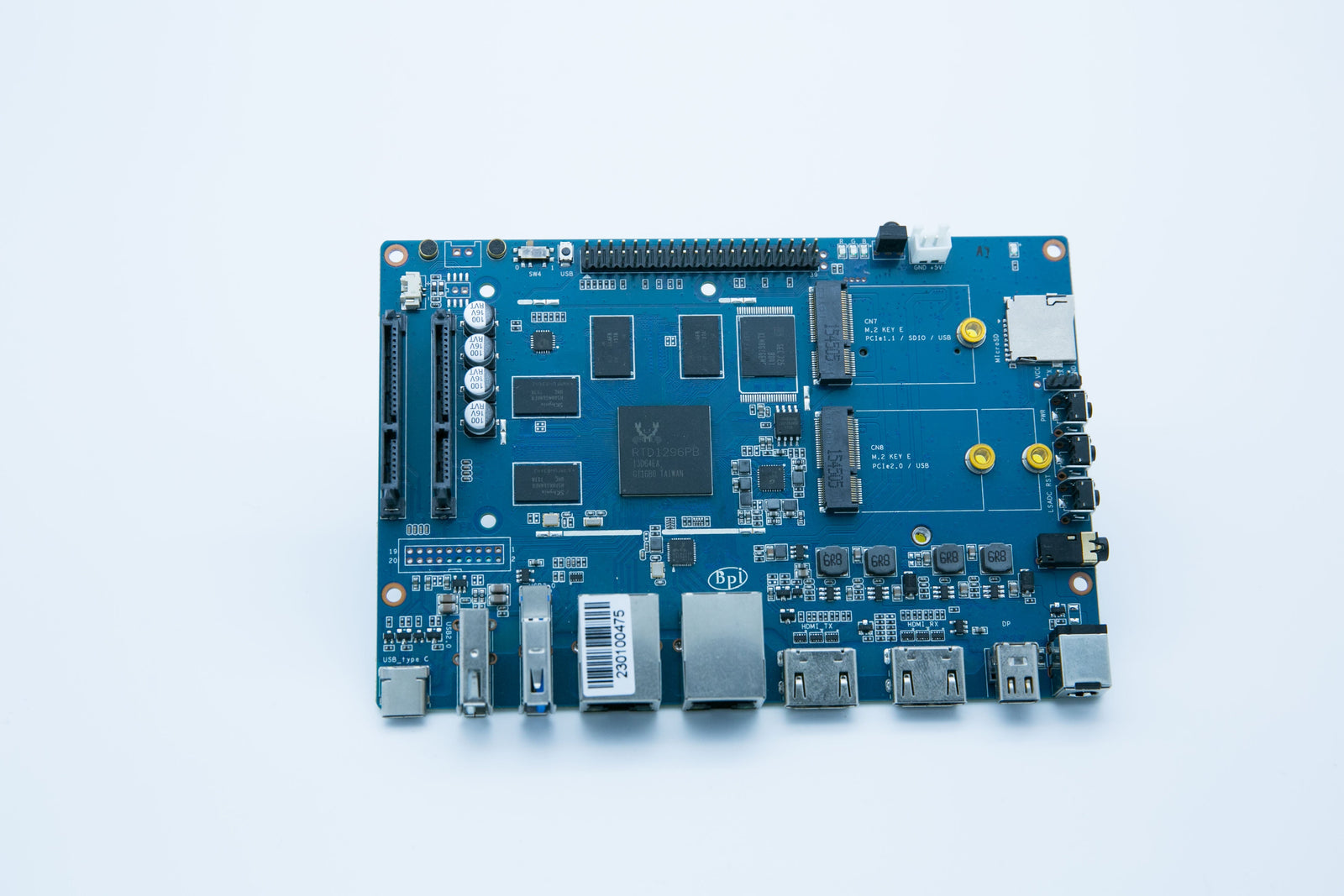

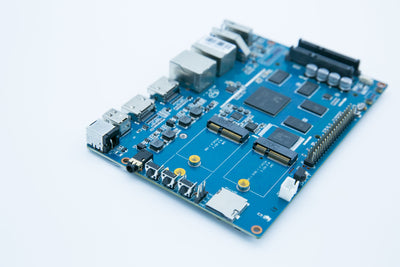

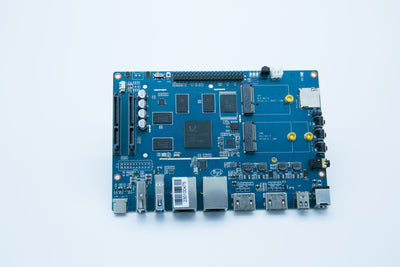

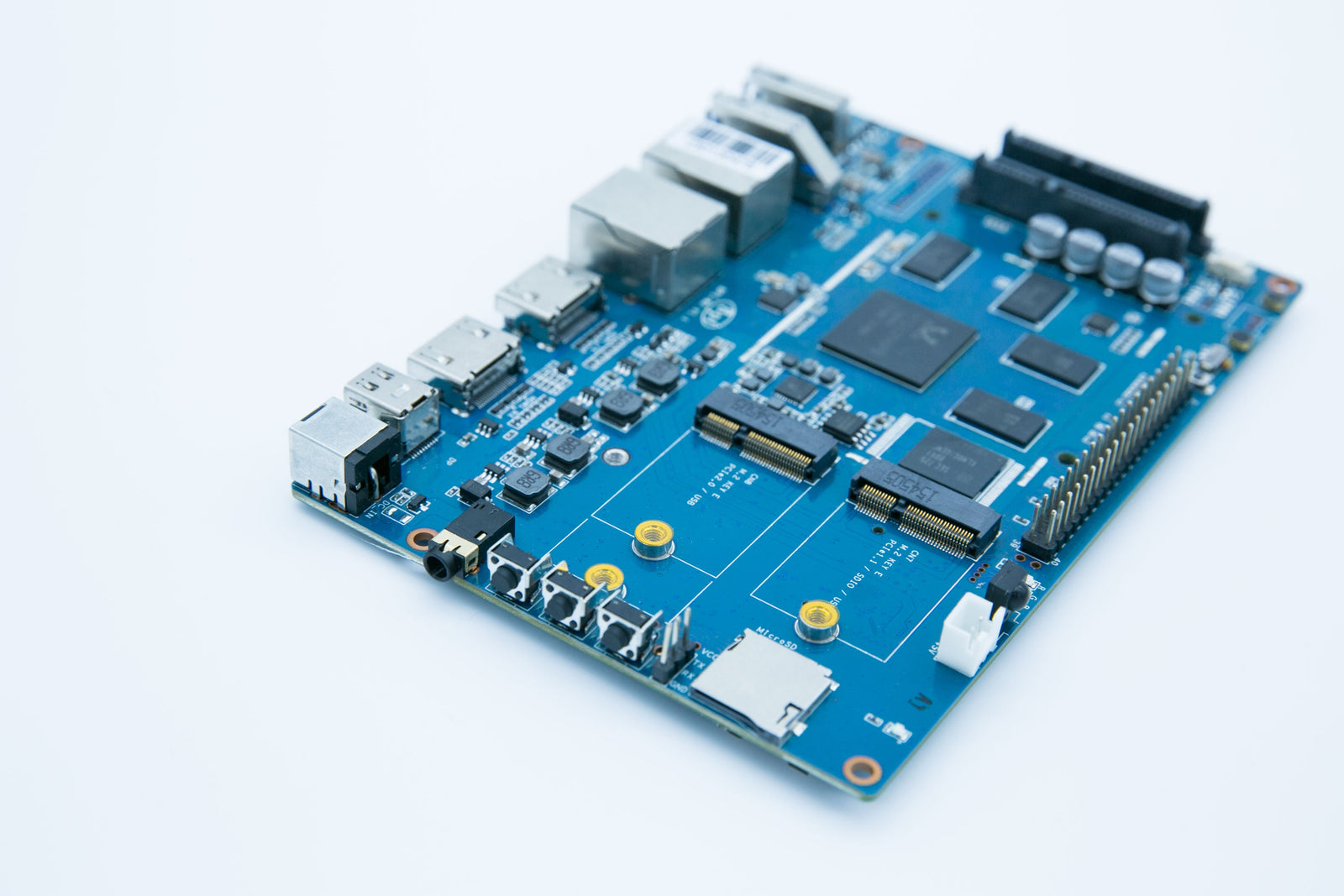

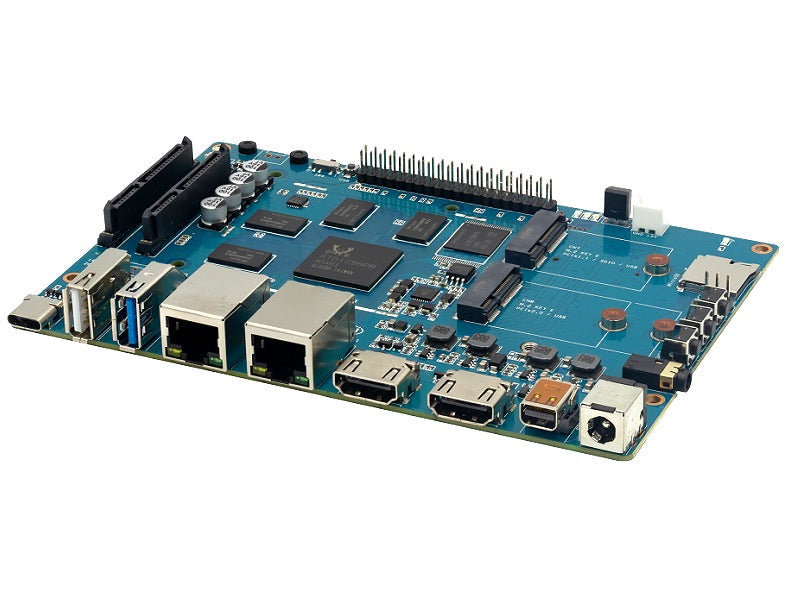

Banana Pi BPI-W2 Board

  • Realtek RTD1296, Quad-core ARM Cortex-A53
  • Mali T820 MP3 GPU
  • 2G DDR4 SDRAM
  • 8G eMMC flash
  • Mini PCIE 2.0 , 1.1 interface ,SDIO,M.2 intereface
  • MicroSD slot supports up to 256GB expansion
  • 2xMIC int/Audio out
  • 2 SATA interface
  • 1XGigabit LAN 1x Gigabit WAN
  • 1xUSB 3.0 2xUSB 2.0
  • HDMI in & HDMI out
  • Mini DP
  • TYPE C


The Banana Pi BPI-W2 is a router based development board, which can run on a variety of open source operating systems including OpenWrt, Android, and linux. It has 1 Gigabit LAN ports, 1 Gigabit WAN. it design with Realtek RTD1296, Quad-core ARM Cortex-A53. with 2G DDR4 and 8G eMMC flash onboard.

BPI-W2 integrate a Quad-core ARM Cortex-A53 MPcore operating up to 1.5GHz, The Router also includes a variety of peripherals, including HDMI RX/TX, Mini DP, PCIe2.0,PCIe1.1&SDIO,M.2 interface, USB 2.0 , USB3.0 Port,TYPE C, SATA port,2 Gbps Port Gigabit Ethernet port, also support 802.11ac/n WLAN connection thru PCI-e port
BPI-W2 can run with Android6.0 smoothly, it also can run OpenWRT,Debian,linux,Ubuntu linux, Raspbian and others OS. The size of Banana Pi BPI-W2 same asBPI-R2, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi3

Hardware interface:

For more information BananaPi BPI-W2 Board, please concact us.

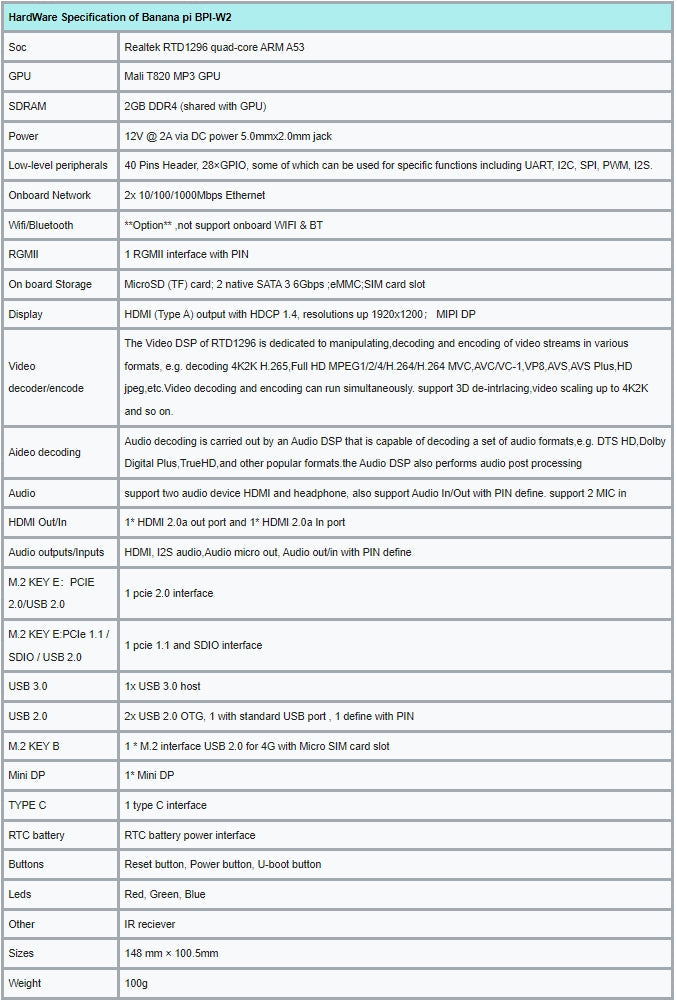

Specification Details
Soc Realtek RTD1296 quad-core ARM A53
GPU Mali T820 MP3 GPU
SDRAM 2GB DDR4 (shared with GPU)
Power 12V @ 2A via DC power 5.0mmx2.0mm jack
Low-level peripherals 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
Onboard Network 2x 10/100/1000Mbps Ethernet
Wifi/Bluetooth Option,not support onboard WIFI
Display HDMI (Type A) output with HDCP 1.4, resolutions up 1920x1200; MIPI DP
Audio support two audio device HDMI and headphone, also support Audio In/Out with PIN define. support 2 MIC in
HDMI Out/In 1* HDMI 2.0a out port and 1* HDMI 2.0a In port
Audio outputs/Inputs HDMI, I2S audio,Audio micro out, Audio out/in with PIN define
USB 3.0 1x USB 3.0 host
USB 2.0 2x USB 2.0 OTG, 1 with standard USB port , 1 define with PIN
Buttons Reset button, Power button, U-boot button
Leds Red, Green, Blue
Sizes 148 mm × 100.5mm
Weight 100g
CPU / SoC RTD1296
