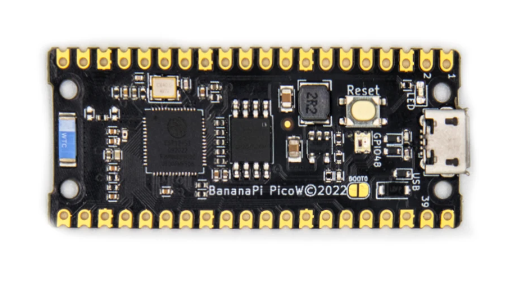

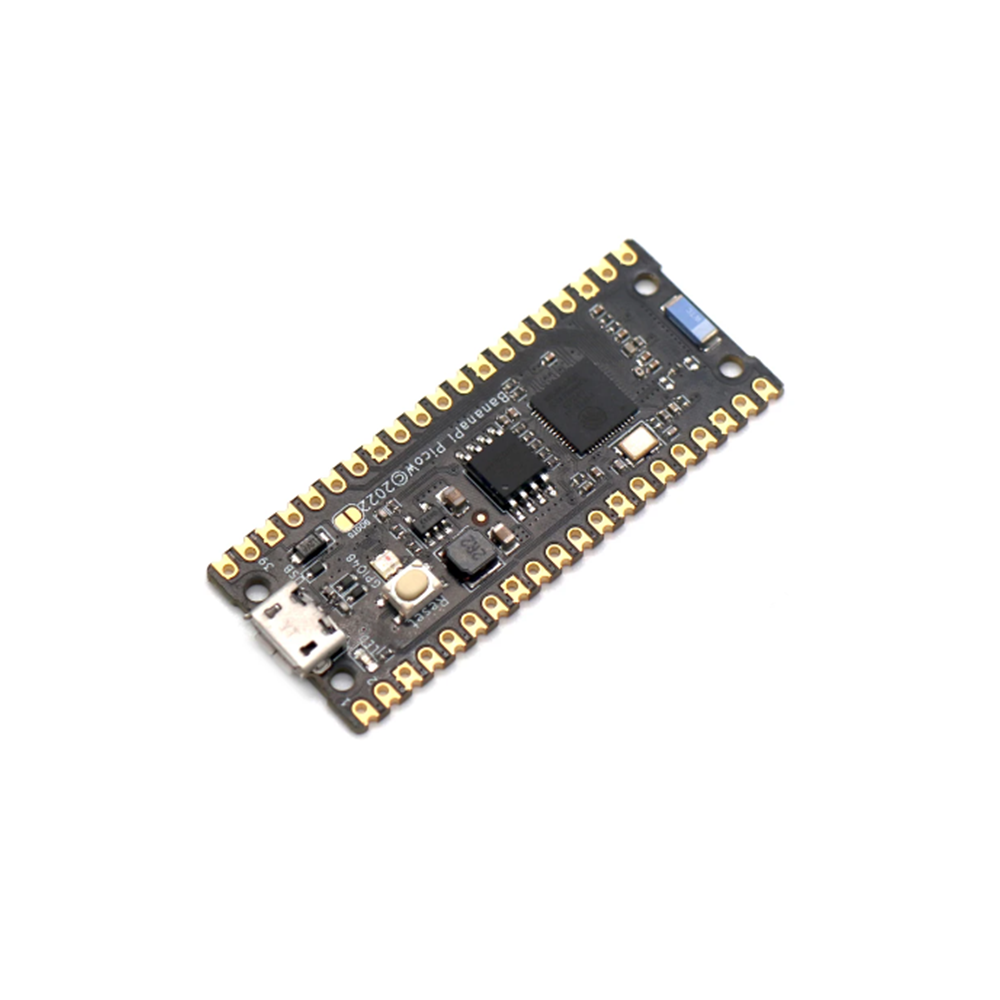

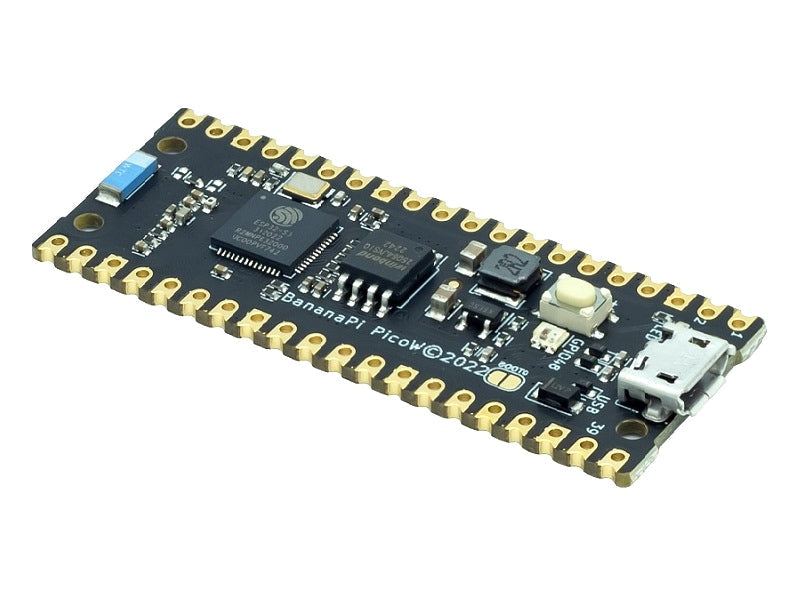

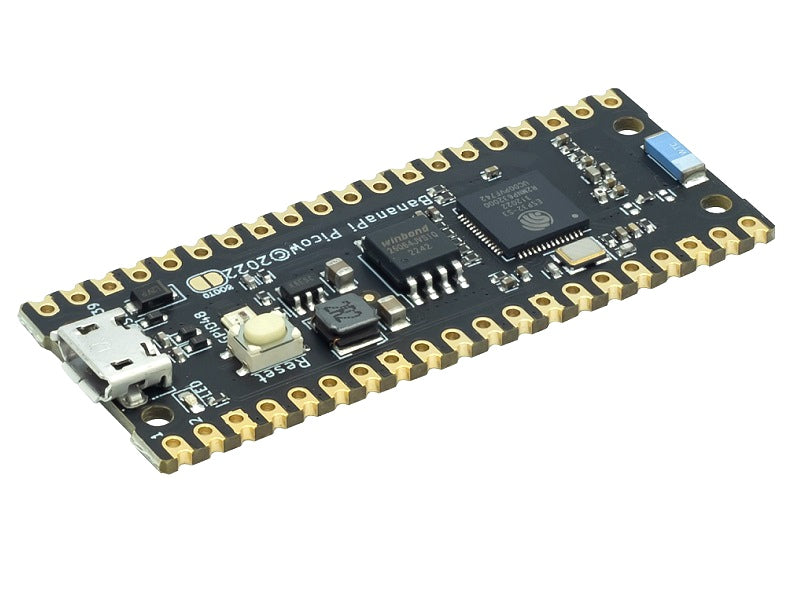

Banana Pi BPI-PicoW-S3 Microcontroller Board

$103.50
Opens WhatsApp with this product and current options


BananaPi BPI-PicoW-S3 Board

SKU BPI-PiCOW-S3

BananaPi BPI-PicoW-S3 Board

SKU BPI-PiCOW-S3

BananaPi BPI-PicoW-S3 Board

ESP32-S3, Xtensa® 32 bit LX7

External PSRAM, FLASH

Ultra-low power 10uA

2.4G WIFI, Bluetooth 5, Bluetooth mesh

GPIO, ADC, TOUCH, PWM, I2C, SPI, RMT, I2S, UART, LCD, CAMERA, USB, JTAG

1*microUSB

1*Full color LED

Banana Pi BPI-PicoW-S3 is a series of low-powered microcontrollers designed for IoT development and Maker DIY board.It desige with ESP32-S3 chip,supports 2.4 GHz Wi-Fi and Bluetooth® LE dual-mode

Specifications may vary by configuration. Contact us for project-specific options.

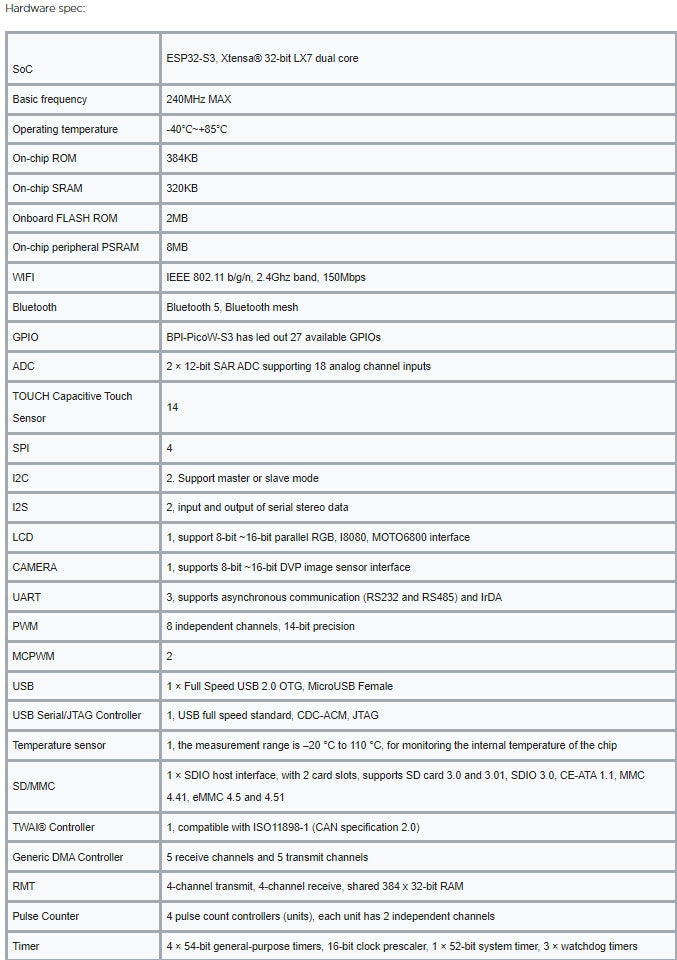

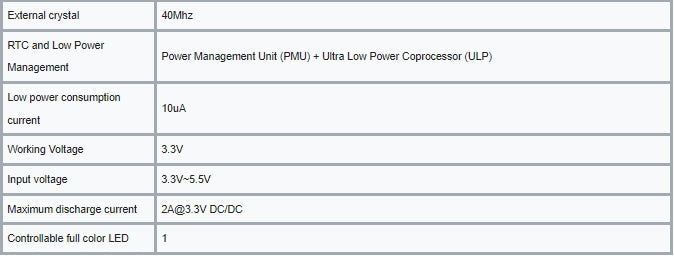

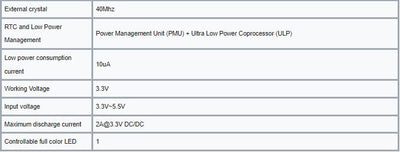

Specification Details
SoC ESP32-S3, Xtensa® 32-bit LX7 dual core
Operating temperature -40℃~+85℃
WIFI IEEE 802.11 b/g/n, 2.4Ghz band, 150Mbps
Bluetooth Bluetooth 5, Bluetooth mesh

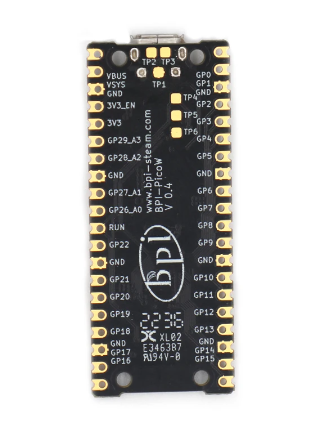

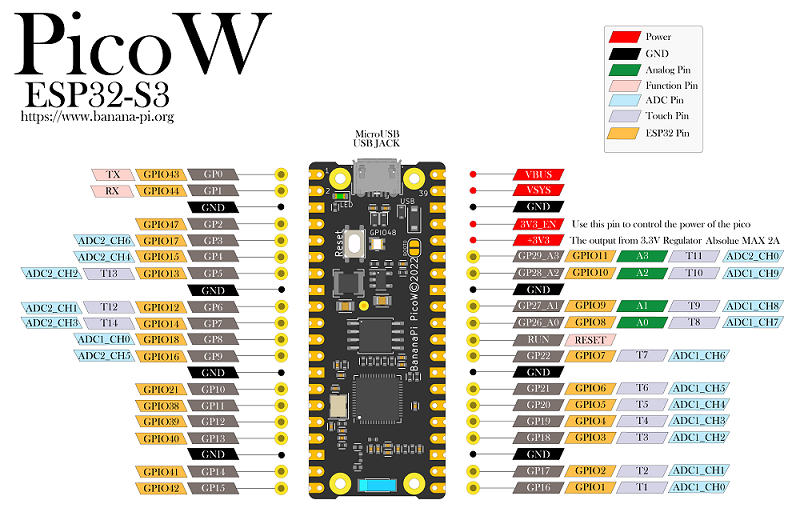

GPIO BPI-PicoW-S3 has led out 27 available GPIOs
CAMERA 1, supports 8-bit ~16-bit DVP image sensor interface
UART 3, supports asynchronous communication (RS232 and RS485) and IrDA
USB 1 × Full Speed ​​USB 2.0 OTG, MicroUSB Female
USB Serial/JTAG Controller 1, USB full speed standard, CDC-ACM, JTAG
Temperature sensor 1, the measurement range is –20 °C to 110 °C, for monitoring the internal temperature of the chip
CPU / SoC ESP32-S3
