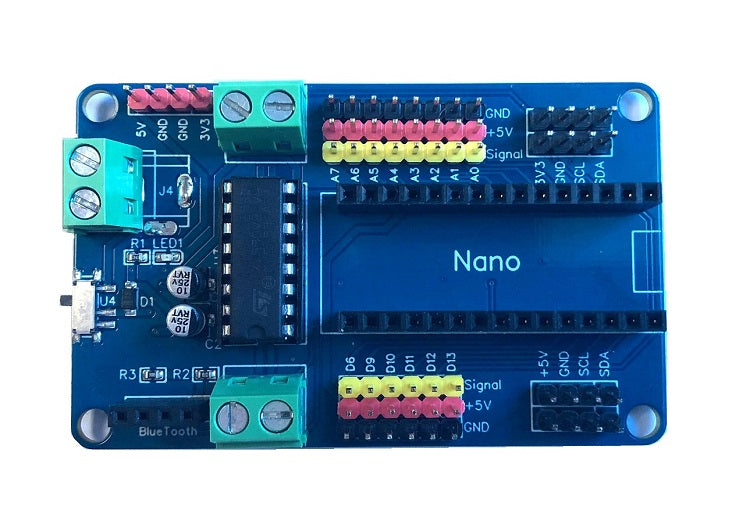

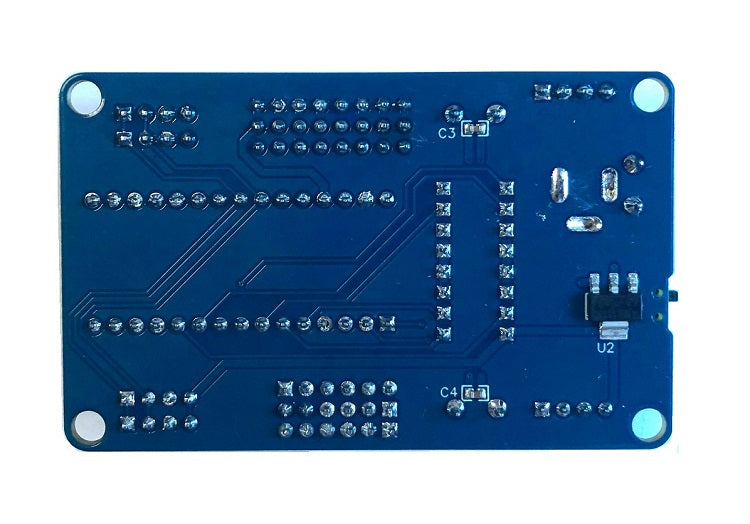

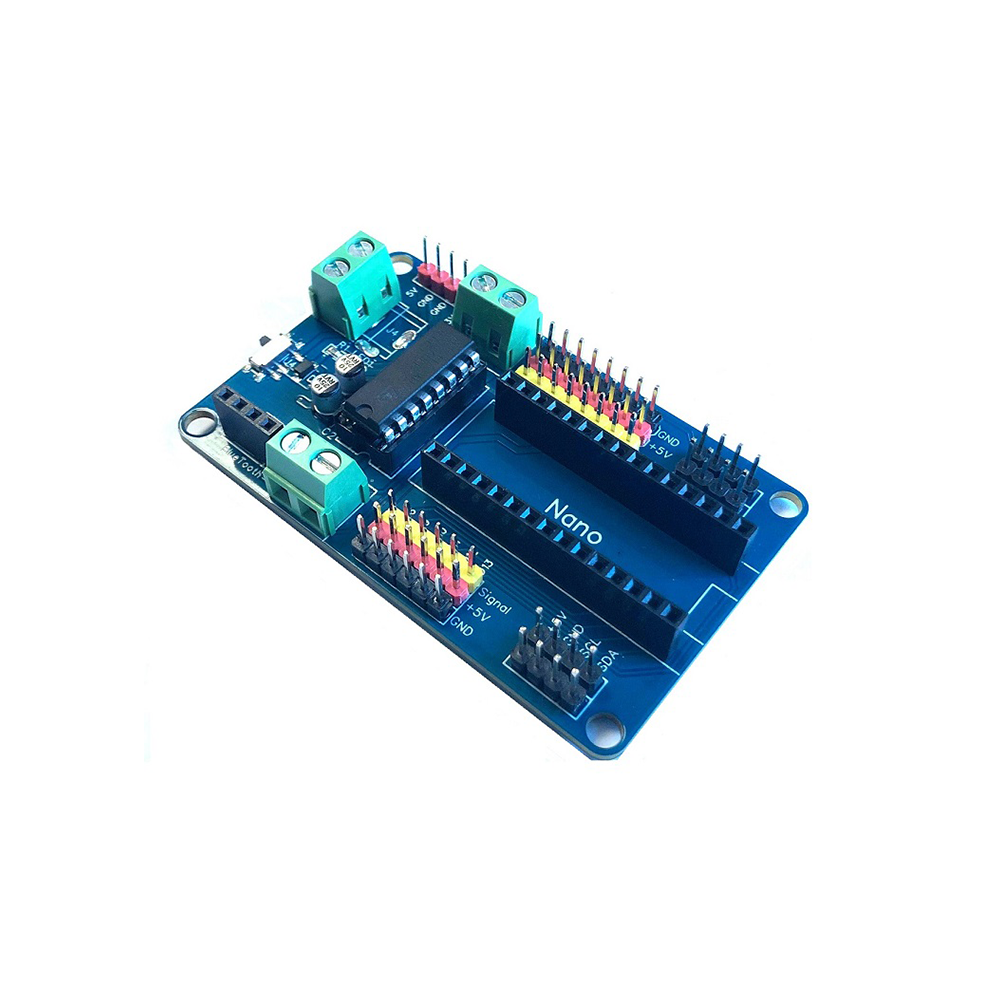

BananaPi BPI-Nano Robot Board

  • Driver chip: L293B
  • Logical working voltage: 5V DC
  • Motor drive voltage: 7-12v DC
  • Maximum driving current: 1A (per circuit)
  • Pin for motor drive: pin4/5/6/7 (Arduino controller)
  • Size: 75mmx45mm

This robot board is design for Arduino Nano and Nano compatible boards.

BPI-Nano robot boards motor drive expansion plate available in the bpi-nano controller supports dual-circuit motor control, with single maximum current up to 1A.

Arduino standard pin design interface, also can be used with Arduino Nano.It can be applied to the development of small mobile robot.

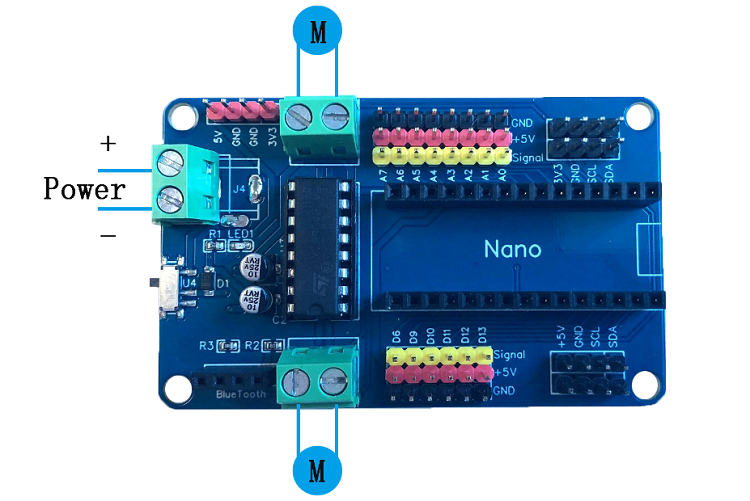

Hardware interface

PIN define

BPI-Nano aruino Nano robort GPIO pin define

Pin

Function

Digital 2、4

Motor2 Steering control, 2 high level, 4 low level positive turn;Whereas inversion

Digital 3

Motor 2 Enable interface, high level enable

Digital 5

Motor 1 Enable interface, high level enable

Digital 7、8

Motor 1 Steering control, 7 high level, 8 low level positive turn;Whereas inversion


For more information about BananaPi BPI-Nano Robot Board, please concact us.
