BananaPi BPI-M4 Berry Board

Introduction

BPI-M4 Berry development board stands as a powerful Single Board Computer (SBC), harnessing the capabilities of the Allwinner H618 System-on-Chip (SoC) to provide developers with impressive performance and a wealth of features. Similar to the Raspberry Pi 4b, the BPI-M4 Berry boasts comparable CPU prowess, 2G LPDDR4 memory and 8G eMMC, integrated WiFi and Bluetooth functionalities, and a familiar 40-pin header layout, alongside 4 USB interfaces and a GbE RJ45 port.

Characterized by its robust performance, versatile features, and remarkable image processing capabilities, stands as an exemplary SBC development platform for professionals within the embedded and computing industries. Equipped with 8GB eMMC flash storage, high-performance decoding and encoding capabilities, and an array of interface options, it caters to a wide spectrum of application domains, including media processing, IoT, and entertainment. Whether catering to novices or seasoned developers, the BPI-M4 Berry development board offers an ideal toolset for realizing creative visions and project objectives.

Banana Pi M4-Berry banner 3.jpg

Key Features

  • Allwinner H618, Quad-core ARM Cortex™-A53 processor
  • ARM Mali G31 GPU
  • WIFI & Bluetooth
  • 2G LPDDR4 RAM
  • 8G eMMC flash memory
  • 1x USB2.0 Type-C OTG, 5V power supply
  • 4x USB2.0 Type-A
  • 1x HDMI 2.0a
  • 1x 3.5mm Audio & TVE jack socket
  • 1x GbE Ethernet port

Hardware

Hardware interface

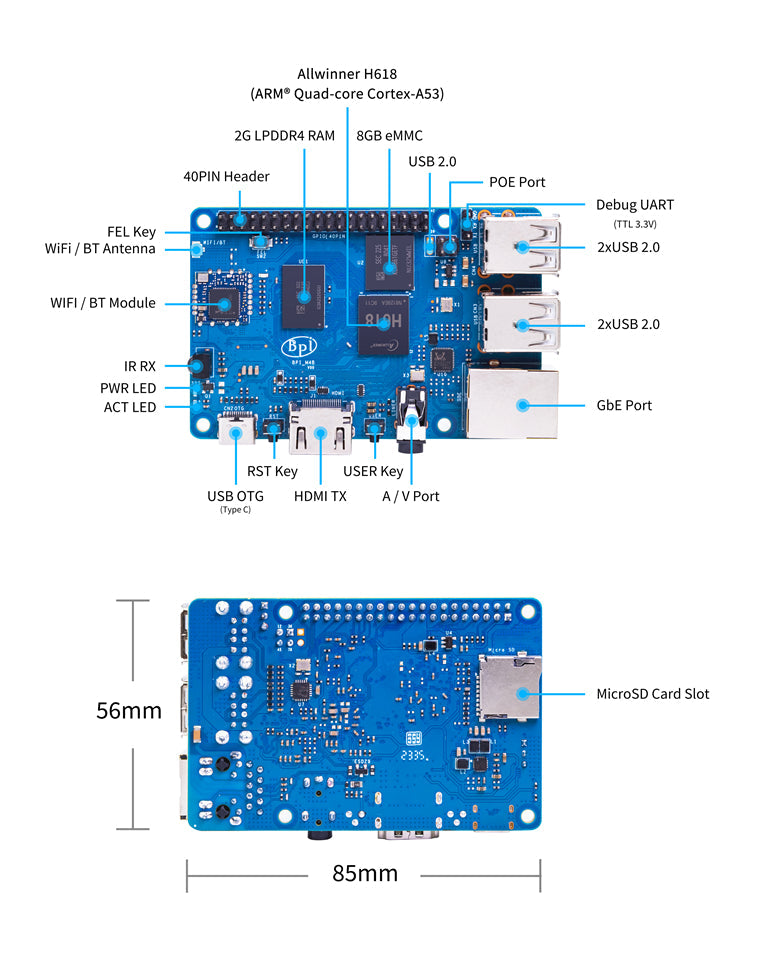

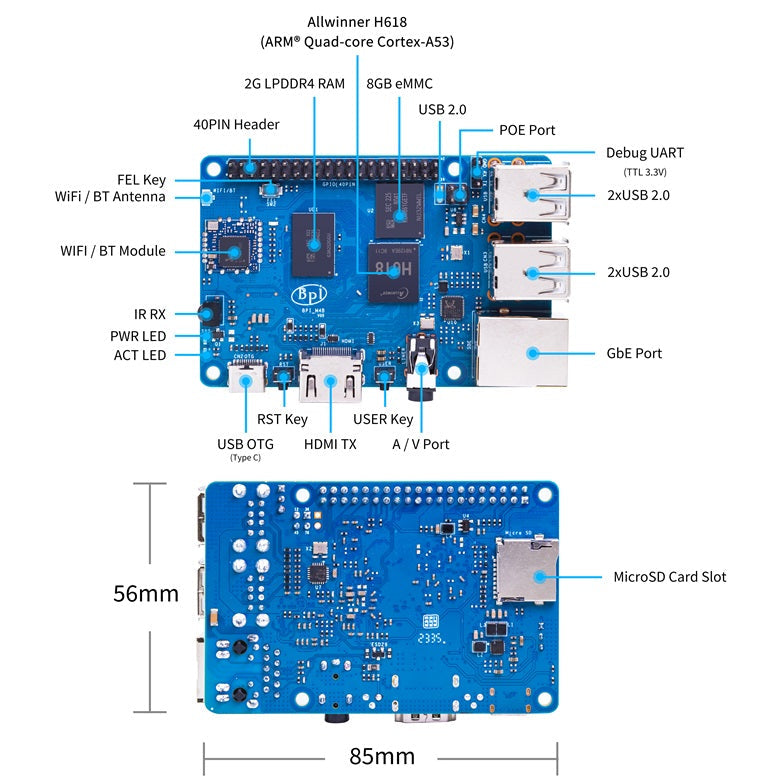

BPI-M4 Berry interface.jpg

BPI-M4 Berry VS Raspberry Pi 4b

module Raspberry Pi 4B Banana Pi BPI-M4 Berry
CPU 1.5GHz Quad-Core BroadcomBCM2711(Cortex A72) H618,64 Bit Cortex™-A53 Quad-Core
GPU 500 MHz VideoCore Vl ARM Mali G31 GPU
Memory 1-4GB DDR4 2GB LPDDR4(up to 4G)
Onboard Storage MicroSD (TF) card MicroSD (TF) card / MMC card slot ,eMMC 8GB
Network 10/100/1000 Ethernet 10/100/1000 Ethernet
Onboard WIFI &BT IEEE 802.11a/b/g/n/ac & BT5.0 IEEE 802.11a/b/g/n/ac & BT4.2
Display HDMI HDMI
Camera CSI N/A
Video Outputs 2*Micro-HDMI HDMI 2.0a 4K@60fps
Audio Output 3.5 mm Jack and HDM 3.5 mm Jack and HDMI
Audio In N/A N/A
GPIO 40-PIN: PWM,GPIO,UART,I²C bus,I²S bus,SPI bus,+3.3v,+5v,ground. CAN bus 40-PIN: PWM,GPIO,UART,I²C bus,I²S bus,SPI bus,+3.3v,+5v,ground. CAN bus
Remote N/A IR reciever
USB Ports 2*USB3.0+2USB2.0 2 * USB 2.0 1* USB Otg
Buttons N/A Reset button, User button, Uboot button
LED Power led Status led Power led Status led Wifi led
Power DC 5V/3A DC 5V/2A
Board Size 88mmx58mm 88mmx58mm

Technical specifications are loading…
